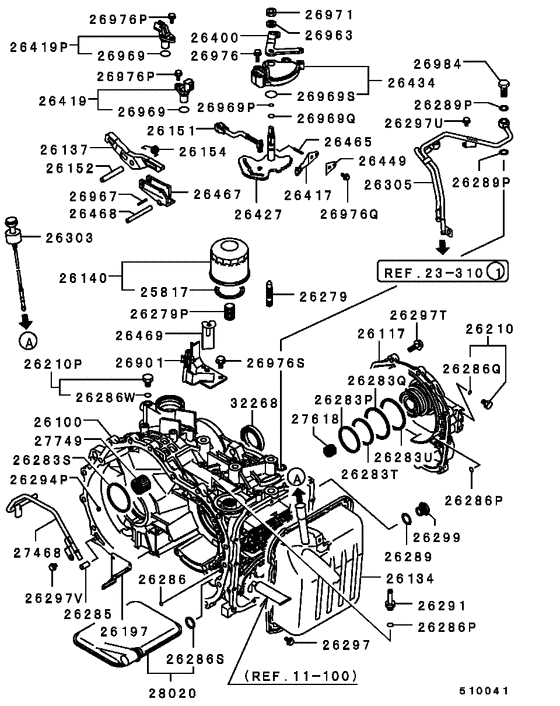

A/t case (5-SPEED (T/M CASE)) Diagram Mitsubishi FTO
- Year
- 1997 - 2000
- Sales region
- Japan
- Note
- GP VERSION-R2(MIVEC),5FA/T
- drive
- 2WD
- transmission
- 5FA/T
- grade
- GP VERSION-R2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25817
|
25817
MD622034 GASKET, T/M OIL FILTER |
MD622034 |
US $7.70 |
||
|
26100
|
26100
MD761807 CASE, A/T |
MD761807 |
US $1,742.40 |
||
|
26100
|
26100
MR430592 CASE, A/T |
MR430592 |
US $1,728 |
||
|
26117
|
26117
MD763209 COVER, A/T CASE, RR |
MD763209 |
US $688.69 |
||
|
26134
|
26134
MD758639 OIL PAN, A/T CASE |
MD758639 |
US $85.10 |
||
|
26137
|
26137
MD761307 PAWL, A/T CASE PARKING |
MD761307 |
US $71.78 |
||
|
26140
|
26140
MD752072 OIL FILTER ASSY, T/M |
MD752072 |
from US $34.01 |
||
|
26151
|
26151
MD760718 ROD, A/T PARKING PAWL |
MD760718 |
US $31.08 |
||
|
26152
|
26152
MD760619 SHAFT, A/T PARKING PAWL |
MD760619 |
US $5.92 |
||
|
26154
|
26154
MD761083 SPRING, A/T CASE PARKING PAWL |
MD761083 |
US $3.55 |
||
|
26197
|
26197
MD761255 OIL GUIDE, A/T CASE |
MD761255 |
US $9.47 |
||
|
26210
|
26210
MD707198 PLUG KIT, A/T CASE |
MD707198 |
US $5.48 |
||
|
26210P
|
26210P
MD757991
PLUG KIT, A/T CASE
|
MD757991 |
— | ||
|
26279
|
26279
MD751929 STUD, A/T CASE12x29.5 |
MD751929 |
US $4.51 |
||
|
26279P
|
26279P
MD192439 STUD, CYLINDER BLOCK20x31 |
MD192439 |
US $7.55 |
||
|
26283P
|
26283P
MD760146
SEAL RING, A/T CASE
|
MD760146 |
— | ||
| replacement | |||||
|
26283P
|
26283P
2721A067 SEAL RING, A/T CASE |
2721A067 |
from US $6.57 |
||
|
26283Q
|
26283Q
MD760147
SEAL RING, A/T CASE
|
MD760147 |
— | ||
| replacement | |||||
|
26283Q
|
26283Q
2791A047 SEAL RING, A/T OIL PUMP |
2791A047 |
from US $6.57 |
||
|
26283S
|
26283S
MD762223 SEAL RING, A/T CASE50.6 |
MD762223 |
US $8.88 |
||
|
26283T
|
26283T
MD760146
SEAL RING, A/T CASE
|
MD760146 |
— | ||
| replacement | |||||
|
26283T
|
26283T
2721A067 SEAL RING, A/T CASE |
2721A067 |
from US $6.57 |
||
|
26283U
|
26283U
MD760147
SEAL RING, A/T CASE
|
MD760147 |
— | ||
| replacement | |||||
|
26283U
|
26283U
2791A047 SEAL RING, A/T OIL PUMP |
2791A047 |
from US $6.57 |
||
|
26285
|
26285
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
26286
|
26286
MD707187
O-RING, A/T CASE
|
MD707187 |
— | ||
| replacement | |||||
|
26286
|
26286
2502A002 PLUG KIT, A/T CASE |
2502A002 |
US $2.46 |
||
|
26286P
|
26286P
MD707200
O-RING, OIL FILTER
|
MD707200 |
— | ||
| replacement | |||||
|
26286P
|
26286P
MR486844 O-RING, A/T CASE9.8 |
MR486844 |
from US $1.25 |
||
|
26286Q
|
26286Q
MD707187
O-RING, A/T CASE
|
MD707187 |
— | ||
| replacement | |||||
|
26286Q
|
26286Q
2502A002 PLUG KIT, A/T CASE |
2502A002 |
US $2.46 |
||
|
26286S
|
26286S
MD622023 O-RING, A/T CASE |
MD622023 |
from US $2.38 |
||
|
26286W
|
26286W
MD707603 O-RING, A/T CASE8 |
MD707603 |
US $3.11 |
||
| replacement | |||||
|
26286W
|
26286W
2781A005 O-RING, A/T CASE7.8 |
2781A005 |
US $3.11 |
||
|
26289
|
26289
MD000312 GASKET, PLUGD=18.2 |
MD000312 |
from US $1.31 |
||
|
26289P
|
26289P
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
26294P
|
26294P
MD750787 CAP, A/T CASE7.2 |
MD750787 |
US $2.96 |
||
|
26297
|
26297
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
26297
|
26297
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
26297T
|
26297T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
26297U
|
26297U
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
26297U
|
26297U
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
26297V
|
26297V
MF140201 BOLT, ENG RR PLATEFlange,6x8 |
MF140201 |
from US $0.72 |
||
|
26299
|
26299
MB569372 PLUG, RR AXLE HOUSINGMagnet |
MB569372 |
US $26.13 |
||
| replacement | |||||
|
26299
|
26299
MB569390 PLUG KIT, FR DIFF |
MB569390 |
from US $6.14 |
||
|
26303
|
26303
MD763339
GAUGE, A/T OIL LEVEL
|
MD763339 |
— | ||
| replacement | |||||
|
26303
|
26303
MN168612 GAUGE, A/T OIL LEVEL |
MN168612 |
from US $23.99 |
||
|
26305
|
26305
MD761328 TUBE, A/T OIL COOLER FEED |
MD761328 |
US $38.30 |
||
|
26400
|
26400
MD761677 LEVER, A/T MANUAL CONTROL |
MD761677 |
US $11.84 |
||
| replacement | |||||
|
26400
|
26400
2781A001 LEVER, A/T MANUAL CONTROL |
2781A001 |
US $11.84 |
||
|
26417
|
26417
MD759093 DETENT, A/T MANUAL CONTROL SHAFT |
MD759093 |
US $22.94 |
||
|
26417
|
26417
MR515066 DETENT, A/T MANUAL CONTROL SHAFT |
MR515066 |
US $14.36 |
||
|
26419
|
26419
MD759163
SENSOR, A/T SPEED
|
MD759163 |
— | ||
| replacements | |||||
|
26419
|
26419
8651A111
SENSOR, A/T SPEED
|
8651A111 |
— | ||
|
26419
|
26419
8651A027 SENSOR, A/T SPEED |
8651A027 |
from US $83.83 |
||
|
26419P
|
26419P
MD759164
SENSOR, A/T SPEED
|
MD759164 |
— | ||
| replacements | |||||
|
26419P
|
26419P
8651A109
SENSOR, A/T SPEED
|
8651A109 |
— | ||
|
26419P
|
26419P
MR518300 SENSOR, A/T SPEED |
MR518300 |
from US $82.76 |
||
|
26427
|
26427
MD756869 SHAFT, A/T MANUAL CONTROL LEVER |
MD756869 |
US $39.96 |
||
|
26434
|
26434
MD757783
SWITCH, A/T CASE INHIBITOR
|
MD757783 |
— | ||
| replacement | |||||
|
26434
|
26434
8604A011 SWITCH, A/T CASE INHIBITOR |
8604A011 |
from US $81.22 |
||
|
26465
|
26465
MD713080 ROLLER, A/T PARKING SHAFT |
MD713080 |
US $2.46 |
||
|
26467
|
26467
MD755083 SUPPORT, A/T PARKING PAWL ROD |
MD755083 |
US $18.50 |
||
|
26468
|
26468
MD759487 SHAFT, A/T PARKING ROLLER SUPPORT |
MD759487 |
US $6.51 |
||
|
26469
|
26469
MD760601 BRACKET, A/T HARNESS |
MD760601 |
US $6.81 |
||
|
26901
|
26901
MD761976 BRACKET, A/T CONTROL CABLE SUPPORT |
MD761976 |
US $70.30 |
||
|
26963
|
26963
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
26967
|
26967
MF472540 PIN, SPARE TIRE CARRIERSpring,3x25 |
MF472540 |
US $1.48 |
||
|
26969
|
26969
MD622021 O-RING, A/T CASE |
MD622021 |
from US $1.97 |
||
|
26969P
|
26969P
MD726966 O-RING, A/T CONTROL EQUIP8.2 |
MD726966 |
from US $1.29 |
||
|
26969Q
|
26969Q
MD707200
O-RING, OIL FILTER
|
MD707200 |
— | ||
| replacement | |||||
|
26969Q
|
26969Q
MR486844 O-RING, A/T CASE9.8 |
MR486844 |
from US $1.25 |
||
|
26969S
|
26969S
MD622019 O-RING, A/T CONTROL EQUIP |
MD622019 |
US $7.10 |
||
|
26971
|
26971
MF430726 NUT, FLYWHEEL HOUSINGJam,10 |
MF430726 |
from US $1.01 |
||
|
26976
|
26976
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
26976P
|
26976P
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
26976Q
|
26976Q
MS101202 BOLT, A/T VALVE BODY INRFlange,5x12 |
MS101202 |
US $2.60 |
||
|
26976S
|
26976S
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
26984
|
26984
MD757705
EYEBOLT, A/T
|
MD757705 |
— | ||
|
27468
|
27468
MD761678 PIPE, A/T REDUCTION BRAKE OIL |
MD761678 |
US $14.50 |
||
|
27618
|
27618
MD752039 BEARING, A/T INPUT SHAFT, RRNeedle,22 |
MD752039 |
US $9.03 |
||
|
27618
|
27618
MR446687 BEARING, A/T INPUT SHAFT, RRNeedle,22 |
MR446687 |
US $8.14 |
||
|
27749
|
27749
MD761017 BEARING, A/T INPUT SHAFT, RRNeedle,26 |
MD761017 |
US $19.24 |
||
|
28020
|
28020
MD758691
OIL FILTER, A/T VALVE BODY
|
MD758691 |
— | ||
| replacement | |||||
|
28020
|
28020
MD758684 OIL FILTER, A/T VALVE BODY |
MD758684 |
US $53.78 |
||
|
32268
|
32268
MD755526 OIL SEAL,RR DIFF SIDE BEARING,RH |
MD755526 |
from US $4.41 |
||
|
32268
|
32268
MD755904
OIL SEAL, T/M FR DIFF CASE
|
MD755904 |
— | ||
| replacement | |||||
|
32268
|
32268
MD755526 OIL SEAL,RR DIFF SIDE BEARING,RH |
MD755526 |
from US $4.41 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
23 310
|
A/t oil cooler & tube
23 310
|
||||
|
23 310
|
A/t oil cooler & tube
23 310
|
||||
