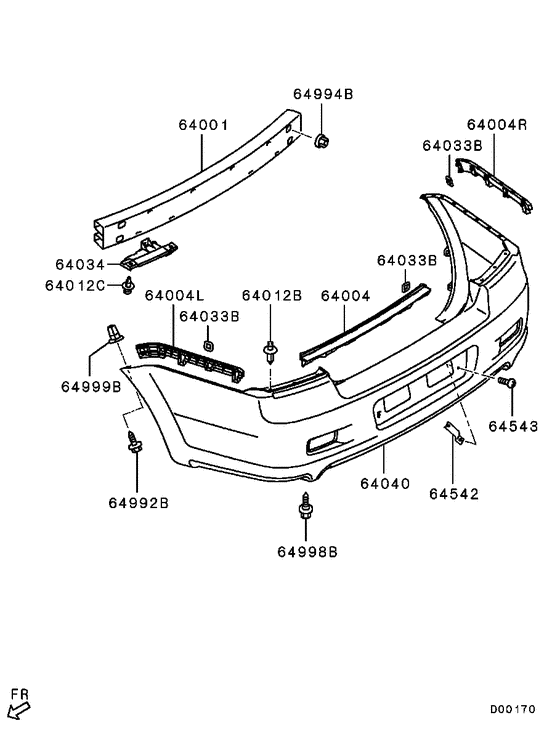

Rear bumper & support (ALL) Diagram Mitsubishi GALANT
- Year
- 2006 - 2007
- Sales region
- EUR/MMNA
- Note
- ES,S4FA/T RUSSIA
- transmission
- S4FA/T
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64001
|
64001
MN181525
REINFORCEMENT,RR BUMPER
|
MN181525 |
— | ||
|
64004
|
64004
6410A030
BRACKET,RR BUMPER FACE SUPPORT
|
6410A030 |
— | ||
|
64004L
|
64004L
MR987369
BRACKET,RR BUMPER FACE SUPPORT,LH
|
MR987369 |
— | ||
|
64004R
|
64004R
MR987370
BRACKET,RR BUMPER FACE SUPPORT,RH
|
MR987370 |
— | ||
|
64012B
|
64012B
MB619582 CLIP, FR DOOR TRIM |
MB619582 |
from US $1.37 |
||
|
64012C
|
64012C
MU000695
CLIP, FR BUMPER
|
MU000695 |
— | ||
| replacements | |||||
|
64012C
|
64012C
MU001220 CLIP, FR BUMPER |
MU001220 |
US $2.52 |
||
|
64012C
|
64012C
MU488006 CLIP, ENG ROOM COVER8 |
MU488006 |
from US $0.66 |
||
|
64033B
|
64033B
MR957979
PAD,RR BUMPER
|
MR957979 |
— | ||
|
64034
|
64034
MR982661 PLATE,RR BUMPER |
MR982661 |
US $5.42 |
||
|
64040
|
64040
6410A736
FACE,RR BUMPER
|
6410A736 |
— | ||
|
64542
|
64542
MB843781
PLATE,RR BUMPER
|
MB843781 |
— | ||
|
64543
|
64543
MB671725 SCREW, ROLL BAR |
MB671725 |
US $3.55 |
||
|
64992B
|
64992B
MS452357 SCREW, FR BUMPERTapping washer assembled,6x20 |
MS452357 |
from US $2.75 |
||
|
64994B
|
64994B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
64998B
|
64998B
MU140009 BOLT, FR BUMPERFlange,6x20 |
MU140009 |
from US $1.23 |
||
|
64999B
|
64999B
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
