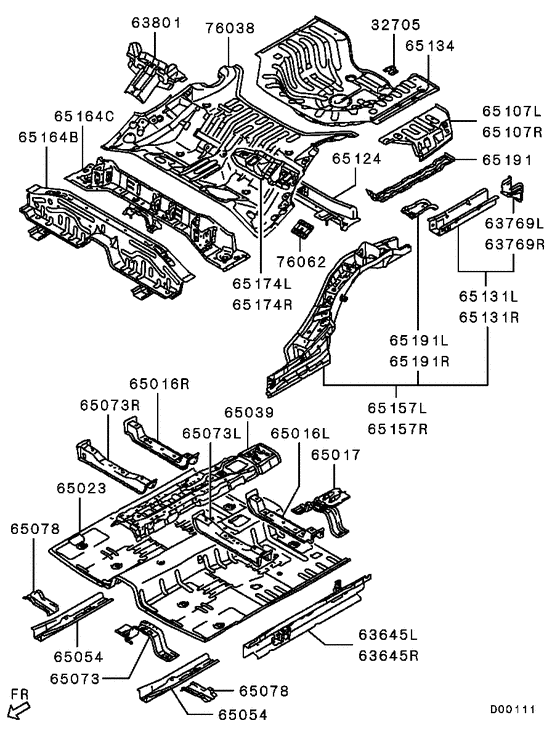

Floor Diagram Mitsubishi GALANT
- Year
- 2007 - 2009
- Sales region
- EUR/MMNA
- Note
- ES,S4FA/T RUSSIA
- transmission
- S4FA/T
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32705
|
32705
MN150474
BRACKET,SPARE TIRE
|
MN150474 |
— | ||
|
63645L
|
63645L
MN150155
SIDE SILL,FR FLOOR,INR LH
|
MN150155 |
— | ||
|
63645R
|
63645R
5253D774
SIDE SILL,FR FLOOR,INR RH
|
5253D774 |
— | ||
|
63769L
|
63769L
MN150165
GUSSET,RR FLOOR,RR LH
|
MN150165 |
— | ||
|
63769R
|
63769R
MN150166
GUSSET,RR FLOOR,RR RH
|
MN150166 |
— | ||
|
63801
|
63801
MN150279
EXTENSION,RR FLOOR PANEL
|
MN150279 |
— | ||
|
65016L
|
65016L
MN150159
CROSSMEMBER,FR FLOOR,RR LH
|
MN150159 |
— | ||
|
65016R
|
65016R
MN150160
CROSSMEMBER,FR FLOOR,RR RH
|
MN150160 |
— | ||
|
65017
|
65017
MN150273
CROSSMEMBER,FR FLOOR,RR CTR
|
MN150273 |
— | ||
|
65023
|
65023
5251B502
FLOOR,FR
|
5251B502 |
— | ||
|
65023
|
65023
MR972880
FLOOR,FR
|
MR972880 |
— | ||
|
65039
|
65039
5251B506
REINFORCEMENT,FR FLOOR BACKBONE
|
5251B506 |
— | ||
|
65039
|
65039
MN150271
REINFORCEMENT,FR FLOOR BACKBONE
|
MN150271 |
— | ||
|
65054
|
65054
5253C588
SIDEMEMBER,FR FLOOR
|
5253C588 |
— | ||
|
65073
|
65073
MN150272
CROSSMEMBER,FR FLOOR,FR
|
MN150272 |
— | ||
|
65073L
|
65073L
MN150157
CROSSMEMBER,FR FLOOR,FR LH
|
MN150157 |
— | ||
|
65073R
|
65073R
MN150158
CROSSMEMBER,FR FLOOR,FR RH
|
MN150158 |
— | ||
|
65078
|
65078
MN150270
REINFORCEMENT,FR FLOOR
|
MN150270 |
— | ||
|
65107L
|
65107L
MN150167
BRACE,RR FLOOR SIDE,LH
|
MN150167 |
— | ||
|
65107R
|
65107R
MN150168
BRACE,RR FLOOR SIDE,RH
|
MN150168 |
— | ||
|
65124
|
65124
MN150275
CROSSMEMBER,RR FLOOR
|
MN150275 |
— | ||
|
65131L
|
65131L
MN150163
EXTENSION,RR FLOOR SIDEMEMBER,LH
|
MN150163 |
— | ||
|
65131R
|
65131R
MN150164
EXTENSION,RR FLOOR SIDEMEMBER,RH
|
MN150164 |
— | ||
|
65134
|
65134
5251A679
FLOOR,RR
|
5251A679 |
— | ||
|
65157L
|
65157L
MN150161
SIDEMEMBER,RR FLOOR,LH
|
MN150161 |
— | ||
|
65157R
|
65157R
MN150162
SIDEMEMBER,RR FLOOR,RH
|
MN150162 |
— | ||
|
65164B
|
65164B
5253C595
CROSSMEMBER,RR FLOOR RR SEAT UNDER
|
5253C595 |
— | ||
|
65164C
|
65164C
MN150277
CROSSMEMBER,RR FLOOR RR SEAT UNDER
|
MN150277 |
— | ||
|
65174L
|
65174L
MN150169
BRACKET,CHILD RESTRAINT,LH
|
MN150169 |
— | ||
|
65174R
|
65174R
5251A676
BRACKET,CHILD RESTRAINT,RH
|
5251A676 |
— | ||
|
65191
|
65191
5251B481
REINFORCEMENT,RR FLOOR,RR
|
5251B481 |
— | ||
|
65191L
|
65191L
MN186357
REINFORCEMENT,RR FLOOR,RR LH
|
MN186357 |
— | ||
|
65191R
|
65191R
MN186358
REINFORCEMENT,RR FLOOR,RR RH
|
MN186358 |
— | ||
|
76038
|
76038
5251A678
FLOOR,RR SEAT UNDER
|
5251A678 |
— | ||
|
76038
|
76038
5251B441
FLOOR,RR SEAT UNDER
|
5251B441 |
— | ||
|
76062
|
76062
MN186336
REINFORCEMENT,RR SEAT BELT
|
MN186336 |
— |
