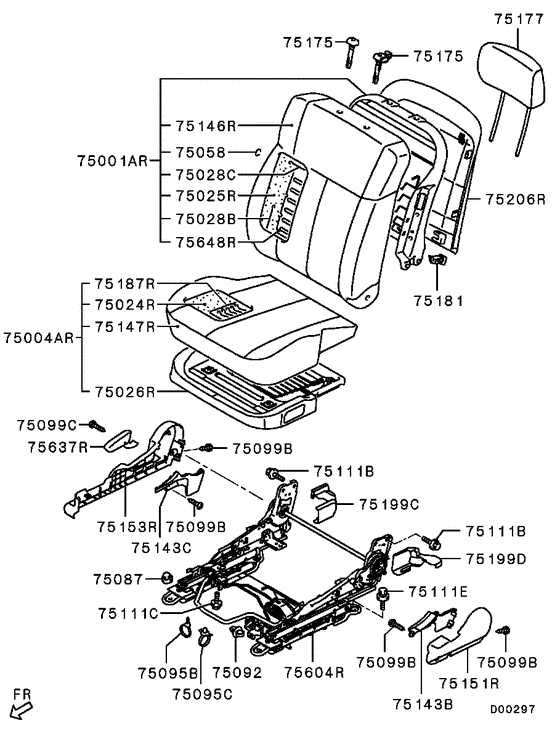

Front seat (RH) Diagram Mitsubishi GALANT
- Year
- 2007 - 2009
- Sales region
- EUR/MMNA
- Note
- ES,S4FA/T RUSSIA
- transmission
- S4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
6901A428XB
BACK ASSY,FR SEAT,RH
|
6901A428XB |
— | ||
|
75001AR
|
75001AR
6901B382XA
BACK ASSY,FR SEAT,RH
|
6901B382XA |
— | ||
|
75004AR
|
75004AR
MR986216XB
CUSHION ASSY,FR SEAT,RH
|
MR986216XB |
— | ||
|
75024R
|
75024R
MN121220
PAD,FR SEAT CUSHION,RH
|
MN121220 |
— | ||
|
75025R
|
75025R
6901A594
PAD,FR SEAT BACK,RH
|
6901A594 |
— | ||
|
75025R
|
75025R
6901B076
PAD,FR SEAT BACK,RH
|
6901B076 |
— | ||
|
75025R
|
75025R
MR986264
PAD,FR SEAT BACK,RH
|
MR986264 |
— | ||
|
75026R
|
75026R
MR595782
FRAME,FR SEAT CUSHION,RH
|
MR595782 |
— | ||
|
75028B
|
75028B
MR140202 WIRE, FR SEAT TRIMMING2.6x300 |
MR140202 |
US $1.48 |
||
|
75028C
|
75028C
MR140202 WIRE, FR SEAT TRIMMING2.6x300 |
MR140202 |
US $1.48 |
||
|
75058
|
75058
MR140172 RING, FR SEAT COVER |
MR140172 |
US $0.89 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75092
|
75092
MR562832
CLIP,FR SEAT
|
MR562832 |
— | ||
|
75095B
|
75095B
MB306583 BAND, GEARSHIFT LINK100 |
MB306583 |
US $2.37 |
||
|
75095C
|
75095C
MB953180 CLIP, WIRING, NO.2145.5 |
MB953180 |
US $2.05 |
||
|
75099B
|
75099B
MF455392 SCREW, HEADLAMPTapping,5x14 |
MF455392 |
US $2.60 |
||
|
75099B
|
75099B
MF455512 SCREW, SCUFF PLATETapping,5x14 |
MF455512 |
US $3.15 |
||
|
75099C
|
75099C
6979A208
SCREW,FR SEAT
|
6979A208 |
— | ||
|
75111B
|
75111B
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
75111C
|
75111C
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.01 |
||
|
75111E
|
75111E
MN121296 BOLT, FR SEATWasher assembled,10x32 |
MN121296 |
US $2.66 |
||
|
75143B
|
75143B
MR595766XA
COVER,FR SEAT SIDE SHIELD,INR
|
MR595766XA |
— | ||
|
75143C
|
75143C
MR595764XA
COVER,FR SEAT SIDE SHIELD,INR
|
MR595764XA |
— | ||
|
75146R
|
75146R
6901A382XC
COVER,FR SEAT BACK,RH
|
6901A382XC |
— | ||
|
75146R
|
75146R
6901B082XA
COVER,FR SEAT BACK,RH
|
6901B082XA |
— | ||
|
75147R
|
75147R
MR986242XD
COVER,FR SEAT CUSHION,RH
|
MR986242XD |
— | ||
|
75151R
|
75151R
MR595760XA
COVER,FR SEAT HINGE,RH
|
MR595760XA |
— | ||
|
75153R
|
75153R
MR595758XA
COVER,FR SEAT SIDE SHIELD,RH
|
MR595758XA |
— | ||
|
75175
|
75175
MN148711XB
GUIDE,FR SEAT HEADREST
|
MN148711XB |
— | ||
|
75175
|
75175
MN148712XB
GUIDE,FR SEAT HEADREST
|
MN148712XB |
— | ||
|
75175
|
75175
MR789325 GUIDE, FR SEAT HEADRESTW/lock |
MR789325 |
US $9.32 |
||
|
75175
|
75175
MR789326 GUIDE, FR SEAT HEADRESTW/o lock |
MR789326 |
US $9.32 |
||
|
75177
|
75177
6971A098XA
HEADREST,FR SEAT
|
6971A098XA |
— | ||
|
75177
|
75177
MR562576XF
HEADREST,FR SEAT
|
MR562576XF |
— | ||
|
75181
|
75181
MR306977 HOOK, FR SEAT |
MR306977 |
US $6.81 |
||
|
75187R
|
75187R
MR595780
HEATER,FR SEAT CUSHION,LH
|
MR595780 |
— | ||
|
75199C
|
75199C
MN121198XA
COVER,FR SEAT ANCHOR,RR
|
MN121198XA |
— | ||
|
75199D
|
75199D
MN121200XA
COVER,FR SEAT ANCHOR,RR
|
MN121200XA |
— | ||
|
75206R
|
75206R
MR595728XB
PANEL,FR SEAT BACK,LH
|
MR595728XB |
— | ||
|
75206R
|
75206R
MR793598 PANEL, FR SEAT BACK, LH |
MR793598 |
US $72.52 |
||
|
75604R
|
75604R
6921A058
ADJUSTER,FR SEAT SLIDE,RH
|
6921A058 |
— | ||
| replacement | |||||
|
75604R
|
75604R
6921A278
ADJUSTER,FR SEAT SLIDE,RH
|
6921A278 |
— | ||
|
75604R
|
75604R
6921A216
ADJUSTER,FR SEAT SLIDE,RH
|
6921A216 |
— | ||
|
75637R
|
75637R
MR793602 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR793602 |
US $10.06 |
||
|
75648R
|
75648R
MR524805
HEATER,FR SEAT BACK,LH
|
MR524805 |
— | ||
