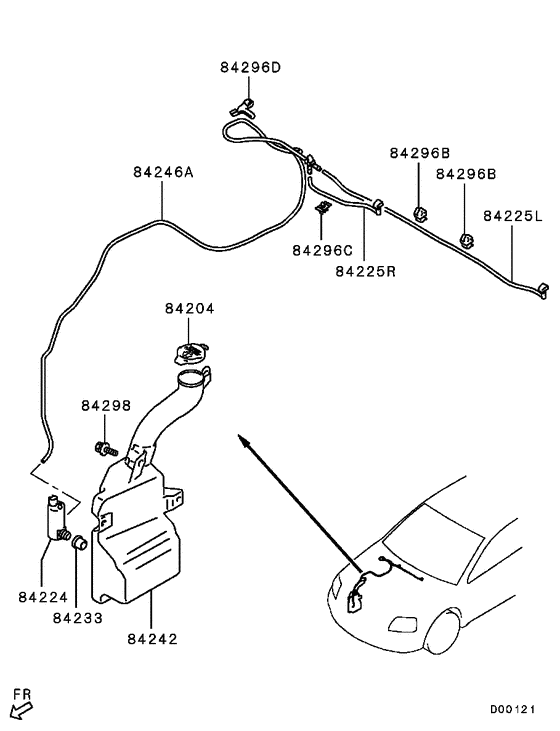

Windshield wiper & washer (WASHER) Diagram Mitsubishi GALANT
- Year
- 2007 - 2009
- Sales region
- EUR/MMNA
- Note
- ES,S4FA/T RUSSIA
- transmission
- S4FA/T
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84204
|
84204
MN169807 CAP,WINDSHIELD WASHER TANK FILLER |
MN169807 |
US $5.64 |
||
|
84224
|
84224
MR987401
MOTOR,WINDSHIELD WASHER
|
MR987401 |
— | ||
|
84225L
|
84225L
8265A127
NOZZLE,WINDSHIELD WASHER,LH
|
8265A127 |
— | ||
|
84225R
|
84225R
8265A128
NOZZLE,WINDSHIELD WASHER,RH
|
8265A128 |
— | ||
|
84233
|
84233
MN169808
GASKET,WINDSHIELD WASHER TANK INLET
|
MN169808 |
— | ||
|
84242
|
84242
MN169803
TANK,WINDSHIELD WASHER
|
MN169803 |
— | ||
|
84246A
|
84246A
MR971019
TUBE ASSY,WINDSHIELD WASHER
|
MR971019 |
— | ||
|
84296B
|
84296B
MU481132 CLIP, WINDSHIELD WASHER7 |
MU481132 |
from US $2.16 |
||
|
84296C
|
84296C
MU481137 CLIP, WINDSHIELD WASHER6x2 |
MU481137 |
US $7.39 |
||
|
84296C
|
84296C
MU481232 CLIP, WINDSHIELD WASHER7 |
MU481232 |
from US $1.64 |
||
|
84296D
|
84296D
MR361607 CLIP, WINDSHIELD WASHER |
MR361607 |
US $2.66 |
||
|
84298
|
84298
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
