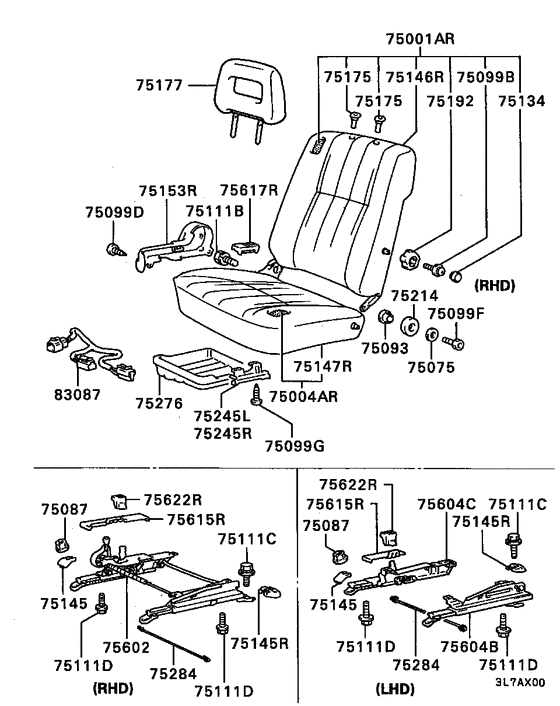

Front seat (RH) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- EL,5FM/T LHD
- transmission
- 5FM/T
- grade
- EL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB452110
BACK ASSY,FR SEAT,RH
|
MB452110 |
— | ||
|
75004AR
|
75004AR
MB452072
CUSHION ASSY,FR SEAT,RH
|
MB452072 |
— | ||
|
75004AR
|
75004AR
MB464922
CUSHION ASSY,FR SEAT,RH
|
MB464922 |
— | ||
|
75075
|
75075
MB190981 WASHER, FR SEAT6 |
MB190981 |
US $2.96 |
||
|
75087
|
75087
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75093
|
75093
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75099B
|
75099B
MF351466 SCREW, CRUISE CONTROL ELECTRICALSWasher assembled,5x12 |
MF351466 |
US $2.22 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099F
|
75099F
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099G
|
75099G
MF455390 SCREW, FUEL LINETapping,5x10 |
MF455390 |
US $2.60 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MB342638 BOLT, FR SEATWasher assembled,10x22 |
MB342638 |
US $3.85 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75134
|
75134
MB371779 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB371779 |
US $2.81 |
||
|
75134
|
75134
MB447220 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB447220 |
US $2.81 |
||
|
75145
|
75145
MB445587 COVER, FR SEAT ANCHOR |
MB445587 |
US $5.48 |
||
|
75145R
|
75145R
MB445584 COVER, FR SEAT ANCHOR, RH |
MB445584 |
US $5.62 |
||
|
75146R
|
75146R
MB459541
COVER,FR SEAT BACK,RH
|
MB459541 |
— | ||
|
75147R
|
75147R
MB459431
COVER,FR SEAT CUSHION,RH
|
MB459431 |
— | ||
|
75147R
|
75147R
MB465200
COVER,FR SEAT CUSHION,RH
|
MB465200 |
— | ||
|
75153R
|
75153R
MB445578 COVER, FR SEAT SIDE SHIELD, RH |
MB445578 |
US $25.16 |
||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75175
|
75175
MB446372
GUIDE, FR SEAT HEADREST
|
MB446372 |
— | ||
| replacement | |||||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75177
|
75177
MB451777
HEADREST,FR SEAT
|
MB451777 |
— | ||
|
75177
|
75177
MB469196
HEADREST,FR SEAT
|
MB469196 |
— | ||
|
75192
|
75192
MB446610 LEVER, FR SEAT LUMBAR SUPPORT |
MB446610 |
US $17.76 |
||
|
75192
|
75192
MB468605 LEVER, FR SEAT LUMBAR SUPPORT |
MB468605 |
US $17.76 |
||
|
75214
|
75214
MB389118 PROTECTOR, FR SEAT FRAME |
MB389118 |
US $4.74 |
||
|
75245L
|
75245L
MB371131 RAIL, FR SEAT UNDER BOX SLIDE, LH |
MB371131 |
US $17.76 |
||
|
75245R
|
75245R
MB371132 RAIL, FR SEAT UNDER BOX SLIDE, RH |
MB371132 |
US $17.76 |
||
|
75276
|
75276
MB158863 TRAY, FR SEAT UNDER |
MB158863 |
US $28.73 |
||
|
75284
|
75284
MB342243 WIRE, FR SEAT |
MB342243 |
US $3.40 |
||
|
75602
|
75602
MB452143
ADJUSTER,FR SEAT HEIGHT
|
MB452143 |
— | ||
|
75604B
|
75604B
MB445622 ADJUSTER, FR SEAT SLIDE, RH |
MB445622 |
US $111.74 |
||
|
75604C
|
75604C
MB323594 ADJUSTER, FR SEAT SLIDE |
MB323594 |
US $104.34 |
||
|
75615R
|
75615R
MB450844 COVER, FR SEAT SLIDE ADJUSTER, RH |
MB450844 |
US $8.14 |
||
|
75617R
|
75617R
MB445657 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB445657 |
US $11.40 |
||
|
75617R
|
75617R
MB469180 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB469180 |
US $11.40 |
||
|
75622R
|
75622R
MB445663 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB445663 |
US $10.06 |
||
|
75622R
|
75622R
MB469188 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB469188 |
US $10.06 |
||
