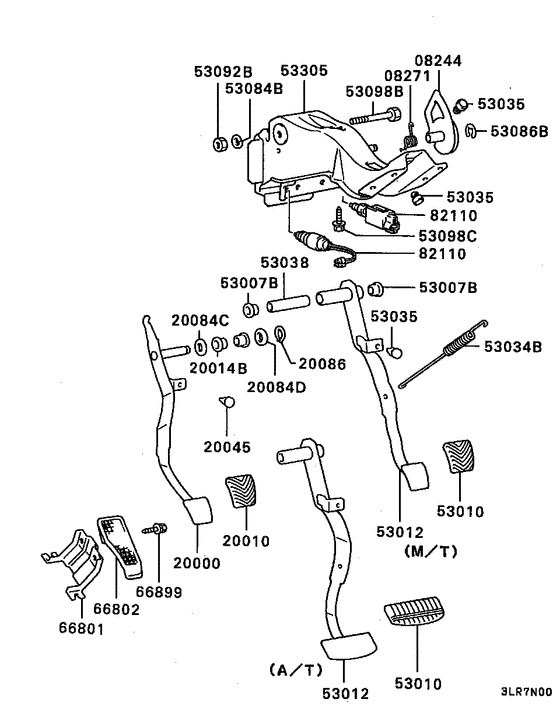

Brake & clutch pedal (RHD) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GLX,5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB316390
PEDAL,CLUTCH
|
MB316390 |
— | ||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014B
|
20014B
MB316047 BUSHING, CLUTCH PEDAL14x10 |
MB316047 |
US $3.40 |
||
|
20045
|
20045
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
20084C
|
20084C
MF451107 WASHER, FUEL FILLER LID LOCKINGWave,14 |
MF451107 |
US $3.28 |
||
|
20084D
|
20084D
MF450008 WASHER, ENG MOUNTINGPlain,14 |
MF450008 |
from US $1.01 |
||
|
20086
|
20086
MF522005 SNAP RING, CLUTCH PEDAL14 |
MF522005 |
US $2.22 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MB316392
PEDAL,BRAKE
|
MB316392 |
— | ||
|
53034B
|
53034B
MB316046 SPRING, BRAKE PEDAL RETURN |
MB316046 |
US $3.85 |
||
|
53035
|
53035
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
66801
|
66801
MB312959
BRACKET,FOOTREST
|
MB312959 |
— | ||
|
66802
|
66802
MB319163
FOOTREST
|
MB319163 |
— | ||
|
66899
|
66899
MS240055 BOLT, RR BUMPERWasher assembled,6x20 |
MS240055 |
US $2.07 |
||
|
82110
|
82110
MB113081 SWITCH, STOP LAMP |
MB113081 |
US $28.86 |
||
|
82110
|
82110
MB229024 SWITCH, STOP LAMP |
MB229024 |
from US $13 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
|
82110
|
82110
MB487644 SWITCH, STOP LAMP |
MB487644 |
US $39.96 |
