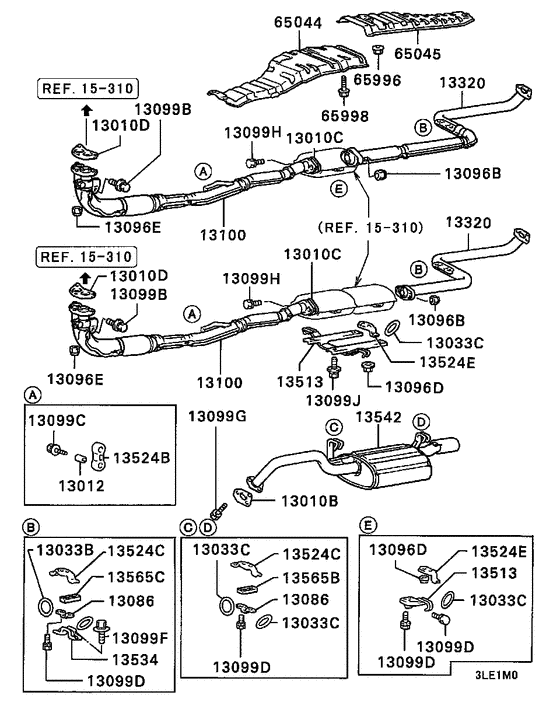

Exhaust pipe & muffler (WITH CATALYTIC CONVERTER) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GLX,5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB313110 GASKET, EXHAUST PIPE |
MB313110 |
US $5.92 |
||
|
13010D
|
13010D
MB009242
GASKET, EXHAUST PIPE
|
MB009242 |
— | ||
| replacement | |||||
|
13010D
|
13010D
MB687020 GASKET, EXHAUST PIPE |
MB687020 |
from US $8.07 |
||
|
13010D
|
13010D
MB431544 GASKET, EXHAUST PIPE |
MB431544 |
US $9.03 |
||
|
13012
|
13012
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13033B
|
13033B
MB313732 O-RING, EXHAUST PIPE34 |
MB313732 |
US $3.55 |
||
|
13033C
|
13033C
MB059522 O-RING, EXHAUST PIPE34 |
MB059522 |
US $14.21 |
||
|
13086
|
13086
MB059524
BRACKET, EXHAUST PIPE
|
MB059524 |
— | ||
| replacement | |||||
|
13086
|
13086
MB514746 BRACKET, EXHAUST PIPE |
MB514746 |
US $3.83 |
||
|
13096D
|
13096D
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
13096E
|
13096E
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13099B
|
13099B
MF244884 BOLT, ENG RR MOUNTINGWasher assembled,10x35 |
MF244884 |
from US $1.37 |
||
|
13099C
|
13099C
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099C
|
13099C
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099D
|
13099D
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099F
|
13099F
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
13099G
|
13099G
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
13099G
|
13099G
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13100
|
13100
MB376440
PIPE,EXHAUST,FR
|
MB376440 |
— | ||
|
13100
|
13100
MB431975
PIPE,EXHAUST,FR
|
MB431975 |
— | ||
|
13513
|
13513
MB376216 HANGER, EXHAUST MUFFLER |
MB376216 |
US $13.91 |
||
|
13524B
|
13524B
MB252856 HANGER, CATALYTIC CONVERTER |
MB252856 |
US $9.92 |
||
|
13524C
|
13524C
MB156319
HANGER, EXHAUST MUFFLER
|
MB156319 |
— | ||
| replacement | |||||
|
13524C
|
13524C
MB548658 HANGER, EXHAUST MUFFLER |
MB548658 |
US $9.03 |
||
|
13534
|
13534
MB376027 HOOK, EXHAUST MUFFLER HANGER O-RING |
MB376027 |
US $20.72 |
||
|
13542
|
13542
MB376092
MUFFLER,EXHAUST MAIN
|
MB376092 |
— | ||
|
13542
|
13542
MB548455 MUFFLER, EXHAUST MAIN |
MB548455 |
US $412.05 |
||
|
13565B
|
13565B
MB059523
STOPPER, EXHAUST MUFFLER HANGER BRACKET
|
MB059523 |
— | ||
| replacement | |||||
|
13565B
|
13565B
MB111791 STOPPER, EXHAUST MUFFLER HANGER BRACKET |
MB111791 |
US $3.28 |
||
|
13565C
|
13565C
MB111791 STOPPER, EXHAUST MUFFLER HANGER BRACKET |
MB111791 |
US $3.28 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
