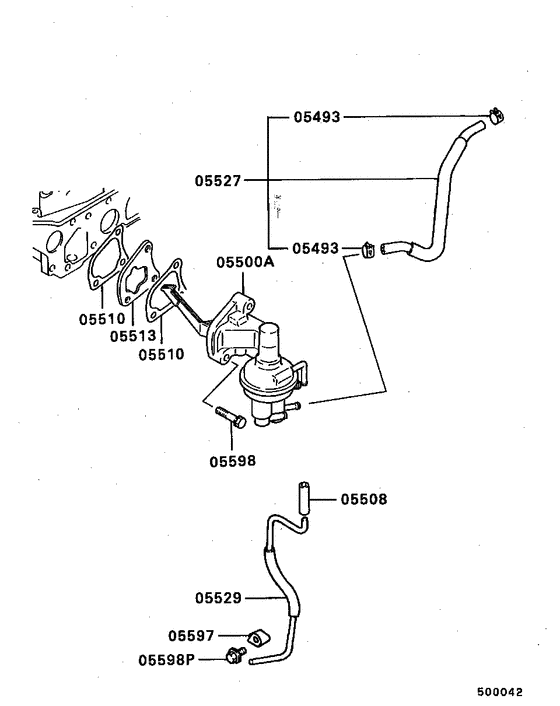

Fuel Pump (ALL) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GLX,5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05493
|
05493
MS660162 CLIP, FUEL TANKD=11 |
MS660162 |
US $2.81 |
||
|
05493
|
05493
MS660236 CLIPD=11 |
MS660236 |
from US $1.44 |
||
|
05500A
|
05500A
MD034060 FUEL PUMP ASSY |
MD034060 |
US $180.56 |
||
|
05500A
|
05500A
MD034358
FUEL PUMP ASSY
|
MD034358 |
— | ||
| replacement | |||||
|
05500A
|
05500A
MD175165
FUEL PUMP ASSY
|
MD175165 |
— | ||
|
05508
|
05508
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05510
|
05510
MD008933
GASKET, FUEL PUMP
|
MD008933 |
— | ||
| replacement | |||||
|
05510
|
05510
MD190928 GASKET, FUEL PUMP HOLE COVER |
MD190928 |
US $4.51 |
||
|
05513
|
05513
MD006242 INSULATOR, FUEL PUMP MOUNTING |
MD006242 |
US $8.21 |
||
|
05527
|
05527
MD041263 HOSE KIT, FUEL PUMP FUEL FEED |
MD041263 |
US $11.40 |
||
|
05529
|
05529
MD096694 TUBE, FUEL PUMP BREATHER |
MD096694 |
US $17.02 |
||
|
05597
|
05597
MD109231 CLAMP, FUEL PUMP |
MD109231 |
US $6.22 |
||
|
05597
|
05597
MD115839 CLAMP, FUEL PUMP |
MD115839 |
US $15.54 |
||
|
05598
|
05598
MF240060 BOLT, FUEL PUMPWasher assembled,8x38 |
MF240060 |
US $2.52 |
||
|
05598P
|
05598P
MF140056 BOLT, ENG BREATHERFlange,10x16 |
MF140056 |
US $1.37 |
||
