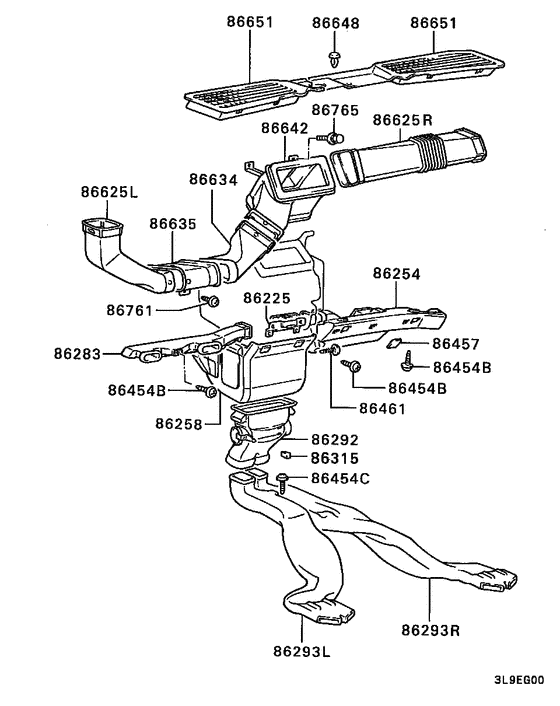

Ventilation & duct (DUCT REAR VENTILATION,ETC.) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GLX,5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86225
|
86225
MB332722
BRACKET,HEATER COVER
|
MB332722 |
— | ||
|
86225
|
86225
MB332733
BRACKET,HEATER COVER
|
MB332733 |
— | ||
|
86254
|
86254
MB448941
COVER,HEATER UNDER
|
MB448941 |
— | ||
|
86254
|
86254
MB448942
COVER,HEATER UNDER
|
MB448942 |
— | ||
|
86258
|
86258
MB448943
COVER,HEATER SIDE BLIND
|
MB448943 |
— | ||
|
86258
|
86258
MB448944
COVER,HEATER SIDE BLIND
|
MB448944 |
— | ||
|
86258
|
86258
MB448945
COVER,HEATER SIDE BLIND
|
MB448945 |
— | ||
|
86258
|
86258
MB448946
COVER,HEATER SIDE BLIND
|
MB448946 |
— | ||
|
86283
|
86283
MB298393
DUCT,LAP HEATER
|
MB298393 |
— | ||
|
86292
|
86292
MB379813
DUCT,FOOT HEATER
|
MB379813 |
— | ||
|
86292
|
86292
MB379815
DUCT,RR HEATER,FR
|
MB379815 |
— | ||
|
86292
|
86292
MB438117 DUCT,RR HEATER,FR |
MB438117 |
US $34.04 |
||
|
86293L
|
86293L
MB298391 DUCT, RR HEATER, RR |
MB298391 |
US $48.10 |
||
|
86293L
|
86293L
MB438118 DUCT, RR HEATER, RR LH |
MB438118 |
US $61.42 |
||
|
86293R
|
86293R
MB298662 DUCT, RR HEATER, RR |
MB298662 |
US $60.68 |
||
|
86293R
|
86293R
MB438119 DUCT, RR HEATER, RR RH |
MB438119 |
US $61.42 |
||
|
86315
|
86315
MB445735 KNOB, CTR PILLAR VENTILATOR |
MB445735 |
US $6.22 |
||
|
86315
|
86315
MB445736 KNOB, CTR PILLAR VENTILATOR |
MB445736 |
US $5.77 |
||
|
86454B
|
86454B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
86454C
|
86454C
MS450158 SCREW, EMISSION SOLENOID VALVETapping,5x20 |
MS450158 |
US $2.07 |
||
|
86457
|
86457
MB380062 PLUG, HEATER DUCT |
MB380062 |
US $3.85 |
||
|
86457
|
86457
MB380063 PLUG, HEATER DUCT |
MB380063 |
US $3.85 |
||
|
86461
|
86461
MB189333 CLIP, SCUFF PLATE |
MB189333 |
US $2.46 |
||
|
86625L
|
86625L
MB298384
DUCT,FR SIDE VENTILATOR,LH
|
MB298384 |
— | ||
|
86625R
|
86625R
MB298388
DUCT,FR SIDE VENTILATOR,RH
|
MB298388 |
— | ||
|
86634
|
86634
MB298386
DUCT,VENTILATOR JOINT,INR
|
MB298386 |
— | ||
|
86635
|
86635
MB332417
DUCT,VENTILATOR JOINT
|
MB332417 |
— | ||
|
86642
|
86642
MB298382
DUCT,VENTILATOR AIR DISTRIBUTION
|
MB298382 |
— | ||
|
86648
|
86648
MS470073 CLIP, ENG AIR INTAKE LINE6.8x14.5 |
MS470073 |
from US $2.67 |
||
|
86651
|
86651
MB298880
GARNISH,VENTILATOR AIR INLET
|
MB298880 |
— | ||
|
86651
|
86651
MB298882
GARNISH,VENTILATOR AIR INLET
|
MB298882 |
— | ||
|
86761
|
86761
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
86765
|
86765
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
