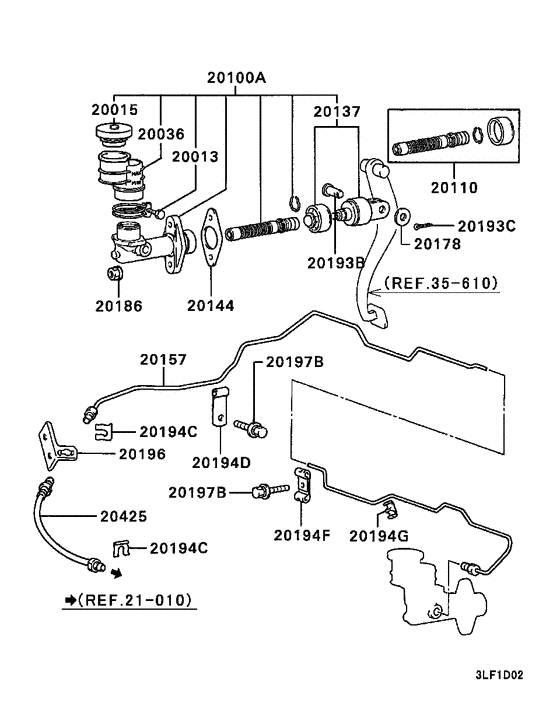

Clutch control (HYDRAULIC TYPE..LHD) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GL(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20013
|
20013
MB012155 BAND, CLUTCH FLUID RESERVOIR |
MB012155 |
US $6.02 |
||
|
20015
|
20015
MA143774
CAP, CLUTCH FLUID RESERVOIR
|
MA143774 |
— | ||
| replacement | |||||
|
20015
|
20015
MA161577
CAP, CLUTCH FLUID RESERVOIR
|
MA161577 |
— | ||
|
20036
|
20036
MB012574
RESERVOIR, CLUTCH FLUID
|
MB012574 |
— | ||
|
20100A
|
20100A
MB012573
CYLINDER ASSY,CLUTCH MASTER
|
MB012573 |
— | ||
|
20110
|
20110
MB012161 CYLINDER KIT, CLUTCH MASTER |
MB012161 |
from US $64.68 |
||
|
20137
|
20137
MB012543 PUSH ROD, CLUTCH M/CYL |
MB012543 |
US $22.94 |
||
|
20144
|
20144
MB012077 SEAL, CLUTCH M/CYL |
MB012077 |
from US $1.50 |
||
|
20157
|
20157
MB012294
TUBE,CLUTCH M/CYL
|
MB012294 |
— | ||
|
20178
|
20178
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20193B
|
20193B
MF473490 PIN, CLUTCH M/CYLClevis,10x20 |
MF473490 |
US $2.66 |
||
|
20193C
|
20193C
MF472042 PIN, CLUTCH PEDALSplit,2x30 |
MF472042 |
US $0.96 |
||
|
20194D
|
20194D
MB012105 CLIP, CLUTCH M/CYL |
MB012105 |
US $4.74 |
||
|
20194F
|
20194F
MB012312
CLIP,CLUTCH M/CYL
|
MB012312 |
— | ||
|
20194G
|
20194G
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
20196
|
20196
MB012274 BRACKET, CLUTCH M/CYL |
MB012274 |
US $10.66 |
||
|
20197B
|
20197B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
20425
|
20425
MB012275 HOSE, CLUTCH RELEASE CYLINDER270 |
MB012275 |
US $39.96 |
||
|
20425
|
20425
MB322636 HOSE, CLUTCH RELEASE CYLINDER250 |
MB322636 |
US $30.34 |
||
|
