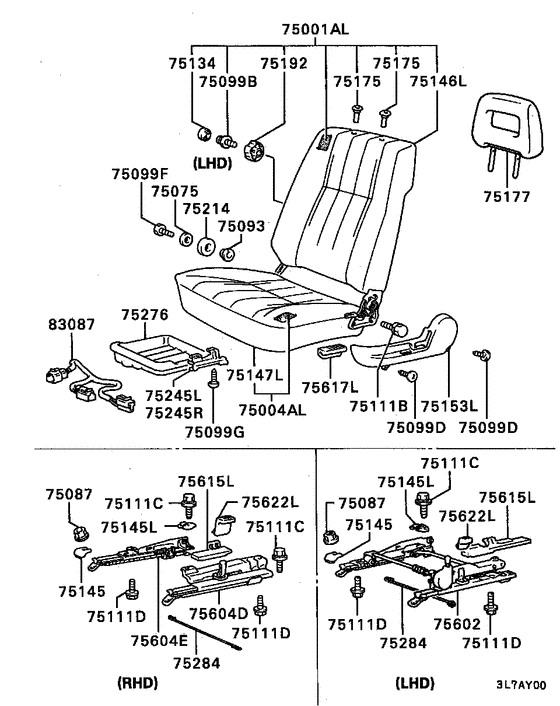

Front seat (LH) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GL(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB452101
BACK ASSY,FR SEAT,LH
|
MB452101 |
— | ||
|
75001AL
|
75001AL
MB452102
BACK ASSY,FR SEAT,LH
|
MB452102 |
— | ||
|
75001AL
|
75001AL
MB452688
BACK ASSY,FR SEAT,LH
|
MB452688 |
— | ||
|
75001AL
|
75001AL
MB452689
BACK ASSY,FR SEAT,LH
|
MB452689 |
— | ||
|
75004AL
|
75004AL
MB452063
CUSHION ASSY,FR SEAT,LH
|
MB452063 |
— | ||
|
75004AL
|
75004AL
MB452064
CUSHION ASSY,FR SEAT,LH
|
MB452064 |
— | ||
|
75004AL
|
75004AL
MB452646
CUSHION ASSY,FR SEAT,LH
|
MB452646 |
— | ||
|
75004AL
|
75004AL
MB452647
CUSHION ASSY,FR SEAT,LH
|
MB452647 |
— | ||
|
75004AL
|
75004AL
MB464913
CUSHION ASSY,FR SEAT,LH
|
MB464913 |
— | ||
|
75004AL
|
75004AL
MB464914
CUSHION ASSY,FR SEAT,LH
|
MB464914 |
— | ||
|
75004AL
|
75004AL
MB464931
CUSHION ASSY,FR SEAT,LH
|
MB464931 |
— | ||
|
75004AL
|
75004AL
MB464932
CUSHION ASSY,FR SEAT,LH
|
MB464932 |
— | ||
|
75075
|
75075
MB190981 WASHER, FR SEAT6 |
MB190981 |
US $2.96 |
||
|
75087
|
75087
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75093
|
75093
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75099B
|
75099B
MF351466 SCREW, CRUISE CONTROL ELECTRICALSWasher assembled,5x12 |
MF351466 |
US $2.22 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099F
|
75099F
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099G
|
75099G
MF455390 SCREW, FUEL LINETapping,5x10 |
MF455390 |
US $2.60 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MB342638 BOLT, FR SEATWasher assembled,10x22 |
MB342638 |
US $3.85 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75134
|
75134
MB371779 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB371779 |
US $2.81 |
||
|
75134
|
75134
MB447220 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB447220 |
US $2.81 |
||
|
75134
|
75134
MB447221 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB447221 |
US $2.81 |
||
|
75145
|
75145
MB445587 COVER, FR SEAT ANCHOR |
MB445587 |
US $5.48 |
||
|
75145
|
75145
MB445588 COVER, FR SEAT ANCHOR |
MB445588 |
US $5.48 |
||
|
75145L
|
75145L
MB445581 COVER, FR SEAT ANCHOR, LH |
MB445581 |
US $5.62 |
||
|
75145L
|
75145L
MB445582 COVER, FR SEAT ANCHOR, LH |
MB445582 |
US $5.62 |
||
|
75146L
|
75146L
MB459532
COVER,FR SEAT BACK,LH
|
MB459532 |
— | ||
|
75146L
|
75146L
MB459533
COVER,FR SEAT BACK,LH
|
MB459533 |
— | ||
|
75146L
|
75146L
MB459568
COVER,FR SEAT BACK,LH
|
MB459568 |
— | ||
|
75146L
|
75146L
MB459569
COVER,FR SEAT BACK,LH
|
MB459569 |
— | ||
|
75147L
|
75147L
MB459422
COVER,FR SEAT CUSHION,LH
|
MB459422 |
— | ||
|
75147L
|
75147L
MB459423
COVER,FR SEAT CUSHION,LH
|
MB459423 |
— | ||
|
75147L
|
75147L
MB459458
COVER,FR SEAT CUSHION,LH
|
MB459458 |
— | ||
|
75147L
|
75147L
MB459459
COVER,FR SEAT CUSHION,LH
|
MB459459 |
— | ||
|
75147L
|
75147L
MB465191
COVER,FR SEAT CUSHION,LH
|
MB465191 |
— | ||
|
75147L
|
75147L
MB465192
COVER,FR SEAT CUSHION,LH
|
MB465192 |
— | ||
|
75147L
|
75147L
MB465209
COVER,FR SEAT CUSHION,LH
|
MB465209 |
— | ||
|
75147L
|
75147L
MB465210
COVER,FR SEAT CUSHION,LH
|
MB465210 |
— | ||
|
75153L
|
75153L
MB452123
COVER,FR SEAT SIDE SHIELD,LH
|
MB452123 |
— | ||
|
75153L
|
75153L
MB452124
COVER,FR SEAT SIDE SHIELD,LH
|
MB452124 |
— | ||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75175
|
75175
MB446372
GUIDE, FR SEAT HEADREST
|
MB446372 |
— | ||
| replacement | |||||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75175
|
75175
MB446373 GUIDE, FR SEAT HEADRESTW/lock |
MB446373 |
US $9.62 |
||
|
75177
|
75177
MB451777
HEADREST,FR SEAT
|
MB451777 |
— | ||
|
75177
|
75177
MB451779
HEADREST,FR SEAT
|
MB451779 |
— | ||
|
75177
|
75177
MB469196
HEADREST,FR SEAT
|
MB469196 |
— | ||
|
75177
|
75177
MB469205
HEADREST,FR SEAT
|
MB469205 |
— | ||
|
75192
|
75192
MB446610 LEVER, FR SEAT LUMBAR SUPPORT |
MB446610 |
US $17.76 |
||
|
75192
|
75192
MB446611 LEVER, FR SEAT LUMBAR SUPPORT |
MB446611 |
US $17.76 |
||
|
75192
|
75192
MB468605 LEVER, FR SEAT LUMBAR SUPPORT |
MB468605 |
US $17.76 |
||
|
75214
|
75214
MB389118 PROTECTOR, FR SEAT FRAME |
MB389118 |
US $4.74 |
||
|
75245L
|
75245L
MB371131 RAIL, FR SEAT UNDER BOX SLIDE, LH |
MB371131 |
US $17.76 |
||
|
75245R
|
75245R
MB371132 RAIL, FR SEAT UNDER BOX SLIDE, RH |
MB371132 |
US $17.76 |
||
|
75276
|
75276
MB158863 TRAY, FR SEAT UNDER |
MB158863 |
US $28.73 |
||
|
75284
|
75284
MB342243 WIRE, FR SEAT |
MB342243 |
US $3.40 |
||
|
75602
|
75602
MB452143
ADJUSTER,FR SEAT HEIGHT
|
MB452143 |
— | ||
|
75602
|
75602
MB452144
ADJUSTER,FR SEAT HEIGHT
|
MB452144 |
— | ||
|
75615L
|
75615L
MB452707
COVER,FR SEAT SLIDE ADJUSTER,LH
|
MB452707 |
— | ||
|
75615L
|
75615L
MB452708
COVER,FR SEAT SLIDE ADJUSTER,LH
|
MB452708 |
— | ||
|
75617L
|
75617L
MB445654 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB445654 |
US $11.40 |
||
|
75617L
|
75617L
MB445655 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB445655 |
US $11.40 |
||
|
75617L
|
75617L
MB469176 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB469176 |
US $11.40 |
||
|
75617L
|
75617L
MB469177 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB469177 |
US $11.40 |
||
|
75622L
|
75622L
MB445660 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB445660 |
US $7.25 |
||
|
75622L
|
75622L
MB445661 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB445661 |
US $10.06 |
||
|
75622L
|
75622L
MB469184 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB469184 |
US $10.06 |
||
|
75622L
|
75622L
MB469185 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB469185 |
US $10.06 |
||
|
83087
|
83087
MB372588
HARNESS,SEAT HEATER
|
MB372588 |
— | ||
