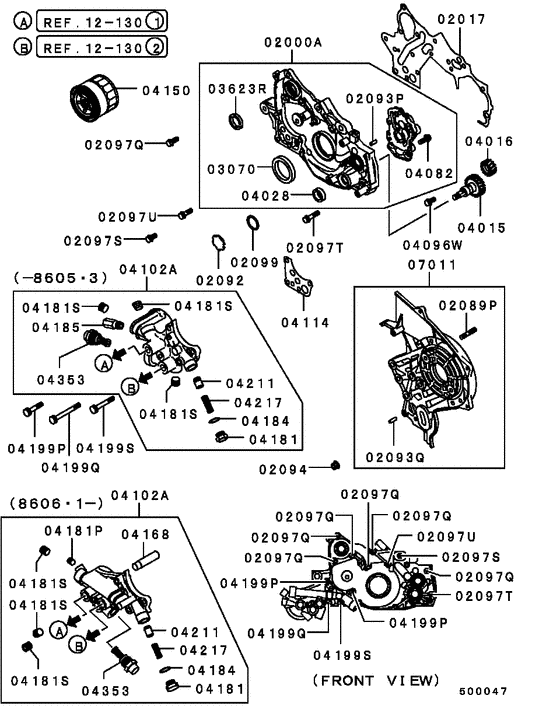

Oil pump & oil filter (ALL) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02000A
|
02000A
MD061286 CASE ASSY, CYLINDER BLOCK, FR |
MD061286 |
US $535.81 |
||
|
02000A
|
02000A
MD095353 CASE ASSY, CYLINDER BLOCK, FR |
MD095353 |
US $378.56 |
||
|
02000A
|
02000A
MD102417 CASE ASSY, CYLINDER BLOCK, FR |
MD102417 |
US $378.56 |
||
|
02000A
|
02000A
MD128571 CASE ASSY, CYLINDER BLOCK, FR |
MD128571 |
US $521.25 |
||
|
02017
|
02017
MD014194
GASKET, ENG FR CASE
|
MD014194 |
— | ||
| replacement | |||||
|
02017
|
02017
MD149393 GASKET, ENG FR CASE |
MD149393 |
from US $17.78 |
||
|
02089P
|
02089P
MS401429 STUD, CYLINDER HEAD8x30 |
MS401429 |
US $2.60 |
||
|
02092
|
02092
MD013139 PLUG, ENG FR CASE |
MD013139 |
US $9.92 |
||
|
02092
|
02092
MD125376 PLUG, ENG FR CASE |
MD125376 |
from US $6.24 |
||
|
02093P
|
02093P
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
02093Q
|
02093Q
MD023415 PIN, ENG FR CASEDowel,6x17.5 |
MD023415 |
US $2.37 |
||
|
02094
|
02094
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
02097Q
|
02097Q
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
02097S
|
02097S
MF140060 BOLT, ENG FR CASEFlange,10x25 |
MF140060 |
from US $1.21 |
||
|
02097T
|
02097T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
02097U
|
02097U
MF140233 BOLT, ENG FR CASEFlange,8x40 |
MF140233 |
from US $1.07 |
||
|
02099
|
02099
MD041021 O-RING, ENG FR CASED=26.2 |
MD041021 |
from US $1.95 |
||
|
03070
|
03070
MD069949
OIL SEAL, CRANKSHAFT, FR
|
MD069949 |
— | ||
| replacement | |||||
|
03070
|
03070
MD343563 OIL SEAL, CRANKSHAFT, FR |
MD343563 |
from US $15.19 |
||
|
03623R
|
03623R
MD069950
OIL SEAL, BALANCER SHAFT, FR LH
|
MD069950 |
— | ||
| replacement | |||||
|
03623R
|
03623R
MD343565 OIL SEAL, BALANCER SHAFT, FR LH |
MD343565 |
from US $10.55 |
||
|
04015
|
04015
MD011074 GEAR, ENG OIL PUMP DRIVE |
MD011074 |
US $96.94 |
||
|
04015
|
04015
MD095352 GEAR, ENG OIL PUMP DRIVE |
MD095352 |
US $89.54 |
||
|
04015
|
04015
MD127056 GEAR, ENG OIL PUMP DRIVE |
MD127056 |
US $95.46 |
||
|
04016
|
04016
MD041089
GEAR, ENG OIL PUMP DRIVEN
|
MD041089 |
— | ||
|
04016
|
04016
MD125361 GEAR, ENG OIL PUMP DRIVEN |
MD125361 |
US $54.72 |
||
|
04028
|
04028
MD069948
OIL SEAL, CRANKSHAFT, FR
|
MD069948 |
— | ||
| replacement | |||||
|
04028
|
04028
MD343566 OIL SEAL, BALANCER SHAFT, FR RH |
MD343566 |
from US $5.98 |
||
|
04028
|
04028
MD095355
OIL SEAL, CRANKSHAFT, FR
|
MD095355 |
— | ||
| replacement | |||||
|
04028
|
04028
MD365697 OIL SEAL, ENG OIL PUMP DRIVE GEAR SHAFT |
MD365697 |
from US $8.39 |
||
|
04082
|
04082
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
04096W
|
04096W
MD040758 BOLT, BALANCER BELT TRAINFlange,8x16 |
MD040758 |
from US $1.42 |
||
|
04102A
|
04102A
MD061622 BRACKET ASSY, OIL FILTER |
MD061622 |
US $267.88 |
||
|
04102A
|
04102A
MD093234 BRACKET ASSY, OIL FILTER |
MD093234 |
US $267.88 |
||
|
04102A
|
04102A
MD101556 BRACKET ASSY, OIL FILTER |
MD101556 |
US $292.66 |
||
|
04114
|
04114
MD041018
GASKET, OIL FILTER BRACKET
|
MD041018 |
— | ||
| replacement | |||||
|
04114
|
04114
MD149370 GASKET, OIL FILTER BRACKET |
MD149370 |
from US $4.25 |
||
|
04150
|
04150
MD013661 OIL FILTERCartridge type |
MD013661 |
US $26.64 |
||
|
04150
|
04150
MD069782 OIL FILTERCartridge type |
MD069782 |
from US $29.74 |
||
|
04150
|
04150
MD184086
OIL FILTER
|
MD184086 |
— | ||
|
04168
|
04168
MD085103 NIPPLE, OIL FILTER INR |
MD085103 |
US $4.44 |
||
|
04181
|
04181
MD001404 PLUG, CYLINDER HEADScrew,d=18 |
MD001404 |
from US $4.95 |
||
|
04181P
|
04181P
MS661141 PLUG, CYLINDER HEADTaper,1/4 |
MS661141 |
US $1.92 |
||
|
04181S
|
04181S
MS661122 PLUG, CYLINDER HEADTaper,3/8 |
MS661122 |
US $2.81 |
||
|
04181S
|
04181S
MS661142 PLUG, CYLINDER HEADTaper,3/8 |
MS661142 |
US $3.56 |
||
|
04184
|
04184
MD000312 GASKET, PLUGD=18.2 |
MD000312 |
from US $1.31 |
||
|
04185
|
04185
MD064941 JOINT, OIL FILTER INR |
MD064941 |
US $10.21 |
||
|
04199P
|
04199P
MF241261 BOLT, ENG FR CASEWasher assembled,8x40 |
MF241261 |
US $3.56 |
||
|
04199Q
|
04199Q
MF241268 BOLT, ENG OIL PANWasher assembled,8x75 |
MF241268 |
US $1.37 |
||
|
04199S
|
04199S
MF241264 BOLT, ENG FR CASEWasher assembled,8x55 |
MF241264 |
from US $1.54 |
||
|
04211
|
04211
MD001402 PLUNGER, OIL FILTER BRACKET RELIEF |
MD001402 |
from US $6.84 |
||
|
04217
|
04217
MD050299 SPRING, ENG OIL RELIEF PLUNGER |
MD050299 |
US $3.15 |
||
|
04353
|
04353
MD041092
VALVE, ENG OIL COOLER BY-PASS
|
MD041092 |
— | ||
| replacement | |||||
|
04353
|
04353
MD356695 VALVE, ENG OIL COOLER BY-PASS |
MD356695 |
from US $36.70 |
||
|
07011
|
07011
MD064596 BRACKET, INJECTION PUMP |
MD064596 |
US $116.18 |
||
|
12 130
|
Oil cooler tube
12 130
|
||||
