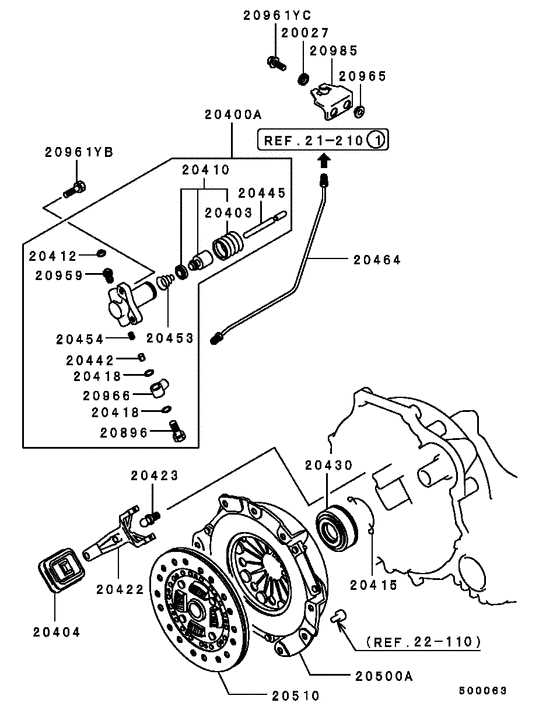

Clutch & clutch release (8606.1-) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T RHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20027
|
20027
MD724003 INSULATOR, CLUTCH FLUID TUBE BRACKET |
MD724003 |
US $5.06 |
||
|
20400A
|
20400A
MD717221 Cylinder Assy, Clutch Release |
MD717221 |
US $122.10 |
||
|
20400A
|
20400A
MD718392 Cylinder Assy, Clutch Release |
MD718392 |
US $125.06 |
||
|
20403
|
20403
MD603464 BOOT, CLUTCH RELEASE CYLINDER |
MD603464 |
US $7.25 |
||
|
20404
|
20404
MD718077 BOOT, CLUTCH RELEASE FORK |
MD718077 |
from US $10.24 |
||
|
20410
|
20410
MD997786
CYLINDER KIT, CLUTCH RELEASE
|
MD997786 |
— | ||
| replacement | |||||
|
20410
|
20410
MD979428 CYLINDER KIT, CLUTCH RELEASE |
MD979428 |
from US $11.72 |
||
|
20410
|
20410
MD997838
CYLINDER KIT, CLUTCH RELEASE
|
MD997838 |
— | ||
| replacement | |||||
|
20410
|
20410
2969A056 CYLINDER KIT, CLUTCH RELEASE |
2969A056 |
from US $21.96 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20415
|
20415
MD706185 CLIP, CLUTCH RELEASE BEARING RETURN |
MD706185 |
from US $1.62 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.79 |
||
|
20422
|
20422
MD720173
FORK, CLUTCH RELEASE
|
MD720173 |
— | ||
| replacement | |||||
|
20422
|
20422
MD770506 FORK, CLUTCH RELEASE |
MD770506 |
US $196.99 |
||
|
20423
|
20423
MD719602 FULCRUM, CLUTCH RELEASE FORK |
MD719602 |
from US $7.98 |
||
|
20430
|
20430
MD706180
BEARING, CLUTCH RELEASE
|
MD706180 |
— | ||
| replacement | |||||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $26.27 |
||
|
20442
|
20442
MD603469
PLATE, CLUTCH RELEASE CYLINDER VALVE
|
MD603469 |
— | ||
|
20445
|
20445
MD603466 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD603466 |
US $14.36 |
||
|
20445
|
20445
MD603692 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD603692 |
US $13.91 |
||
|
20453
|
20453
MD603467 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD603467 |
US $3.28 |
||
|
20454
|
20454
MD603470
SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE
|
MD603470 |
— | ||
|
20464
|
20464
MD717222 TUBE, CLUTCH RELEASE CYLINDER |
MD717222 |
US $10.36 |
||
|
20464
|
20464
MD718235
TUBE, CLUTCH RELEASE CYLINDER
|
MD718235 |
— | ||
|
20500A
|
20500A
MD717017 COVER ASSY, CLUTCH |
MD717017 |
US $210.16 |
||
|
20500A
|
20500A
MD720061 COVER ASSY, CLUTCH |
MD720061 |
US $230.88 |
||
|
20510
|
20510
MD717530 DISC, CLUTCHAsbestos,200 |
MD717530 |
US $165.76 |
||
|
20510
|
20510
MD725933
DISC,CLUTCH
|
MD725933 |
— | ||
|
20896
|
20896
MD603693 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603693 |
US $5.77 |
||
|
20896
|
20896
MD603696 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603696 |
US $7.25 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.24 |
||
|
20961YB
|
20961YB
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
20961YC
|
20961YC
MF243653 BOLT, ENG OIL COOLER LINEWasher assembled,8x25 |
MF243653 |
from US $1.07 |
||
|
20961YC
|
20961YC
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
20965
|
20965
MD724004 WASHER, M/T CLUTCH CONTROL EQUIP8.4 |
MD724004 |
US $3.56 |
||
|
20966
|
20966
MD603694 UNION, M/T CLUTCH CONTROL EQUIP |
MD603694 |
US $10.66 |
||
|
20985
|
20985
MD724394 BRACKET, M/T CLUTCH CONTROL EQUIP |
MD724394 |
US $7.99 |
||
|
