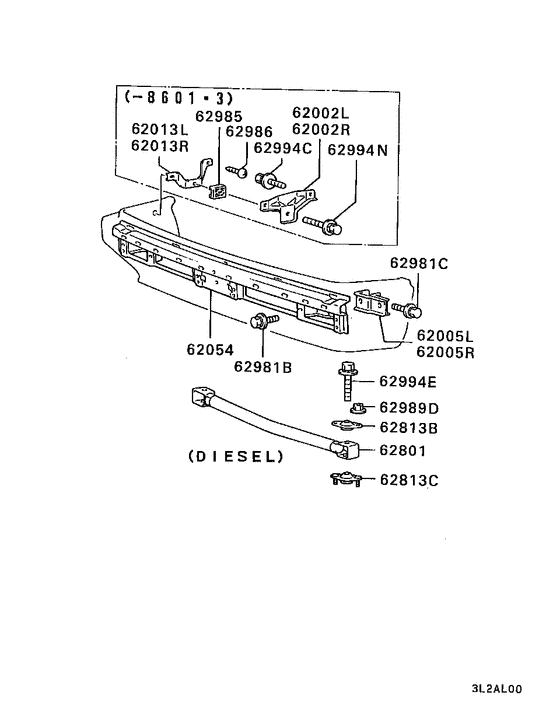

Front bumper & support (BACK BEAM,DYNAMIC DAMPER BAR ETC.) Diagram Mitsubishi GALANT
- Year
- 1985 - 1987
- Sales region
- EUR
- Note
- GLX(TURBO),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62002L
|
62002L
MB271811 BRACKET, FR BUMPER SIDE, LH |
MB271811 |
US $11.54 |
||
|
62002R
|
62002R
MB271812 BRACKET, FR BUMPER SIDE, RH |
MB271812 |
US $11.54 |
||
|
62005L
|
62005L
MB312697 BRACKET, FR BUMPER STAY, LH |
MB312697 |
US $49.58 |
||
|
62005R
|
62005R
MB312698 BRACKET, FR BUMPER STAY, RH |
MB312698 |
US $49.58 |
||
|
62013L
|
62013L
MB325859 BRACKET, FR BUMPER SUPPORT, LH |
MB325859 |
US $6.51 |
||
|
62013R
|
62013R
MB325860 BRACKET, FR BUMPER SUPPORT, RH |
MB325860 |
US $6.51 |
||
|
62054
|
62054
MB312263 REINFORCEMENT, FR BUMPER |
MB312263 |
US $297.02 |
||
|
62801
|
62801
MB369752 BAR, DYNAMIC DAMPER |
MB369752 |
US $311.58 |
||
|
62813B
|
62813B
MB325154 BRACKET, DYNAMIC DAMPER |
MB325154 |
US $18.50 |
||
|
62813B
|
62813B
MB369797 BRACKET, DYNAMIC DAMPER |
MB369797 |
US $27.38 |
||
|
62813B
|
62813B
MB369799 BRACKET, DYNAMIC DAMPER |
MB369799 |
US $31.08 |
||
|
62813C
|
62813C
MB369798 BRACKET, DYNAMIC DAMPER |
MB369798 |
US $32.56 |
||
|
62813C
|
62813C
MB369800 BRACKET, DYNAMIC DAMPER |
MB369800 |
US $36.26 |
||
|
62981B
|
62981B
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
62981C
|
62981C
MF243680 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF243680 |
from US $1.15 |
||
|
62981C
|
62981C
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
62985
|
62985
MB325863 SPACER, FR BUMPER |
MB325863 |
US $4.74 |
||
|
62986
|
62986
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.18 |
||
|
62989D
|
62989D
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
62994C
|
62994C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
62994E
|
62994E
MF244886 BOLT, CRANKSHAFTWasher assembled,10x40 |
MF244886 |
US $2.81 |
||
|
62994N
|
62994N
MF247226 BOLT, FUEL LINEWasher assembled,6x20 |
MF247226 |
US $1.92 |
