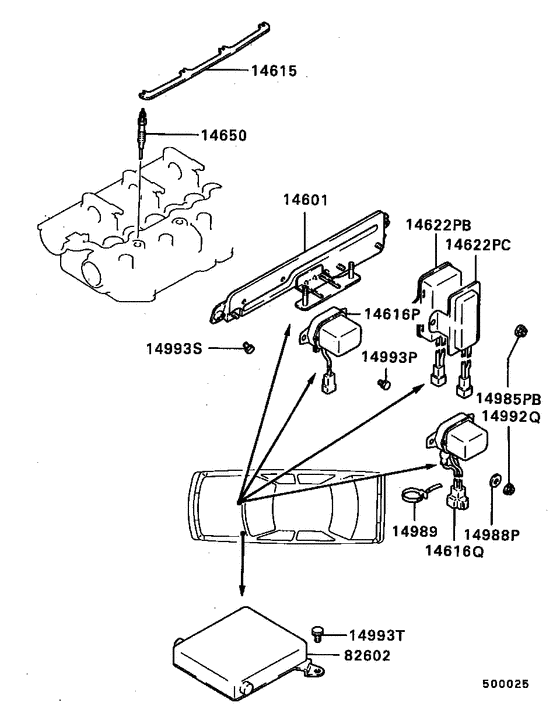

Glow plug & relay (ALL) Diagram Mitsubishi GALANT
- Year
- 1985 - 1987
- Sales region
- EUR
- Note
- GLX(TURBO),4FA/T RHD
- transmission
- 4FA/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14601
|
14601
MD084736 BRACKET, GLOW PLUG RELAY |
MD084736 |
US $87.32 |
||
|
14615
|
14615
MD013687 PLATE, GLOW PLUG CONNECTING |
MD013687 |
US $4.29 |
||
|
14616P
|
14616P
MD085412 RELAY, GLOW PLUG CONTROL |
MD085412 |
US $108.78 |
||
|
14616Q
|
14616Q
MD085413 RELAY, GLOW PLUG CONTROLR6t15372 |
MD085413 |
US $104.34 |
||
|
14616Q
|
14616Q
MD094602 RELAY, GLOW PLUG CONTROLR6t15573 |
MD094602 |
US $111 |
||
|
14622PB
|
14622PB
MD077027 RESISTOR, GLOW PLUG CONTROL |
MD077027 |
US $117.66 |
||
|
14622PC
|
14622PC
MD093839 RESISTOR, GLOW PLUG CONTROL |
MD093839 |
US $51.80 |
||
|
14650
|
14650
MD082832 GLOW PLUG |
MD082832 |
US $64.38 |
||
|
14650
|
14650
MD092392 GLOW PLUGS-QGS |
MD092392 |
from US $100.39 |
||
|
14985PB
|
14985PB
MB093269
NUT, FUEL LINE
|
MB093269 |
— | ||
|
14988P
|
14988P
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
US $0.96 |
||
|
14989
|
14989
MB056747 CLIP, FUEL VAPOR CONTROL LINE60 |
MB056747 |
US $3.85 |
||
|
14992Q
|
14992Q
MB093269
NUT, FUEL LINE
|
MB093269 |
— | ||
|
14993P
|
14993P
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
14993S
|
14993S
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
|
14993T
|
14993T
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
14993T
|
14993T
MF247248 BOLT, FUEL TANK PROTECTORWasher assembled,8x14 |
MF247248 |
US $2.52 |
||
|
82602
|
82602
MD094755 CONTROL UNIT, GLOW PLUG |
MD094755 |
US $390.21 |
