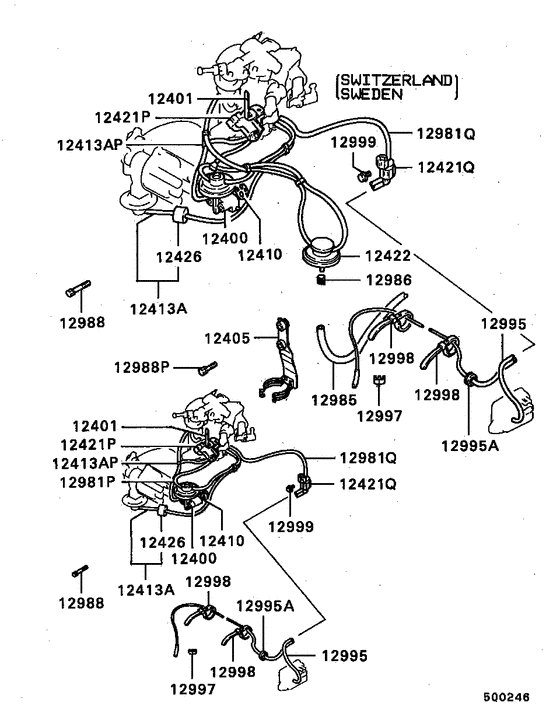

Emission control (ECI) Diagram Mitsubishi GALANT
- Year
- 1986 - 1987
- Sales region
- EUR
- Note
- TURBO(SWEDEN),5FM/T LHD
- transmission
- 5FM/T
- grade
- SWEDEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD091049
VALVE,EGR
|
MD091049 |
— | ||
|
12401
|
12401
MD075042 BRACKET, EMISSION CONTROL EQUIP |
MD075042 |
US $13.91 |
||
|
12405
|
12405
MD091048
BRACKET,EMISSION VACUUM CONTROL REGULATOR VALVE
|
MD091048 |
— | ||
|
12410
|
12410
MD003358
GASKET, EGR VALVE
|
MD003358 |
— | ||
| replacement | |||||
|
12410
|
12410
MD026567 GASKET, EGR VALVE |
MD026567 |
US $2.74 |
||
|
12413A
|
12413A
MD077724
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD077724 |
— | ||
|
12413AP
|
12413AP
MD091176
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD091176 |
— | ||
|
12421P
|
12421P
MD074897 VALVE, EMISSION SOLENOID |
MD074897 |
US $100.64 |
||
|
12421Q
|
12421Q
MD089070 VALVE ASSY, EMISSION SOLENOID |
MD089070 |
US $56.24 |
||
|
12422
|
12422
MD091092
VALVE,EMISSION VACUUM CONTROL REGULATOR
|
MD091092 |
— | ||
|
12426
|
12426
MD074382 VALVE, EMISSION CONTROL DELAY |
MD074382 |
US $50.32 |
||
|
12981Q
|
12981Q
MS632592 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632592 |
US $54.72 |
||
|
12985
|
12985
MD104831
HOSE,EGR EQUIP
|
MD104831 |
— | ||
|
12986
|
12986
MS660162 CLIP, FUEL TANKD=11 |
MS660162 |
US $2.81 |
||
|
12986
|
12986
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
12988
|
12988
MF241236 BOLT, ENG OIL PUMPWasher assembled,6x45 |
MF241236 |
US $1.78 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12988P
|
12988P
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
|
12995
|
12995
MS632792 HOSE, EMISSION SOLENOID VALVE3x2000 |
MS632792 |
US $54.04 |
||
|
12995A
|
12995A
MD076595 HOSE, EMISSION SOLENOID VALVE |
MD076595 |
US $28.12 |
||
|
12997
|
12997
MD001843 CLAMP, CARB INR |
MD001843 |
US $2.96 |
||
|
12998
|
12998
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12999
|
12999
MF247206 BOLT, EMISSION SOLENOID VALVEWasher assembled,5x20 |
MF247206 |
US $2.52 |
||
