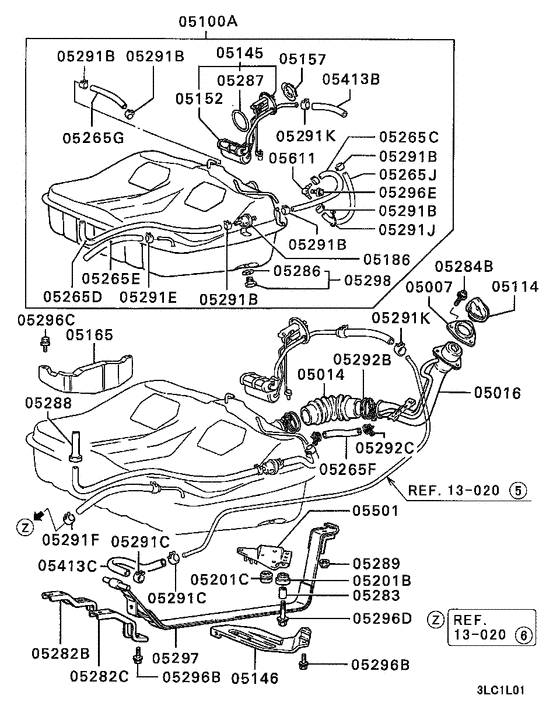

Fuel tank (TURBO (-'85MODEL)) Diagram Mitsubishi GALANT
- Year
- 1986 - 1987
- Sales region
- EUR
- Note
- TURBO(SWEDEN),5FM/T LHD
- transmission
- 5FM/T
- grade
- SWEDEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB247374 GASKET, FUEL FILLER NECK |
MB247374 |
US $5.77 |
||
|
05007
|
05007
MB554685 GASKET, FUEL FILLER NECK |
MB554685 |
US $4.88 |
||
|
05014
|
05014
MB348310
HOSE, FUEL FILLER
|
MB348310 |
— | ||
| replacement | |||||
|
05014
|
05014
MB348672
HOSE, FUEL FILLER
|
MB348672 |
— | ||
|
05016
|
05016
MB348670 NECK, FUEL FILLER |
MB348670 |
US $104.34 |
||
|
05100A
|
05100A
MB400404
FUEL TANK ASSY
|
MB400404 |
— | ||
|
05114
|
05114
MB247387 CAP, FUEL TANK |
MB247387 |
from US $33.07 |
||
|
05145
|
05145
MB487472
GAUGE UNIT, FUEL TANK
|
MB487472 |
— | ||
|
05157
|
05157
MB248216 PLATE, FUEL TANK GAUGE |
MB248216 |
US $7.11 |
||
|
05165
|
05165
MB248845
PROTECTOR,FUEL TANK
|
MB248845 |
— | ||
|
05186
|
05186
MB248865
VALVE, FUEL TANK VAPOR HOSE 2-WAY
|
MB248865 |
— | ||
| replacement | |||||
|
05186
|
05186
MB845469 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB845469 |
US $34.88 |
||
|
05265C
|
05265C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265D
|
05265D
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265E
|
05265E
MS605896
HOSE, FUEL TANK
|
MS605896 |
— | ||
| replacement | |||||
|
05265E
|
05265E
MU601799 HOSE, FUEL TANK8x2000 |
MU601799 |
US $87.55 |
||
|
05265F
|
05265F
MB248897 HOSE, FUEL TANK |
MB248897 |
US $8.73 |
||
|
05265J
|
05265J
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05282B
|
05282B
MB348261 STAY, FUEL TANK |
MB348261 |
US $7.40 |
||
|
05282C
|
05282C
MB348260 STAY, FUEL TANK |
MB348260 |
US $7.40 |
||
|
05284B
|
05284B
MB400510
SCREW, FUEL TANK
|
MB400510 |
— | ||
| replacements | |||||
|
05284B
|
05284B
MU340019 SCREW, FUEL TANKWasher assembled,6x16 |
MU340019 |
US $4.51 |
||
|
05284B
|
05284B
MU340031
SCREW, FUEL TANK
|
MU340031 |
— | ||
|
05286
|
05286
MT199415
GASKET, FUEL TANK
|
MT199415 |
— | ||
|
05287
|
05287
MB248217 O-RING, FUEL TANK69.6 |
MB248217 |
US $7.80 |
||
|
05288
|
05288
MB075890 GROMMET, FUEL TANK15 |
MB075890 |
US $6.07 |
||
|
05289
|
05289
MF445005 NUTSelf locking,10 |
MF445005 |
from US $1.42 |
||
|
05291B
|
05291B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291E
|
05291E
MS660175 CLIP, ROCKER COVERD=12.5 |
MS660175 |
from US $1.52 |
||
|
05291F
|
05291F
MS660175 CLIP, ROCKER COVERD=12.5 |
MS660175 |
from US $1.52 |
||
|
05291J
|
05291J
MS470362 CLIP, WATER HEATER20 |
MS470362 |
US $2.37 |
||
|
05292B
|
05292B
MS660031 CLAMP, FUEL TANK52 |
MS660031 |
from US $2.81 |
||
|
05292C
|
05292C
MF661011 CLAMP, FUEL TANKD=22 |
MF661011 |
US $2.33 |
||
|
05296B
|
05296B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
05296C
|
05296C
MB400209
BOLT, FUEL TANK
|
MB400209 |
— | ||
|
05296D
|
05296D
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
05296E
|
05296E
MF243630 BOLT, FUEL TANKWasher assembled,6x30 |
MF243630 |
US $2.33 |
||
|
05297
|
05297
MB248880 BAND, FUEL TANK |
MB248880 |
US $36.26 |
||
|
05298
|
05298
MB075290
PLUG, FUEL TANK
|
MB075290 |
— | ||
|
05611
|
05611
MB052878 CHECK VALVE, FUEL VAPOR CONTROL |
MB052878 |
US $12.28 |
||
|
05611
|
05611
MB400815 CHECK VALVE, FUEL VAPOR CONTROL |
MB400815 |
from US $13.26 |
||
|
