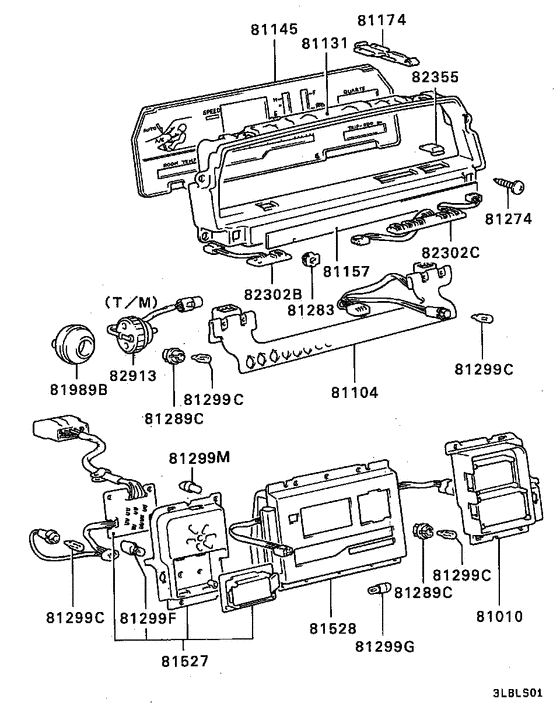

Meter,gauge & clock (LCD METER) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- TURBO,5FM/T RHD
- transmission
- 5FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81010
|
81010
MB327815 METER UNIT, COMBINATION |
MB327815 |
US $853.22 |
||
|
81104
|
81104
MB385821
BOARD,COMBINATION METER WARNING INDICATOR
|
MB385821 |
— | ||
|
81131
|
81131
MB357690
FRAME,COMBINATION METER
|
MB357690 |
— | ||
|
81145
|
81145
MB385815
PANEL,COMBINATION METER INDICATOR
|
MB385815 |
— | ||
|
81157
|
81157
MB327820 PLATE, COMBINATION METER |
MB327820 |
US $55.50 |
||
|
81174
|
81174
MB327819 SPRING, COMBINATION METER PLATE |
MB327819 |
US $7.10 |
||
|
81174
|
81174
MB327918 SPRING, COMBINATION METER PLATE |
MB327918 |
US $9.18 |
||
|
81274
|
81274
MF453034 SCREW, ENG CONTROL EQUIPTapping,5x20 |
MF453034 |
from US $1.63 |
||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81289C
|
81289C
MB066067 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB066067 |
from US $2.05 |
||
|
81299C
|
81299C
MS820083 BULB, GEARSHIFT LINK |
MS820083 |
from US $2.15 |
||
|
81299F
|
81299F
MB280860 BULB, INSTRUMENT PANEL METER14v-11.2w |
MB280860 |
US $7.55 |
||
|
81299F
|
81299F
MB280861 BULB, INSTRUMENT PANEL METER14v-11.2w |
MB280861 |
US $7.55 |
||
|
81299F
|
81299F
MB280862 BULB, INSTRUMENT PANEL METER14v-11.2w |
MB280862 |
US $7.55 |
||
|
81299G
|
81299G
MB357699 BULB, INSTRUMENT PANEL METER |
MB357699 |
US $4.14 |
||
|
81527
|
81527
MB327817 DISPLAY, A/C |
MB327817 |
US $853.22 |
||
|
81528
|
81528
MB357698
DISPLAY,WATER TEMPERATURE & FUEL & SPEED
|
MB357698 |
— | ||
|
81989B
|
81989B
MB326174 GROMMET, SPEEDOMETER CABLE30 |
MB326174 |
US $6.36 |
||
|
82302B
|
82302B
MB357691
BOARD,COMBINATION METER SWITCH
|
MB357691 |
— | ||
|
82302C
|
82302C
MB327802 BOARD, COMBINATION METER SWITCH |
MB327802 |
US $94.72 |
||
|
82355
|
82355
MB327803 KNOB, COMBINATION METER SWITCH |
MB327803 |
US $8.73 |
||
|
82913
|
82913
MB326172 PULSE GENERATOR |
MB326172 |
US $152.44 |
