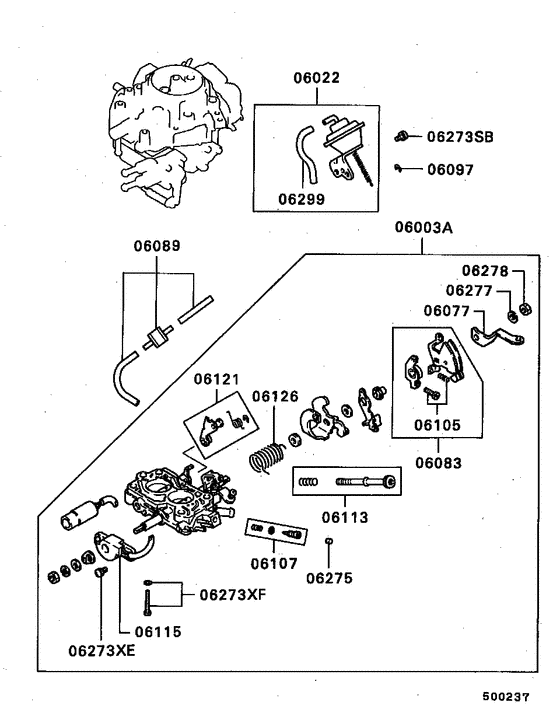

Carburetor (WITH UCC (INNER PARTS LOWER)) Diagram Mitsubishi GALANT
- Year
- 1984 - 1987
- Sales region
- EUR
- Note
- GLS,5FM/T LHD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06022
|
06022
MD601729 CHAMBER KIT, CARB DEPRESSION |
MD601729 |
US $222 |
||
|
06022
|
06022
MD615064
CHAMBER KIT,CARB DEPRESSION
|
MD615064 |
— | ||
|
06089
|
06089
MD601946
VALVE KIT,CARB VACUUM DELAY
|
MD601946 |
— | ||
|
06089
|
06089
MD615067
VALVE KIT,CARB VACUUM DELAY
|
MD615067 |
— | ||
|
06089
|
06089
MD615069
VALVE KIT,CARB VACUUM DELAY
|
MD615069 |
— | ||
|
06105
|
06105
MD601695 ADJUSTING SCREW KIT, FAST IDLE |
MD601695 |
US $5.77 |
||
|
06107
|
06107
MD601810
SCREW,CARB INR
|
MD601810 |
— | ||
|
06113
|
06113
MD601809 ADJUSTING SCREW KIT, CARB SPEED |
MD601809 |
US $19.24 |
||
|
06115
|
06115
MD615015
SENSOR,CARB THROTTLE POSITION
|
MD615015 |
— | ||
|
06273XE
|
06273XE
MD615016
SCREW,CARB INR
|
MD615016 |
— | ||
|
06299
|
06299
MD601736 HOSE,CARB IDLE COMPENSATOR |
MD601736 |
US $6.36 |
