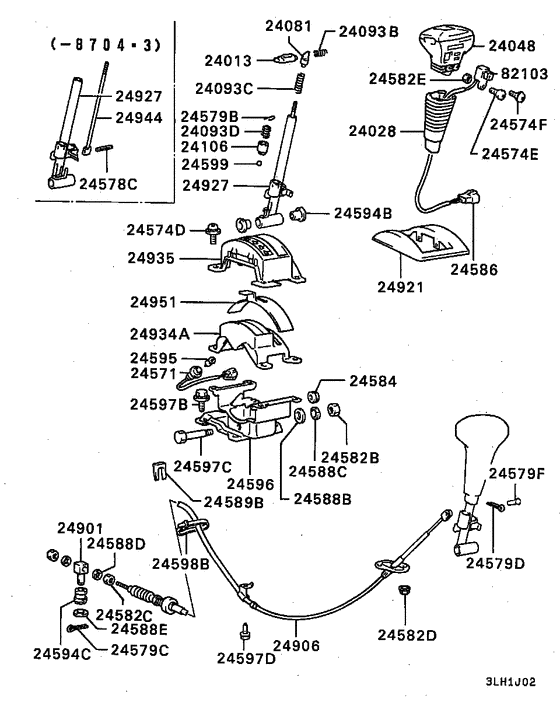

A/t floor shift linkage (ALL) Diagram Mitsubishi GALANT
- Year
- 1986 - 1987
- Sales region
- EUR
- Note
- GLS(SWEDEN),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24013
|
24013
MB367467 BUTTON,GEARSHIFT LEVER PUSH |
MB367467 |
US $19.98 |
||
|
24013
|
24013
MB367469
BUTTON,GEARSHIFT LEVER PUSH
|
MB367469 |
— | ||
|
24028
|
24028
MB367473
COVER,GEARSHIFT LEVER
|
MB367473 |
— | ||
|
24028
|
24028
MB367475
COVER,GEARSHIFT LEVER
|
MB367475 |
— | ||
|
24048
|
24048
MB367461
KNOB,GEARSHIFT LEVER
|
MB367461 |
— | ||
|
24048
|
24048
MB367463
KNOB,GEARSHIFT LEVER
|
MB367463 |
— | ||
|
24081
|
24081
MB367339 SLEEVE, GEARSHIFT LEVER |
MB367339 |
US $5.48 |
||
|
24093B
|
24093B
MB180151 SPRING, GEARSHIFT LEVER KNOB |
MB180151 |
US $2.22 |
||
|
24093C
|
24093C
MB367919 SPRING, HOIST CONTROL ROD LOCK PLATE |
MB367919 |
US $3.55 |
||
|
24093D
|
24093D
MB367717 SPRING, GEARSHIFT LEVER |
MB367717 |
US $5.18 |
||
|
24106
|
24106
MB367716 SUPPORT, GEARSHIFT LEVER DETENT BALL |
MB367716 |
US $8.73 |
||
|
24571
|
24571
MB435886 SOCKET, GEARSHIFT LINK |
MB435886 |
US $13.02 |
||
|
24574D
|
24574D
MF350769 SCREW, FUEL FILLER LID PANELWasher assembled,5x14 |
MF350769 |
US $2.46 |
||
|
24574E
|
24574E
MF360744 SCREW, GEARSHIFT LINKWasher assembled,4x10 |
MF360744 |
US $1.78 |
||
|
24574F
|
24574F
MF360023 SCREW, GEARSHIFT LINK |
MF360023 |
from US $1.70 |
||
|
24578C
|
24578C
MF472556 SPRING PIN, GEARSHIFT LINK4x25 |
MF472556 |
US $1.23 |
||
|
24579B
|
24579B
MB180225 PIN, GEARSHIFT LINKSnap,1.4x30 |
MB180225 |
from US $1.07 |
||
|
24579C
|
24579C
MF472304 PIN, CARBSnap,8x22.7 |
MF472304 |
from US $0.86 |
||
|
24579D
|
24579D
MB180738 PIN, GEARSHIFT LINKSnap,3.6x23.2 |
MB180738 |
US $2.52 |
||
|
24579F
|
24579F
MB013220 PIN, GEARSHIFT LINK6x18 |
MB013220 |
US $3.11 |
||
|
24582B
|
24582B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
24582C
|
24582C
MF430724 NUTJam,6 |
MF430724 |
from US $0.86 |
||
|
24582D
|
24582D
MB133765 NUT, ENG FR MOUNTINGWasher assembled,8 |
MB133765 |
US $1.92 |
||
|
24582E
|
24582E
MF430722 NUT, CARB INR |
MF430722 |
US $1.92 |
||
|
24584
|
24584
MS810012 GROMMET, GEARSHIFT LINK7 |
MS810012 |
US $2.07 |
||
|
24586
|
24586
MB229329 CONNECTOR, GEARSHIFT LINK |
MB229329 |
US $22.20 |
||
|
24588B
|
24588B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
24588B
|
24588B
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
24588C
|
24588C
MB367720 WASHER, GEARSHIFT LINK |
MB367720 |
US $6.84 |
||
|
24588C
|
24588C
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
24588C
|
24588C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
24588D
|
24588D
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
24588D
|
24588D
MF450884 WASHER, GEARSHIFT LINKTooth,6 |
MF450884 |
US $1.78 |
||
|
24588E
|
24588E
MB180001 WASHER, GEARSHIFT LINKPlain,13.5 |
MB180001 |
US $3.97 |
||
|
24588E
|
24588E
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
US $0.96 |
||
|
24588E
|
24588E
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
24589B
|
24589B
MB307554 CLIP, GEARSHIFT LINK |
MB307554 |
US $3.11 |
||
|
24589B
|
24589B
MB367526 CLIP, GEARSHIFT LINK |
MB367526 |
US $6.43 |
||
|
24594B
|
24594B
MB367714 BUSHING, GEARSHIFT LINK |
MB367714 |
US $5.33 |
||
|
24594B
|
24594B
MB580253 BUSHING, GEARSHIFT LINK |
MB580253 |
from US $11.25 |
||
|
24594C
|
24594C
MA103843
BUSHING, GEARSHIFT LINK
|
MA103843 |
— | ||
|
24595
|
24595
MF820031 BULB, GEARSHIFT LINK12v-1.7w |
MF820031 |
US $3.11 |
||
|
24596
|
24596
MB367285
BRACKET,GEARSHIFT LINK
|
MB367285 |
— | ||
|
24597B
|
24597B
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
24597B
|
24597B
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
24597C
|
24597C
MB013006 BOLT, GEARSHIFT LINK10x70 |
MB013006 |
US $12.73 |
||
|
24597C
|
24597C
MB367324
BOLT, GEARSHIFT LINK
|
MB367324 |
— | ||
|
24597C
|
24597C
MB580257 BOLT, GEARSHIFT LINK10x67.75 |
MB580257 |
US $17.76 |
||
|
24597D
|
24597D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
24597D
|
24597D
MS240147 BOLT, GLOW CONTROL EQUIPWasher assembled,8x30 |
MS240147 |
from US $1.44 |
||
|
24598B
|
24598B
MS470087 BAND, FUEL TANKL=122 |
MS470087 |
US $0.82 |
||
|
24599
|
24599
MF540009 BALL, CYLINDER HEAD9/32 |
MF540009 |
US $1.37 |
||
|
24901
|
24901
MB367752 ADJUSTER, GEARSHIFT CABLE |
MB367752 |
US $9.18 |
||
|
24906
|
24906
MB367746 CABLE, GEARSHIFT |
MB367746 |
US $95.46 |
||
|
24921
|
24921
MB367491 GARNISH, A/T SHIFT INDICATOR |
MB367491 |
US $15.54 |
||
|
24921
|
24921
MB367493 GARNISH, A/T SHIFT INDICATOR |
MB367493 |
US $15.54 |
||
|
24927
|
24927
MB367274
LEVER,A/T SHIFT LINK
|
MB367274 |
— | ||
|
24927
|
24927
MB580247
LEVER,A/T SHIFT LINK
|
MB580247 |
— | ||
|
24934A
|
24934A
MB367297 PANEL ASSY, A/T SHIFT INDICATOR, LWR |
MB367297 |
US $20.72 |
||
|
24935
|
24935
MB367494
PANEL,A/T SHIFT INDICATOR
|
MB367494 |
— | ||
|
24935
|
24935
MB367496
PANEL,A/T SHIFT INDICATOR
|
MB367496 |
— | ||
|
24944
|
24944
MB013225 PUSH ROD, A/T SHIFT LEVER |
MB013225 |
US $29.60 |
||
|
24951
|
24951
MB367292
SLIDER,A/T SHIFT INDICATOR
|
MB367292 |
— | ||
|
24951
|
24951
MB484457
SLIDER,A/T SHIFT INDICATOR
|
MB484457 |
— | ||
|
82103
|
82103
MB367479 SWITCH, GEARSHIFT O/D |
MB367479 |
US $25.90 |
||
|
82103
|
82103
MB367481 SWITCH, GEARSHIFT O/D |
MB367481 |
US $25.90 |
