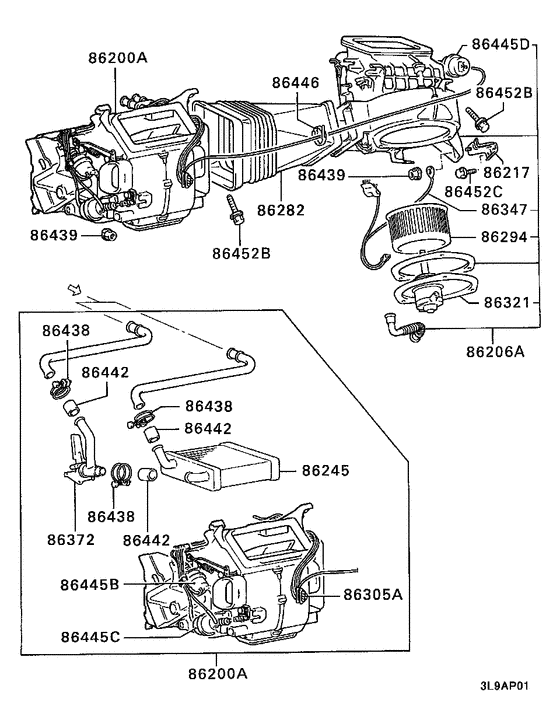

Heater unit & piping (HEATER UNIT) Diagram Mitsubishi GALANT
- Year
- 1986 - 1987
- Sales region
- EUR
- Note
- GLS(SWEDEN),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86200A
|
86200A
MB332060
HEATER ASSY
|
MB332060 |
— | ||
|
86206A
|
86206A
MB380438
BLOWER ASSY,HEATER
|
MB380438 |
— | ||
|
86217
|
86217
MB332066
BRACKET,HEATER BLOWER
|
MB332066 |
— | ||
|
86245
|
86245
MB568984
CORE,HEATER
|
MB568984 |
— | ||
|
86282
|
86282
MB332065
DUCT,HEATER AIR INTAKE
|
MB332065 |
— | ||
|
86294
|
86294
MB188931 FAN, HEATER BLOWER |
MB188931 |
US $31.53 |
||
|
86305A
|
86305A
MB609222
HOSE ASSY,HEATER CONTROL VACUUM
|
MB609222 |
— | ||
|
86321
|
86321
MB298018
MOTOR, HEATER BLOWER
|
MB298018 |
— | ||
|
86347
|
86347
MB380442
RESISTOR,HEATER
|
MB380442 |
— | ||
|
86372
|
86372
MB609199
VALVE,HEATER WATER
|
MB609199 |
— | ||
|
86438
|
86438
MB123436 CLAMP, HEATERD=16 |
MB123436 |
US $2.81 |
||
|
86439
|
86439
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86442
|
86442
MB081099
HOSE, HEATER WATER VALVE
|
MB081099 |
— | ||
|
86445B
|
86445B
MB609003
DIAPHRAGM,HEATER
|
MB609003 |
— | ||
|
86445C
|
86445C
MB609004
DIAPHRAGM,HEATER
|
MB609004 |
— | ||
|
86445D
|
86445D
MB380443
DIAPHRAGM,HEATER
|
MB380443 |
— | ||
|
86446
|
86446
MB332917 CLIP, HEATER |
MB332917 |
US $3.40 |
||
|
86452B
|
86452B
MS240045 BOLT, ACCEL CONTROL EQUIPWasher assembled,8x20 |
MS240045 |
US $2.07 |
||
|
86452B
|
86452B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
86452C
|
86452C
MB239844 BOLT, RADIATORWasher(22) assembled,8x20 |
MB239844 |
US $3.11 |
