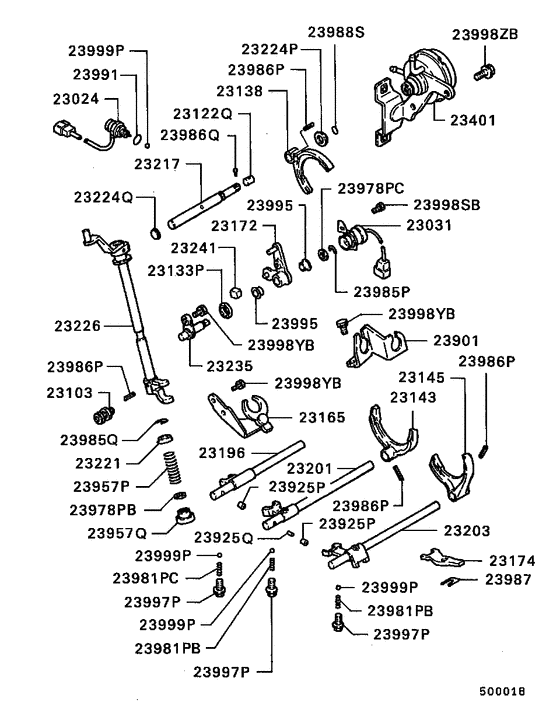

M/t gearshift control (-8512.3) Diagram Mitsubishi GALANT
- Year
- 1984 - 1985
- Sales region
- Japan
- Note
- VR-EXTRA DASH-TURBO,5FM/T
- transmission
- 5FM/T
- grade
- VR-EXTRA DASH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23024
|
23024
MD706872 SWITCH, M/T GEARSHIFT BACKUP LAMP |
MD706872 |
US $27.38 |
||
|
23031
|
23031
MD713413 SWITCH, M/T SELECT |
MD713413 |
US $68.82 |
||
|
23031
|
23031
MD723616 SWITCH, M/T SELECT |
MD723616 |
US $56.98 |
||
|
23031
|
23031
MD723661 SWITCH, M/T SELECT |
MD723661 |
US $68.82 |
||
|
23103
|
23103
MD714465 BALL UNIT, M/T GEARSHIFT EQUIP |
MD714465 |
US $27.38 |
||
|
23122Q
|
23122Q
MD712733 COLLAR, M/T GEARSHIFT EQUIP |
MD712733 |
from US $5.71 |
||
|
23133P
|
23133P
MD713302 COVER, M/T SELECT SHAFT |
MD713302 |
US $3.55 |
||
|
23138
|
23138
MD710396 FORK, M/T GEARSHIFT 5TH & REV |
MD710396 |
US $56.24 |
||
|
23143
|
23143
MD710360 FORK, M/T GEARSHIFT 1ST & 2ND |
MD710360 |
US $65.86 |
||
|
23145
|
23145
MD711713 FORK, M/T GEARSHIFT 3RD & 4TH |
MD711713 |
US $56.24 |
||
|
23165
|
23165
MD715509 LEVER, M/T GEARSHIFT REV |
MD715509 |
US $45.88 |
||
|
23172
|
23172
MD715382 LEVER, M/T SELECT SHAFT |
MD715382 |
US $34.78 |
||
|
23174
|
23174
MD716320 LUG, M/T GEARSHIFT REV RAIL |
MD716320 |
US $10.95 |
||
|
23196
|
23196
MD716647 RAIL, M/T GEARSHIFT REV |
MD716647 |
US $85.10 |
||
|
23201
|
23201
MD716324 RAIL, M/T GEARSHIFT 1ST & 2ND |
MD716324 |
US $85.10 |
||
|
23203
|
23203
MD716326 RAIL, M/T GEARSHIFT 3RD & 4TH |
MD716326 |
US $85.10 |
||
|
23217
|
23217
MD718915 RAIL, M/T SELECT |
MD718915 |
US $33.30 |
||
|
23221
|
23221
MD716830 RETAINER, M/T GEARSHIFT FINGER SPRING |
MD716830 |
US $2.81 |
||
|
23224P
|
23224P
MD717791 SEAT, M/T SELECT RAIL, FR |
MD717791 |
US $13.02 |
||
|
23224Q
|
23224Q
MD718911 SEAT, M/T SELECT RAIL, FR |
MD718911 |
US $12.14 |
||
|
23226
|
23226
MD720054 SHAFT KIT, M/T GEARSHIFT |
MD720054 |
US $104.34 |
||
|
23235
|
23235
MD713285 SHAFT, M/T SELECT LEVER |
MD713285 |
US $43.66 |
||
|
23241
|
23241
MD712919 SHOE, M/T SELECT LEVER |
MD712919 |
from US $2.91 |
||
|
23401
|
23401
MD719750 ACTUATOR, M/T SELECT |
MD719750 |
US $223.48 |
||
|
23901
|
23901
MD720440 BRACKET, M/T GEARSHIFT CABLE |
MD720440 |
US $16.28 |
||
|
23925P
|
23925P
MD706820 PLUNGER, M/T GEARSHIFT RAIL INTERLOCK |
MD706820 |
US $4 |
||
|
23925Q
|
23925Q
MD706821 PLUNGER, M/T GEARSHIFT RAIL INTERLOCK |
MD706821 |
US $2.96 |
||
|
23957P
|
23957P
MD713280 SPRING, M/T GEARSHIFT NEUTRAL RETURN |
MD713280 |
US $2.22 |
||
|
23957Q
|
23957Q
MD715636 SPRING, M/T GEARSHIFT NEUTRAL RETURN |
MD715636 |
US $6.51 |
||
|
23978PB
|
23978PB
MD713282 WASHER, M/T GEARSHIFT EQUIPPlain,14.1 |
MD713282 |
US $1.33 |
||
|
23978PC
|
23978PC
MD713416 WASHER, M/T GEARSHIFT EQUIPPlain,19.5 |
MD713416 |
US $2.96 |
||
|
23981PB
|
23981PB
MT201894 SPRING, M/T GEARSHIFT EQUIP |
MT201894 |
US $1.92 |
||
|
23981PC
|
23981PC
MD722318 SPRING, M/T GEARSHIFT EQUIP |
MD722318 |
US $2.81 |
||
|
23981PC
|
23981PC
MT201894 SPRING, M/T GEARSHIFT EQUIP |
MT201894 |
US $1.92 |
||
|
23985P
|
23985P
MF522406 SNAP RING, ENG MECHANICAL GOVERNOR8 |
MF522406 |
from US $0.27 |
||
|
23985Q
|
23985Q
MD712603 SNAP RING, M/T GEARSHIFT EQUIP12.5 |
MD712603 |
US $2.52 |
||
|
23986P
|
23986P
MD701722 SPRING PIN, M/T CLUTCH CONTROL EQUIP5.2x26 |
MD701722 |
from US $1.31 |
||
|
23986P
|
23986P
MD705490 PIN, M/T GEARSHIFT EQUIPLock,5x22 |
MD705490 |
from US $1.31 |
||
|
23986Q
|
23986Q
MD713964 PIN, M/T GEARSHIFT EQUIPDowel,4x7.8 |
MD713964 |
from US $3.90 |
||
|
23987
|
23987
MD716551 SPACER, M/T GEARSHIFT EQUIP0.6 |
MD716551 |
US $6.81 |
||
|
23987
|
23987
MD716552 SPACER, M/T GEARSHIFT EQUIP0.9 |
MD716552 |
US $6.81 |
||
|
23987
|
23987
MD716553 SPACER, M/T GEARSHIFT EQUIP1.2 |
MD716553 |
US $6.81 |
||
|
23987
|
23987
MD716554 SPACER, M/T GEARSHIFT EQUIP1.5 |
MD716554 |
US $6.81 |
||
|
23987
|
23987
MD716555 SPACER, M/T GEARSHIFT EQUIP1.8 |
MD716555 |
US $6.81 |
||
|
23987
|
23987
MD716556 SPACER, M/T GEARSHIFT EQUIP2.1 |
MD716556 |
US $6.81 |
||
|
23987
|
23987
MD716557 SPACER, M/T GEARSHIFT EQUIP2.4 |
MD716557 |
US $6.81 |
||
|
23987
|
23987
MD716558 SPACER, M/T GEARSHIFT EQUIP2.7 |
MD716558 |
US $6.81 |
||
|
23988S
|
23988S
MF520006 O-RING, ENG OIL FILLER10.1 |
MF520006 |
from US $0.96 |
||
|
23991
|
23991
MF660034 GASKET, CYLINDER BLOCKD=12 |
MF660034 |
from US $0.25 |
||
|
23995
|
23995
MD712918 BUSHING, M/T GEARSHIFT EQUIP |
MD712918 |
US $8.58 |
||
|
23997P
|
23997P
MD700626 PLUG, M/T GEARSHIFT EQUIPFlange,10x16 |
MD700626 |
US $3.40 |
||
|
23998SB
|
23998SB
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
23998YB
|
23998YB
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
23998ZB
|
23998ZB
MD700971 BOLT, M/T CASEFlange,10x22 |
MD700971 |
US $2.66 |
||
|
23999P
|
23999P
MF540010 BALL, CAMSHAFT5/16 |
MF540010 |
from US $1.31 |
