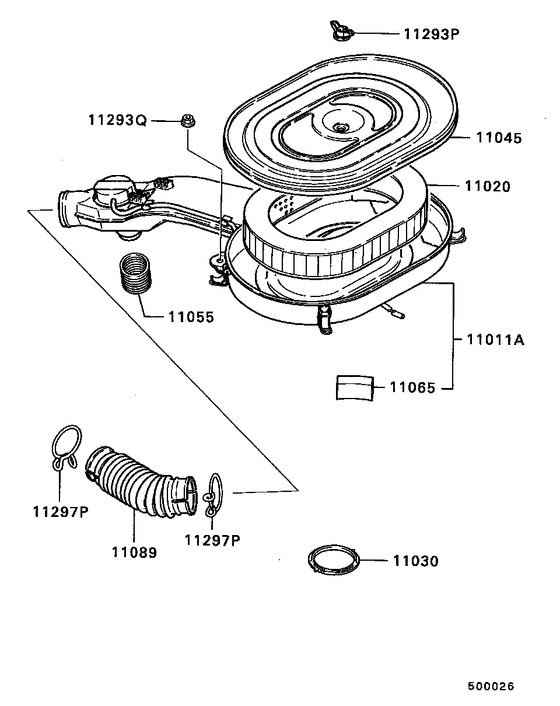

Air cleaner (CARBURETOR) Diagram Mitsubishi GALANT
- Year
- 1984 - 1985
- Sales region
- Japan
- Note
- VS,5FM/T
- transmission
- 5FM/T
- grade
- VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD603591 BODY ASSY, AIR CLEANER |
MD603591 |
US $436.80 |
||
|
11011A
|
11011A
MD604971 BODY ASSY, AIR CLEANER |
MD604971 |
US $391.66 |
||
|
11020
|
11020
MD604952 ELEMENT, AIR CLEANER |
MD604952 |
US $53.28 |
||
|
11020
|
11020
MD607648
ELEMENT, AIR CLEANER
|
MD607648 |
— | ||
|
11030
|
11030
MD025181 GASKET, AIR CLEANER TO CARB |
MD025181 |
US $9.44 |
||
|
11045
|
11045
MD603593 COVER, AIR CLEANER |
MD603593 |
US $122.84 |
||
|
11045
|
11045
MD604951 COVER, AIR CLEANER |
MD604951 |
US $29.60 |
||
|
11055
|
11055
MD041420 HEAT DUCT, AIR CLEANER42x55 |
MD041420 |
US $10.80 |
||
|
11065
|
11065
MD603131 FILTER, AIR CLEANER CRANKCASE VENTILATION |
MD603131 |
US $3.11 |
||
|
11065
|
11065
MD607707 FILTER, AIR CLEANER CRANKCASE VENTILATION |
MD607707 |
US $6.07 |
||
|
11089
|
11089
MD067383 DUCT, AIR CLEANER INTAKE |
MD067383 |
US $28.86 |
||
|
11089
|
11089
MD082454 DUCT, AIR CLEANER INTAKE |
MD082454 |
US $10.21 |
||
|
11293P
|
11293P
MD031789
NUT, AIR CLEANER
|
MD031789 |
— | ||
| replacement | |||||
|
11293P
|
11293P
MD154913 NUT, AIR CLEANERWing,8 |
MD154913 |
from US $5.40 |
||
|
11293Q
|
11293Q
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
11297P
|
11297P
MD040913 CLAMP, AIR CLEANER56 |
MD040913 |
US $6.70 |
||
