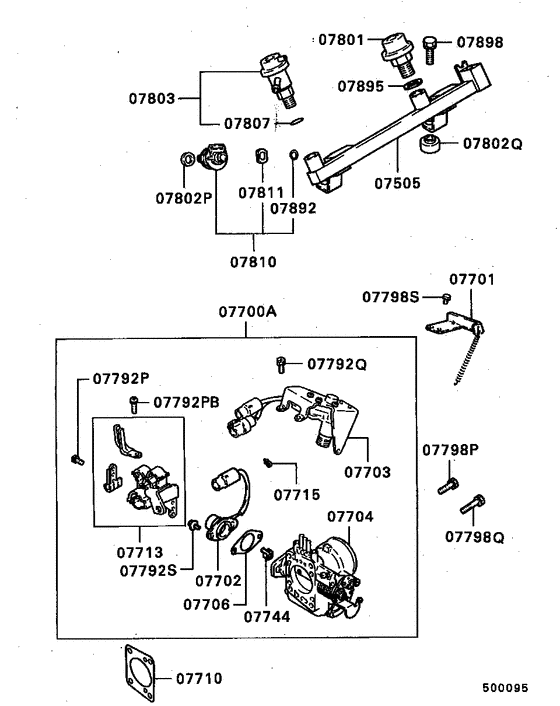

Injector & throttle body Diagram Mitsubishi GALANT
- Year
- 1986 - 1987
- Sales region
- EUR
- Note
- GLS(SEDAN/MPI/ANTI-POLL),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07505
|
07505
MD098757
PIPE,FUEL DELIVERY
|
MD098757 |
— | ||
|
07505
|
07505
MD103669 PIPE, FUEL DELIVERY |
MD103669 |
US $272.32 |
||
|
07700A
|
07700A
MD098756
Throttle Body Assy
|
MD098756 |
— | ||
|
07700A
|
07700A
MD102920
Throttle Body Assy
|
MD102920 |
— | ||
|
07700A
|
07700A
MD110223
Throttle Body Assy
|
MD110223 |
— | ||
|
07701
|
07701
MD098819
SPRING KIT,THROTTLE BODY THROTTLE RETURN
|
MD098819 |
— | ||
|
07702
|
07702
MD614015
SENSOR,THROTTLE BODY THROTTLE
|
MD614015 |
— | ||
|
07702
|
07702
MD614059 SENSOR, THROTTLE BODY THROTTLE |
MD614059 |
US $257.52 |
||
|
07703
|
07703
MD614018
SERVO KIT,THROTTLE BODY IDLE SPEED CONTROL
|
MD614018 |
— | ||
|
07703
|
07703
MD614061
SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL
|
MD614061 |
— | ||
|
07704
|
07704
MD614016
BODY,THROTTLE BODY MIXING
|
MD614016 |
— | ||
|
07704
|
07704
MD614050
BODY,THROTTLE BODY MIXING
|
MD614050 |
— | ||
|
07706
|
07706
MD614137 GASKET, THROTTLE BODY THROTTLE SENSOR |
MD614137 |
US $10.06 |
||
|
07710
|
07710
MD095398
GASKET, THROTTLE BODY
|
MD095398 |
— | ||
| replacement | |||||
|
07710
|
07710
MD164884
GASKET, THROTTLE BODY
|
MD164884 |
— | ||
|
07713
|
07713
MD614017 BRACKET KIT, THROTTLE BODY HARNESS CONNECTOR |
MD614017 |
US $19.24 |
||
|
07715
|
07715
MD608632 CLIP, CARB INR |
MD608632 |
US $6.96 |
||
|
07744
|
07744
MD608978
JOINT, INJECTION MIXER INR
|
MD608978 |
— | ||
|
07792P
|
07792P
MF350144 SCREW, THROTTLE BODY INR |
MF350144 |
US $2.66 |
||
|
07792PB
|
07792PB
MF350146 SCREW, THROTTLE BODY INR |
MF350146 |
US $2.66 |
||
|
07792Q
|
07792Q
MD614066 SCREW, INJECTION MIXER INRWasher assembled,5x12 |
MD614066 |
US $5.92 |
||
|
07792S
|
07792S
MD614065 SCREW, INJECTION MIXER INRWasher assembled,4x12 |
MD614065 |
US $7.84 |
||
|
07798P
|
07798P
MF240057 BOLT, CYLINDER HEADWasher assembled,8x30 |
MF240057 |
from US $1.21 |
||
|
07798Q
|
07798Q
MF240061 BOLT, THROTTLE BODYWasher assembled,8x40 |
MF240061 |
US $2.52 |
||
|
07798S
|
07798S
MF241201 BOLT, THROTTLE BODYWasher assembled,5x10 |
MF241201 |
US $2.37 |
||
|
07801
|
07801
MD086976
DAMPER,FUEL INJECTOR DELIVERY PIPE
|
MD086976 |
— | ||
|
07802P
|
07802P
MD087060 INSULATOR, FUEL INJECTOR |
MD087060 |
from US $1.54 |
||
|
07802Q
|
07802Q
MD095402 INSULATOR, FUEL DELIVERY PIPE |
MD095402 |
from US $1.38 |
||
|
07803
|
07803
MD095401 REGULATOR, INJECTION MIXER FUEL PRESSURE |
MD095401 |
US $104.34 |
||
|
07807
|
07807
MD604671 O-RING, FUEL REGULATOR |
MD604671 |
US $3.40 |
||
|
07810
|
07810
MD094717
INJECTOR KIT,FUEL
|
MD094717 |
— | ||
|
07811
|
07811
MD614012 SHEET,FUEL INJECTORNIKK |
MD614012 |
US $7.84 |
||
|
07811
|
07811
MD614804 SHEET, FUEL INJECTOR |
MD614804 |
US $6.07 |
||
|
07811
|
07811
MD614805 SHEET, FUEL INJECTOR |
MD614805 |
from US $3.72 |
||
|
07892
|
07892
MD614011 O-RING,INJECTION MIXER INRNIKK |
MD614011 |
US $7.84 |
||
|
07892
|
07892
MD614803 O-RING, FUEL INJECTOR |
MD614803 |
US $8.29 |
||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07892
|
07892
MD614813
O-RING, FUEL INJECTOR
|
MD614813 |
— | ||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07895
|
07895
MF660065 GASKET, CYLINDER BLOCKD=14 |
MF660065 |
from US $0.78 |
||
|
07898
|
07898
MF247257 BOLT, FUEL LINEWasher assembled,8x35 |
MF247257 |
US $2.60 |
||
