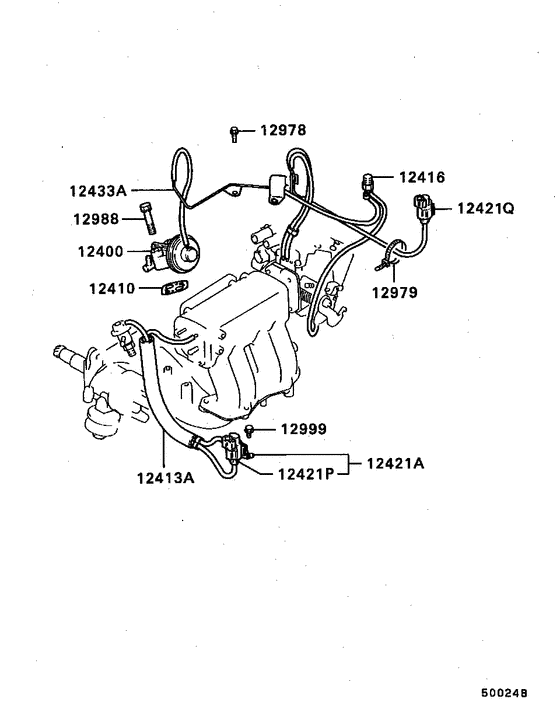

Emission control (8606.1-) Diagram Mitsubishi GALANT
- Year
- 1985 - 1987
- Sales region
- EUR
- Note
- GLS(SEDAN/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLS
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD095552
VALVE,EGR
|
MD095552 |
— | ||
|
12400
|
12400
MD112794
VALVE, EGR
|
MD112794 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD101285
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD101285 |
— | ||
|
12413A
|
12413A
MD113695
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD113695 |
— | ||
|
12416
|
12416
MD095520
THERMO-VALVE,EMISSION CONTROL
|
MD095520 |
— | ||
|
12416
|
12416
MD103867
THERMO-VALVE, EMISSION CONTROL
|
MD103867 |
— | ||
|
12421A
|
12421A
MD095273
VALVE,EMISSION SOLENOID
|
MD095273 |
— | ||
|
12421A
|
12421A
MD113720 VALVE, EMISSION SOLENOID |
MD113720 |
US $62.90 |
||
|
12421P
|
12421P
MD113721 VALVE, EMISSION SOLENOID |
MD113721 |
US $78.66 |
||
|
12421Q
|
12421Q
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12433A
|
12433A
MD098722
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD098722 |
— | ||
|
12433A
|
12433A
MD105371
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD105371 |
— | ||
|
12433A
|
12433A
MD129693
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD129693 |
— | ||
|
12978
|
12978
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12979
|
12979
MD107115 BAND, AIR CLEANER320 |
MD107115 |
US $4.92 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $0.96 |
||
