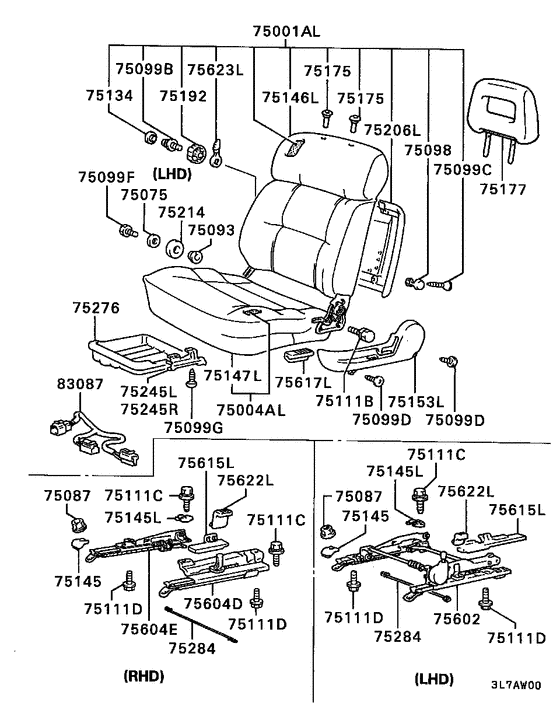

Front seat (LH) Diagram Mitsubishi GALANT
- Year
- 1985 - 1987
- Sales region
- EUR
- Note
- GLS(SEDAN/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB452111
BACK ASSY,FR SEAT,LH
|
MB452111 |
— | ||
|
75001AL
|
75001AL
MB452112
BACK ASSY,FR SEAT,LH
|
MB452112 |
— | ||
|
75001AL
|
75001AL
MB452698
BACK ASSY,FR SEAT,LH
|
MB452698 |
— | ||
|
75001AL
|
75001AL
MB452699
BACK ASSY,FR SEAT,LH
|
MB452699 |
— | ||
|
75001AL
|
75001AL
MB709124
BACK ASSY,FR SEAT,LH
|
MB709124 |
— | ||
|
75001AL
|
75001AL
MB709125
BACK ASSY,FR SEAT,LH
|
MB709125 |
— | ||
|
75001AL
|
75001AL
MB710407
BACK ASSY,FR SEAT,LH
|
MB710407 |
— | ||
|
75001AL
|
75001AL
MB710408
BACK ASSY,FR SEAT,LH
|
MB710408 |
— | ||
|
75004AL
|
75004AL
MB452073
CUSHION ASSY,FR SEAT,LH
|
MB452073 |
— | ||
|
75004AL
|
75004AL
MB452074
CUSHION ASSY,FR SEAT,LH
|
MB452074 |
— | ||
|
75004AL
|
75004AL
MB452656
CUSHION ASSY,FR SEAT,LH
|
MB452656 |
— | ||
|
75004AL
|
75004AL
MB452657
CUSHION ASSY,FR SEAT,LH
|
MB452657 |
— | ||
|
75004AL
|
75004AL
MB708858
CUSHION ASSY,FR SEAT,LH
|
MB708858 |
— | ||
|
75004AL
|
75004AL
MB708859
CUSHION ASSY,FR SEAT,LH
|
MB708859 |
— | ||
|
75004AL
|
75004AL
MB708874
CUSHION ASSY,FR SEAT,LH
|
MB708874 |
— | ||
|
75004AL
|
75004AL
MB708875
CUSHION ASSY,FR SEAT,LH
|
MB708875 |
— | ||
|
75075
|
75075
MB190981 WASHER, FR SEAT6 |
MB190981 |
US $2.96 |
||
|
75087
|
75087
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75093
|
75093
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75098
|
75098
MB371750 CAP, FR DOOR TRIM SCREW |
MB371750 |
US $2.81 |
||
|
75098
|
75098
MB450994 CAP, FR DOOR TRIM SCREW |
MB450994 |
US $3.11 |
||
|
75098
|
75098
MB450995 CAP, FR DOOR TRIM SCREW |
MB450995 |
US $3.11 |
||
|
75098
|
75098
MB469837 CAP, FR DOOR TRIM SCREW |
MB469837 |
US $2.81 |
||
|
75099B
|
75099B
MF351466 SCREW, CRUISE CONTROL ELECTRICALSWasher assembled,5x12 |
MF351466 |
US $2.22 |
||
|
75099C
|
75099C
MF453615 SCREW, FLOOR INSPECTION LIDTapping,4x16 |
MF453615 |
US $1.92 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099F
|
75099F
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099G
|
75099G
MF455390 SCREW, FUEL LINETapping,5x10 |
MF455390 |
US $2.60 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MB342638 BOLT, FR SEATWasher assembled,10x22 |
MB342638 |
US $3.85 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75134
|
75134
MB371779 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB371779 |
US $2.81 |
||
|
75134
|
75134
MB447220 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB447220 |
US $2.81 |
||
|
75134
|
75134
MB447221 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB447221 |
US $2.81 |
||
|
75145
|
75145
MB445587 COVER, FR SEAT ANCHOR |
MB445587 |
US $5.48 |
||
|
75145
|
75145
MB445588 COVER, FR SEAT ANCHOR |
MB445588 |
US $5.48 |
||
|
75145L
|
75145L
MB445581 COVER, FR SEAT ANCHOR, LH |
MB445581 |
US $5.62 |
||
|
75145L
|
75145L
MB445582 COVER, FR SEAT ANCHOR, LH |
MB445582 |
US $5.62 |
||
|
75146L
|
75146L
MB459546
COVER,FR SEAT BACK,LH
|
MB459546 |
— | ||
|
75146L
|
75146L
MB459548
COVER,FR SEAT BACK,LH
|
MB459548 |
— | ||
|
75146L
|
75146L
MB459549
COVER,FR SEAT BACK,LH
|
MB459549 |
— | ||
|
75146L
|
75146L
MB459550
COVER,FR SEAT BACK,LH
|
MB459550 |
— | ||
|
75146L
|
75146L
MB459582
COVER,FR SEAT BACK,LH
|
MB459582 |
— | ||
|
75146L
|
75146L
MB459583
COVER,FR SEAT BACK,LH
|
MB459583 |
— | ||
|
75146L
|
75146L
MB709104
COVER,FR SEAT BACK,LH
|
MB709104 |
— | ||
|
75146L
|
75146L
MB709105
COVER,FR SEAT BACK,LH
|
MB709105 |
— | ||
|
75147L
|
75147L
MB459438
COVER,FR SEAT CUSHION,LH
|
MB459438 |
— | ||
|
75147L
|
75147L
MB459439
COVER,FR SEAT CUSHION,LH
|
MB459439 |
— | ||
|
75147L
|
75147L
MB459472
COVER,FR SEAT CUSHION,LH
|
MB459472 |
— | ||
|
75147L
|
75147L
MB459473
COVER,FR SEAT CUSHION,LH
|
MB459473 |
— | ||
|
75147L
|
75147L
MB708940
COVER,FR SEAT CUSHION,LH
|
MB708940 |
— | ||
|
75147L
|
75147L
MB708941
COVER,FR SEAT CUSHION,LH
|
MB708941 |
— | ||
|
75147L
|
75147L
MB708956
COVER,FR SEAT CUSHION,LH
|
MB708956 |
— | ||
|
75147L
|
75147L
MB708957
COVER,FR SEAT CUSHION,LH
|
MB708957 |
— | ||
|
75153L
|
75153L
MB452123
COVER,FR SEAT SIDE SHIELD,LH
|
MB452123 |
— | ||
|
75153L
|
75153L
MB452124
COVER,FR SEAT SIDE SHIELD,LH
|
MB452124 |
— | ||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75175
|
75175
MB446373 GUIDE, FR SEAT HEADRESTW/lock |
MB446373 |
US $9.62 |
||
|
75177
|
75177
MB451783
HEADREST,FR SEAT
|
MB451783 |
— | ||
|
75177
|
75177
MB459699 HEADREST,FR SEAT |
MB459699 |
US $356.72 |
||
|
75177
|
75177
MB469202
HEADREST,FR SEAT
|
MB469202 |
— | ||
|
75177
|
75177
MB469203 HEADREST, FR SEAT |
MB469203 |
US $356.72 |
||
|
75192
|
75192
MB446610 LEVER, FR SEAT LUMBAR SUPPORT |
MB446610 |
US $17.76 |
||
|
75192
|
75192
MB446611 LEVER, FR SEAT LUMBAR SUPPORT |
MB446611 |
US $17.76 |
||
|
75192
|
75192
MB468605 LEVER, FR SEAT LUMBAR SUPPORT |
MB468605 |
US $17.76 |
||
|
75206L
|
75206L
MB459313
PANEL,FR SEAT BACK,LH
|
MB459313 |
— | ||
|
75206L
|
75206L
MB459314
PANEL,FR SEAT BACK,LH
|
MB459314 |
— | ||
|
75206L
|
75206L
MB709137
PANEL,FR SEAT BACK
|
MB709137 |
— | ||
|
75206L
|
75206L
MB709138
PANEL,FR SEAT BACK
|
MB709138 |
— | ||
|
75214
|
75214
MB389118 PROTECTOR, FR SEAT FRAME |
MB389118 |
US $4.74 |
||
|
75245L
|
75245L
MB371131 RAIL, FR SEAT UNDER BOX SLIDE, LH |
MB371131 |
US $17.76 |
||
|
75245R
|
75245R
MB371132 RAIL, FR SEAT UNDER BOX SLIDE, RH |
MB371132 |
US $17.76 |
||
|
75276
|
75276
MB158863 TRAY, FR SEAT UNDER |
MB158863 |
US $28.73 |
||
|
75284
|
75284
MB342243 WIRE, FR SEAT |
MB342243 |
US $3.40 |
||
|
75602
|
75602
MB452143
ADJUSTER,FR SEAT HEIGHT
|
MB452143 |
— | ||
|
75602
|
75602
MB452144
ADJUSTER,FR SEAT HEIGHT
|
MB452144 |
— | ||
|
75615L
|
75615L
MB452707
COVER,FR SEAT SLIDE ADJUSTER,LH
|
MB452707 |
— | ||
|
75615L
|
75615L
MB452708
COVER,FR SEAT SLIDE ADJUSTER,LH
|
MB452708 |
— | ||
|
75617L
|
75617L
MB469176 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB469176 |
US $11.40 |
||
|
75617L
|
75617L
MB469177 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB469177 |
US $11.40 |
||
|
75622L
|
75622L
MB469184 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB469184 |
US $10.06 |
||
|
75622L
|
75622L
MB469185 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB469185 |
US $10.06 |
||
|
75623L
|
75623L
MB452773
LEVER,FR SEAT DUAL RECLINING ADJUSTER,LH
|
MB452773 |
— | ||
|
75623L
|
75623L
MB452774
LEVER,FR SEAT DUAL RECLINING ADJUSTER,LH
|
MB452774 |
— | ||
|
75623L
|
75623L
MB708807
LEVER,FR SEAT DUAL RECLINING ADJUSTER,LH
|
MB708807 |
— | ||
|
83087
|
83087
MB372588
HARNESS,SEAT HEATER
|
MB372588 |
— |
