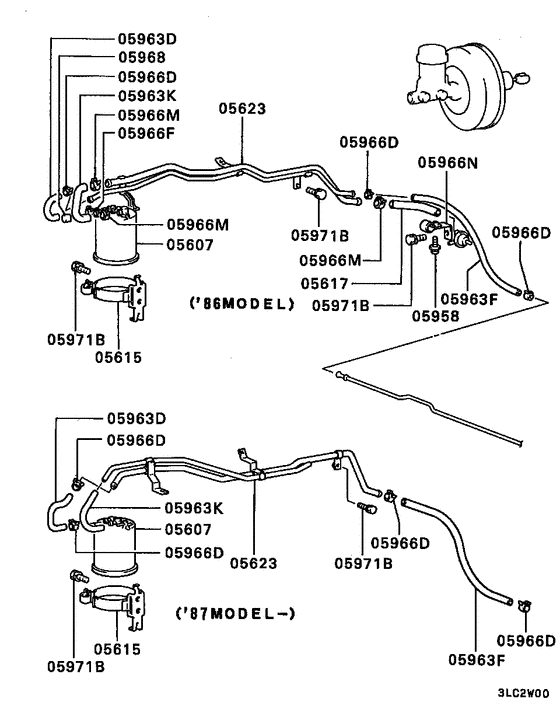

Fuel line & vapor gas control (VAPOR GAS CONTROL (ECS)) Diagram Mitsubishi GALANT
- Year
- 1985 - 1987
- Sales region
- EUR
- Note
- GLS(SEDAN/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05607
|
05607
MB129500
CANISTER, FUEL VAPOR
|
MB129500 |
— | ||
|
05607
|
05607
MB504230
CANISTER, FUEL VAPOR
|
MB504230 |
— | ||
|
05615
|
05615
MB400560
HOLDER,FUEL VAPOR CANISTER
|
MB400560 |
— | ||
|
05615
|
05615
MB400561
HOLDER,FUEL VAPOR CANISTER
|
MB400561 |
— | ||
|
05617
|
05617
MB129712 HOSE, FUEL VAPOR PURGE |
MB129712 |
US $8.29 |
||
|
05623
|
05623
MB433840
PIPE,FUEL VAPOR PURGE
|
MB433840 |
— | ||
|
05623
|
05623
MB504523
PIPE,FUEL VAPOR PURGE
|
MB504523 |
— | ||
|
05958
|
05958
MF350745 SCREW, FUEL RETURN LINEWasher assembled,4x12 |
MF350745 |
US $0.74 |
||
|
05963D
|
05963D
MB129832
HOSE,FUEL VAPOR CONTROL LINE
|
MB129832 |
— | ||
|
05963D
|
05963D
MB129835 HOSE, FUEL VAPOR CONTROL LINE130 |
MB129835 |
US $7.10 |
||
|
05963D
|
05963D
MB400697
HOSE,FUEL VAPOR CONTROL LINE
|
MB400697 |
— | ||
|
05963D
|
05963D
MB504526
HOSE,FUEL VAPOR CONTROL LINE
|
MB504526 |
— | ||
|
05963F
|
05963F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963K
|
05963K
MB400696
HOSE,FUEL VAPOR PURGE
|
MB400696 |
— | ||
|
05963K
|
05963K
MS605298 HOSE, FUEL TANK4x2000 |
MS605298 |
US $16.28 |
||
|
05963K
|
05963K
MS605580 HOSE, FUEL TANK11x2000 |
MS605580 |
US $72.50 |
||
|
05966D
|
05966D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966F
|
05966F
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05966M
|
05966M
MS660166 CLIP, ROCKER COVERD=15.5 |
MS660166 |
from US $1.62 |
||
|
05966N
|
05966N
MB075730 CLIP, FUEL VAPOR CONTROL LINE18 |
MB075730 |
US $4.14 |
||
|
05968
|
05968
MB129998 CAP, FUEL VAPOR CONTROL LINE |
MB129998 |
US $5.18 |
||
|
05971B
|
05971B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
