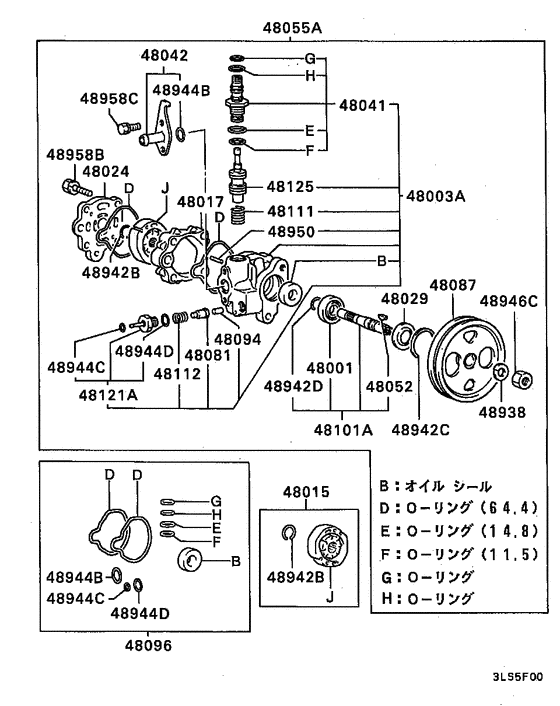

Power steering oil pump (DISASSEMBLED PARTS(8610.1-8911.3)) Diagram Mitsubishi GALANT
- Year
- 1989 - 1990
- Sales region
- Japan
- Note
- DUKE V3000(V6/MPI),4FA/T
- transmission
- 4FA/T
- grade
- DUKE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48001
|
48001
MB553100 BEARING, P/S OIL PUMP GEAR SIDEBall |
MB553100 |
US $44.40 |
||
|
48003A
|
48003A
MB553622 BODY ASSY, P/S OIL PUMP |
MB553622 |
US $720.72 |
||
|
48003A
|
48003A
MB815277 BODY ASSY, P/S OIL PUMP |
MB815277 |
US $1,249.25 |
||
|
48015
|
48015
MB351257 CARTRIDGE KIT, P/S OIL PUMP |
MB351257 |
from US $232.56 |
||
|
48017
|
48017
MB351254
CASE, RR STEERING OIL PUMP CAM
|
MB351254 |
— | ||
|
48024
|
48024
MB501850 COVER, P/S OIL PUMP |
MB501850 |
US $80.66 |
||
|
48029
|
48029
MB501849 COVER, P/S OIL PUMP DUST |
MB501849 |
US $10.21 |
||
|
48041
|
48041
MB351838 JOINT KIT, P/S OIL PUMP FLOW |
MB351838 |
US $85.50 |
||
|
48042
|
48042
MB501415 JOINT KIT, P/S OIL PUMP SUCTION |
MB501415 |
US $16.28 |
||
|
48052
|
48052
MB243122 KEY, P/S OIL PUMP SHAFT |
MB243122 |
US $4.29 |
||
|
48055A
|
48055A
MB553288 OIL PUMP ASSY, P/S |
MB553288 |
US $1,468.80 |
||
|
48081
|
48081
MB351269 PLUNGER, P/S OIL PUMP BODY |
MB351269 |
US $7.99 |
||
|
48087
|
48087
MB501852 PULLEY, P/S OIL PUMP |
MB501852 |
US $83.62 |
||
|
48094
|
48094
MB351259 ROD, P/S OIL PUMP PISTON |
MB351259 |
US $4.44 |
||
|
48096
|
48096
MB553638 SEAL KIT, P/S OIL PUMP |
MB553638 |
US $26.64 |
||
|
48101A
|
48101A
MB553624 SHAFT ASSY, P/S OIL PUMP PROPELLER |
MB553624 |
US $111.74 |
||
|
48111
|
48111
MB266662 SPRING, P/S OIL PUMP FLOW CONTROL |
MB266662 |
from US $9.77 |
||
|
48112
|
48112
MB351249 SPRING, P/S OIL PUMP PLUNGER |
MB351249 |
US $3.26 |
||
|
48121A
|
48121A
MB266455 TERMINAL ASSY, P/S OIL PUMP |
MB266455 |
US $6.07 |
||
|
48125
|
48125
MB553093 VALVE, P/S OIL PUMP FLOW CONTROL |
MB553093 |
US $201.28 |
||
|
48125
|
48125
MB553094 VALVE, P/S OIL PUMP FLOW CONTROL |
MB553094 |
US $201.28 |
||
|
48125
|
48125
MB553095 VALVE, P/S OIL PUMP FLOW CONTROL |
MB553095 |
US $201.28 |
||
|
48938
|
48938
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
48942B
|
48942B
MB351258 SNAP RING, RR STEERING |
MB351258 |
US $3.83 |
||
|
48942C
|
48942C
MB501848 SNAP RING, P/S OIL PUMP INR |
MB501848 |
US $8.73 |
||
|
48944B
|
48944B
MB315534
O-RING, RR STEERING
|
MB315534 |
— | ||
|
48944C
|
48944C
MB266693 O-RING, P/S OIL PUMP INR |
MB266693 |
US $2.66 |
||
|
48944D
|
48944D
MB192820 O-RING, STEERING GEAR INR |
MB192820 |
US $4.24 |
||
|
48946C
|
48946C
MF430727 NUT, CYLINDER HEADJam,12 |
MF430727 |
from US $1.07 |
||
|
48950
|
48950
MB266657 PIN, RR STEERINGDowel,4x19.8 |
MB266657 |
US $3.26 |
||
|
48958B
|
48958B
MF241259 BOLT, CRANKCASEWasher assembled,8x35 |
MF241259 |
from US $0.90 |
||
|
48958C
|
48958C
MF241223 BOLT, ROCKER COVERWasher assembled,6x12 |
MF241223 |
from US $1.05 |
