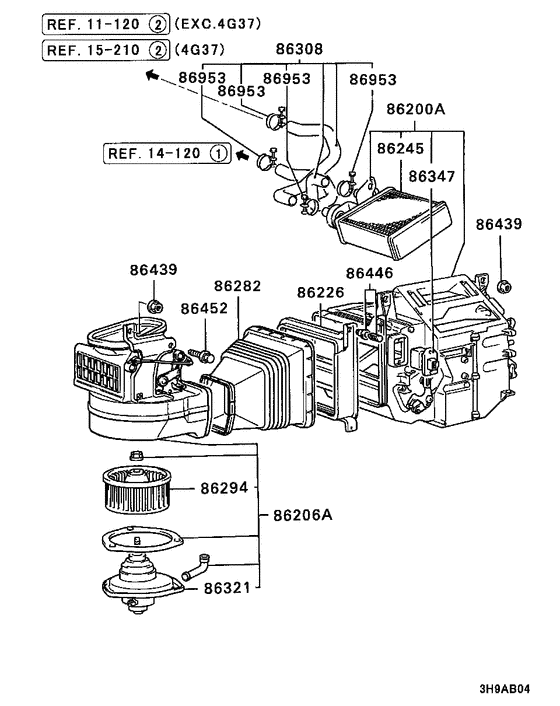

Heater unit & piping (INSTRUCTION CAR) Diagram Mitsubishi GALANT
- Year
- 1988 - 1992
- Sales region
- Japan
- Note
- DRIVER'S SCHOOL,3FA/T
- transmission
- 3FA/T
- grade
- DRIVER'S SCHOOL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86200A
|
86200A
MB609292 HEATER ASSY |
MB609292 |
US $272.32 |
||
|
86206A
|
86206A
MB568623 BLOWER ASSY, HEATER |
MB568623 |
US $205.72 |
||
|
86226
|
86226
MB568646 BRACKET, HEATER DUCT |
MB568646 |
US $102.12 |
||
|
86245
|
86245
MB439339
CORE, HEATER
|
MB439339 |
— | ||
|
86282
|
86282
MB568627 DUCT, HEATER AIR INTAKE |
MB568627 |
US $54.76 |
||
|
86294
|
86294
MB188931 FAN, HEATER BLOWER |
MB188931 |
US $25.08 |
||
|
86308
|
86308
MB527996 HOSE KIT, HEATER WATER |
MB527996 |
US $48.10 |
||
|
86321
|
86321
MB657875
MOTOR, HEATER BLOWER
|
MB657875 |
— | ||
|
86347
|
86347
MB609452
RESISTOR, HEATER
|
MB609452 |
— | ||
|
86439
|
86439
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86446
|
86446
MB476821 CLIP, SPLASH SHIELD |
MB476821 |
from US $1.17 |
||
|
86446
|
86446
MB716042 CLIP, GRILLE GUARD GARNISH |
MB716042 |
US $2.52 |
||
|
86452
|
86452
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
86953
|
86953
MA609047 CLIP, FUEL LINED=25 |
MA609047 |
from US $2.24 |
||
|
11 120
|
Cylinder head
11 120
|
||||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
