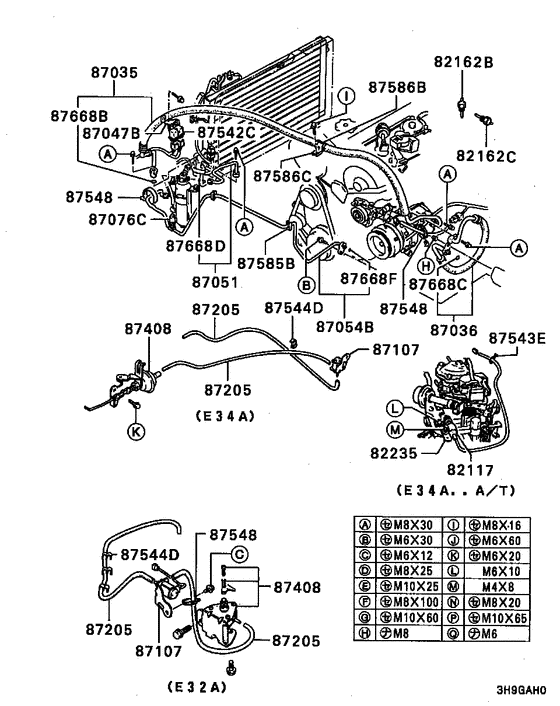

A/c condenser, piping (A/C CONDENSER & FAN,ETC.) Diagram Mitsubishi GALANT
- Year
- 1992 - 1993
- Sales region
- PUERTO RICO&GUAM
- Note
- PREMIUM LINE(SOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87035
|
87035
MB813448
HOSE,A/C COMPRESSOR DISCHARGE
|
MB813448 |
— | ||
|
87036
|
87036
MB813456
HOSE,A/C COMPRESSOR SUCTION
|
MB813456 |
— | ||
|
87051
|
87051
MB438707
PIPE, A/C CONDENSER OUTLET
|
MB438707 |
— | ||
|
87054B
|
87054B
MB657171
PIPE,A/C RECEIVER OUTLET
|
MB657171 |
— | ||
|
87076C
|
87076C
MB439574 SWITCH, A/C REFRIGERANT PRESSURE |
MB439574 |
US $76.22 |
||
|
87542C
|
87542C
MB657146
RELAY, A/C CONTROL EQUIP
|
MB657146 |
— | ||
|
87542C
|
87542C
MB946665
RELAY,A/C CONTROL EQUIP
|
MB946665 |
— | ||
|
87548
|
87548
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
87586B
|
87586B
MB568857
CLAMP, A/C PIPING
|
MB568857 |
— | ||
|
87586C
|
87586C
MB568858
CLAMP, A/C PIPING
|
MB568858 |
— | ||
|
87668B
|
87668B
MB276214 O-RING, A/C PIPING1/2; |
MB276214 |
US $6.51 |
||
|
87668C
|
87668C
MB276215 O-RING, A/C PIPING5/8; |
MB276215 |
US $0.92 |
||
|
87668D
|
87668D
MB276213 O-RING, A/C PIPING8 |
MB276213 |
from US $1.23 |
||
|
87668F
|
87668F
MB276213 O-RING, A/C PIPING8 |
MB276213 |
from US $1.23 |
