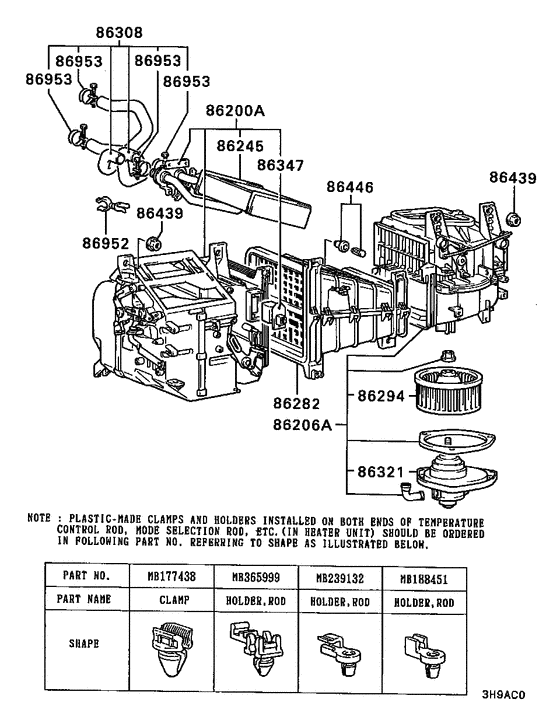

Heater unit & piping (HEATER UNIT & PIPING..-9005.3) Diagram Mitsubishi GALANT
- Year
- 1989 - 1990
- Sales region
- PUERTO RICO&GUAM
- Note
- PREMIUM LINE(DOHC/4WD),5FM/T FED
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86200A
|
86200A
MB438662 HEATER ASSY |
MB438662 |
US $288.60 |
||
|
86206A
|
86206A
MB568298
BLOWER ASSY,HEATER
|
MB568298 |
— | ||
|
86245
|
86245
MB439468
CORE, HEATER
|
MB439468 |
— | ||
|
86294
|
86294
MB188930
FAN, HEATER BLOWER
|
MB188930 |
— | ||
|
86308
|
86308
MB527995 HOSE KIT, HEATER WATER |
MB527995 |
US $44.40 |
||
|
86321
|
86321
MB568800
MOTOR, HEATER BLOWER
|
MB568800 |
— | ||
|
86347
|
86347
MB439839
RESISTOR, HEATER
|
MB439839 |
— | ||
|
86439
|
86439
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86952
|
86952
MS470478 CLIP, HEATER PIPING22.5-22.5 |
MS470478 |
US $5.62 |
||
|
86953
|
86953
MA609047 CLIP, FUEL LINED=25 |
MA609047 |
from US $2.24 |
