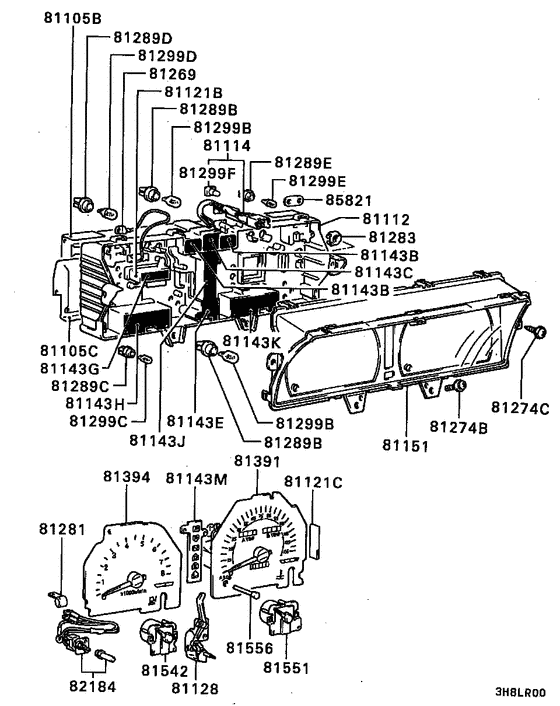

Meter,gauge & clock (METER CLUSTER) Diagram Mitsubishi GALANT
- Year
- 1989 - 1990
- Sales region
- PUERTO RICO&GUAM
- Note
- PREMIUM LINE(DOHC/4WD),5FM/T FED
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105B
|
81105B
MB562910
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB562910 |
— | ||
|
81105C
|
81105C
MB562909
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB562909 |
— | ||
|
81112
|
81112
MB562967
CASE,COMBINATION METER
|
MB562967 |
— | ||
|
81121C
|
81121C
MB562923
COVER, COMBINATION METER BULB
|
MB562923 |
— | ||
|
81128
|
81128
MB562991
HOLDER, COMBINATION METER
|
MB562991 |
— | ||
|
81143B
|
81143B
MB562831
LENS, COMBINATION METER INDICATOR
|
MB562831 |
— | ||
|
81143C
|
81143C
MB562943
LENS, COMBINATION METER INDICATOR
|
MB562943 |
— | ||
|
81143E
|
81143E
MB562944
LENS, COMBINATION METER INDICATOR
|
MB562944 |
— | ||
|
81143H
|
81143H
MB562949
LENS, COMBINATION METER INDICATOR
|
MB562949 |
— | ||
|
81143K
|
81143K
MB562950
LENS,COMBINATION METER INDICATOR
|
MB562950 |
— | ||
|
81151
|
81151
MB562787
PANEL,COMBINATION METER
|
MB562787 |
— | ||
|
81269
|
81269
MB562932
WIRE, INSTRUMENT PANEL METER
|
MB562932 |
— | ||
|
81274B
|
81274B
MS350125 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x16 |
MS350125 |
US $3.15 |
||
|
81274C
|
81274C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81289B
|
81289B
MB045009 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB045009 |
from US $1.91 |
||
|
81289C
|
81289C
MB066067 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB066067 |
from US $2.05 |
||
|
81289D
|
81289D
MB385170 SOCKET, INSTRUMENT PANEL METER3.4w green |
MB385170 |
US $8.62 |
||
|
81289E
|
81289E
MB562980
SOCKET, INSTRUMENT PANEL METER
|
MB562980 |
— | ||
|
81299B
|
81299B
MF820572 BULB, GLOVEBOX |
MF820572 |
from US $1.50 |
||
| replacement | |||||
|
81299B
|
81299B
MB439505
BULB, HEATER CONTROL EQUIP
|
MB439505 |
— | ||
|
81299C
|
81299C
MS820083 BULB, GEARSHIFT LINK |
MS820083 |
from US $2.15 |
||
|
81299D
|
81299D
MB146517 BULB, INSTRUMENT PANEL METER12v-3.4w |
MB146517 |
US $3.26 |
||
|
81299D
|
81299D
MB562973
BULB, INSTRUMENT PANEL METER
|
MB562973 |
— | ||
|
81299E
|
81299E
MB562970
BULB, INSTRUMENT PANEL METER
|
MB562970 |
— | ||
|
81299E
|
81299E
MB562971
BULB, INSTRUMENT PANEL METER
|
MB562971 |
— | ||
|
81391
|
81391
MB562367
Speedometer
|
MB562367 |
— | ||
|
81394
|
81394
MB680880
TACHOMETER
|
MB680880 |
— | ||
|
81542
|
81542
MB562792 GAUGE, FUEL |
MB562792 |
US $38.48 |
||
|
81551
|
81551
MB562797
GAUGE, WATER TEMPERATURE
|
MB562797 |
— | ||
|
81556
|
81556
MB562621
KNOB, TRIP METER
|
MB562621 |
— | ||
|
82184
|
82184
MB562992
SWITCH,COMBINATION METER COLOR CHANGE
|
MB562992 |
— | ||
|
85821
|
85821
MB562930
TERMINAL, WIRING
|
MB562930 |
— | ||
