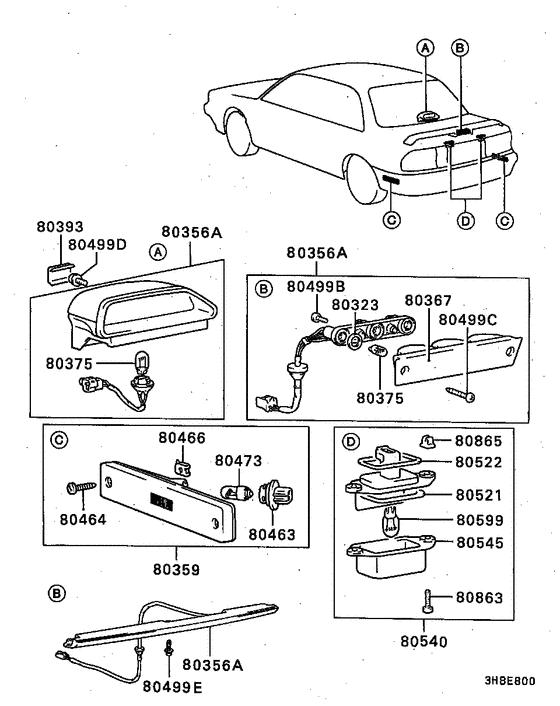

Rear exterior lamp (H.M.STOP,S/MRK,LICENSE PLATE LAMP) Diagram Mitsubishi GALANT
- Year
- 1989 - 1990
- Sales region
- PUERTO RICO&GUAM
- Note
- PREMIUM LINE(DOHC/4WD),5FM/T FED
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80323
|
80323
MB572216
GASKET, STOP LAMP
|
MB572216 |
— | ||
|
80356A
|
80356A
MB529092
LAMP ASSY, HIGH MOUNTED STOP
|
MB529092 |
— | ||
|
80359
|
80359
MB597500
LAMP KIT,SIDE MARKER & REFLECTOR,RR
|
MB597500 |
— | ||
|
80367
|
80367
MB617677
LENS, HIGH MOUNTED STOP LAMP
|
MB617677 |
— | ||
|
80375
|
80375
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80463
|
80463
MU805818 SOCKET, RR LAMP |
MU805818 |
from US $3.65 |
||
|
80464
|
80464
MB083844 SCREW, RR LAMPTapping,4x20 |
MB083844 |
US $2.96 |
||
|
80466
|
80466
MB530249 NUT, RR LAMPSpring,4 |
MB530249 |
US $2.07 |
||
|
80466
|
80466
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80473
|
80473
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80499B
|
80499B
MS450930 SCREW, FR DOOR TRIMTapping,4x12 |
MS450930 |
from US $1.40 |
||
|
80499C
|
80499C
MB605786 SCREW, RR LAMPWasher assembled,4x20 |
MB605786 |
US $3.40 |
||
|
80521
|
80521
MB529129 GASKET, LICENSE PLATE LAMP LENS |
MB529129 |
US $2.66 |
||
|
80522
|
80522
MB529130 GASKET, LICENSE PLATE LAMP BASE |
MB529130 |
US $2.22 |
||
|
80540
|
80540
MB597539
LAMP KIT,LICENSE PLATE
|
MB597539 |
— | ||
|
80545
|
80545
MB529128
LENS, LICENSE PLATE LAMP
|
MB529128 |
— | ||
|
80599
|
80599
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80863
|
80863
MB382433 SCREW, FR LAMPTapping,4x20 |
MB382433 |
US $3.40 |
||
|
80865
|
80865
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $1.07 |
