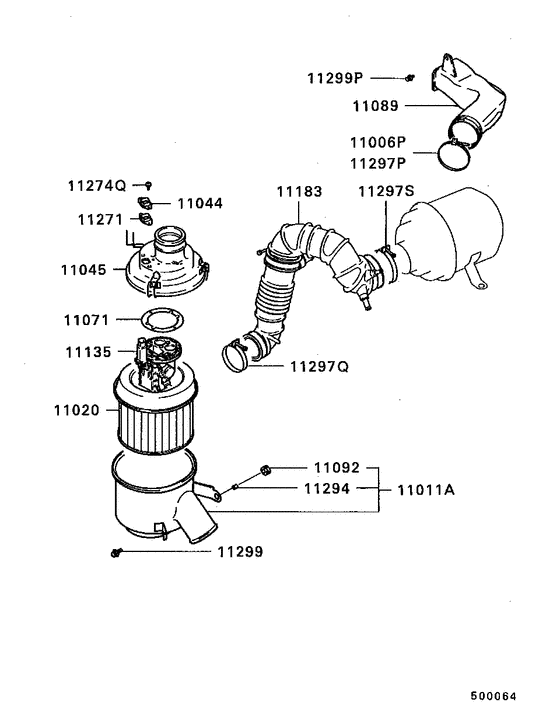

Air cleaner (ALL) Diagram Mitsubishi GALANT
- Year
- 1989 - 1992
- Sales region
- Japan
- Note
- VR-4 RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- VR-4 RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11006P
|
11006P
MB084140 BAND, FUEL TANKL=320 |
MB084140 |
US $2.19 |
||
|
11011A
|
11011A
MD620237 BODY ASSY, AIR CLEANER |
MD620237 |
US $334.88 |
||
|
11011A
|
11011A
MD620667 BODY ASSY, AIR CLEANER |
MD620667 |
US $343.62 |
||
|
11020
|
11020
MD603932
ELEMENT, AIR CLEANER
|
MD603932 |
— | ||
| replacement | |||||
|
11020
|
11020
MR571477 ELEMENT, AIR CLEANER |
MR571477 |
US $73.19 |
||
|
11044
|
11044
MD620235 COVER, AIR CLEANER FLOW SENSOR CONNECTOR |
MD620235 |
US $7.40 |
||
|
11045
|
11045
MD620233 COVER, AIR CLEANER |
MD620233 |
US $138.38 |
||
|
11045
|
11045
MD620668 COVER, AIR CLEANER |
MD620668 |
US $135.42 |
||
|
11071
|
11071
MD620238 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD620238 |
US $21.20 |
||
|
11089
|
11089
MD120838 DUCT, AIR CLEANER INTAKE |
MD120838 |
US $20.72 |
||
|
11092
|
11092
MD040886 INSULATOR, AIR CLEANER SUPPORT |
MD040886 |
US $3.83 |
||
|
11135
|
11135
MD129399 SENSOR, AIR CLEANER AIR FLOW |
MD129399 |
US $608.61 |
||
|
11135
|
11135
MD140241 SENSOR, AIR CLEANER AIR FLOW |
MD140241 |
US $671.22 |
||
|
11135
|
11135
MD171249
SENSOR, AIR CLEANER AIR FLOW
|
MD171249 |
— | ||
|
11183
|
11183
MD130334 DUCT, AIR CLEANER TO T/C |
MD130334 |
US $364 |
||
|
11183
|
11183
MD170071 DUCT, AIR CLEANER TO CARB |
MD170071 |
US $391.66 |
||
|
11271
|
11271
MD620236 GROMMET, AIR CLEANER |
MD620236 |
US $6.22 |
||
|
11274Q
|
11274Q
MF351284
SCREW, AIR CLEANER INR
|
MF351284 |
— | ||
|
11294
|
11294
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297P
|
11297P
MD122529 CLAMP, AIR CLEANER INR83 |
MD122529 |
from US $6.43 |
||
|
11297Q
|
11297Q
MD122526 CLAMP, AIR CLEANER71 |
MD122526 |
US $7.25 |
||
|
11297Q
|
11297Q
MD122528 CLAMP, AIR CLEANER78 |
MD122528 |
US $4.92 |
||
|
11297Q
|
11297Q
MD124342 CLAMP, AIR CLEANER75 |
MD124342 |
US $4.14 |
||
|
11297S
|
11297S
MD122530
CLAMP, AIR CLEANER
|
MD122530 |
— | ||
|
11299
|
11299
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $3.97 |
||
|
11299
|
11299
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
11299P
|
11299P
MF244826 BOLTWasher assembled,6x20 |
MF244826 |
from US $1.03 |
||
