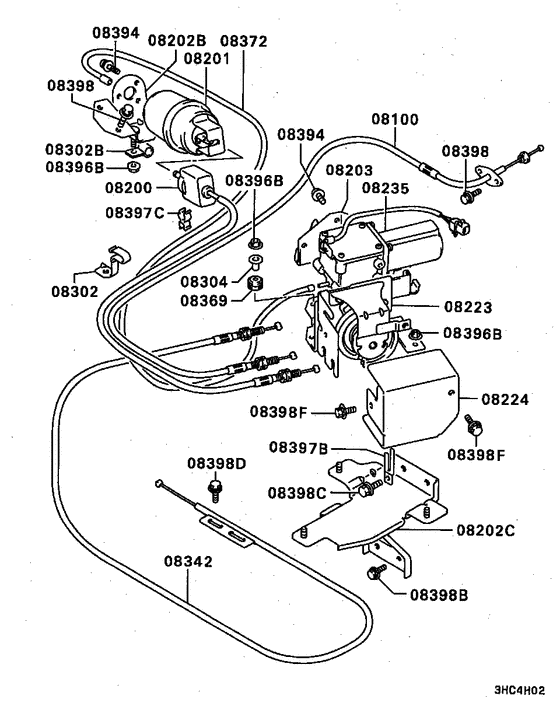

Speed control (CRUISE CONTROL, '91MODEL-) Diagram Mitsubishi GALANT
- Year
- 1990 - 1992
- Sales region
- MMNA
- Note
- PREMIUM LINE(DOHC/4WD),4FA/T CAL
- drive
- 4WD/4WD
- transmission
- 4FA/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08100
|
08100
MB539371
CABLE,ACCEL
|
MB539371 |
— | ||
|
08100
|
08100
MB697201
CABLE,ACCEL
|
MB697201 |
— | ||
|
08200
|
08200
MB539376 CABLE, CRUISE CONTROL |
MB539376 |
US $43.20 |
||
|
08200
|
08200
MB697205 CABLE, CRUISE CONTROL |
MB697205 |
US $39.60 |
||
|
08201
|
08201
MB686898
ACTUATOR, CRUISE CONTROL
|
MB686898 |
— | ||
|
08202B
|
08202B
MB685026 BRACKET, CRUISE CONTROL ACTUATOR |
MB685026 |
US $95.04 |
||
|
08202C
|
08202C
MB685029
BRACKET,CRUISE CONTROL ACTUATOR
|
MB685029 |
— | ||
|
08203
|
08203
MB697197 BRACKET, CRUISE CONTROL VACUUM PUMP |
MB697197 |
US $82.80 |
||
|
08223
|
08223
MB852001
LINK,CRUISE CONTROL ACTUATOR
|
MB852001 |
— | ||
|
08224
|
08224
MB686494
PROTECTOR, CRUISE CONTROL ACTUATOR LINK
|
MB686494 |
— | ||
|
08235
|
08235
MB666702
VACUUM PUMP, CRUISE CONTROL
|
MB666702 |
— | ||
|
08302
|
08302
MB852000 CLAMP, CRUISE CONTROL ELECTRICALS |
MB852000 |
US $7.06 |
||
|
08302B
|
08302B
MB852018 CLAMP, CRUISE CONTROL ELECTRICALS |
MB852018 |
US $3.02 |
||
|
08304
|
08304
MB539492 SPACER, CRUISE CONTROL EQUIP6x9.5 |
MB539492 |
US $2.02 |
||
|
08342
|
08342
MB697204
CABLE, ENG IDLE CONTROL
|
MB697204 |
— | ||
|
08369
|
08369
MB322032 CUSHION, CRUISE CONTROL EQUIP |
MB322032 |
US $8.50 |
||
|
08372
|
08372
MB852013 HOSE, CRUISE CONTROL EQUIP3x820 |
MB852013 |
US $5.90 |
||
|
08394
|
08394
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.86 |
||
|
08396B
|
08396B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.71 |
||
|
08397C
|
08397C
MB344337
CLIP, FUEL TANK
|
MB344337 |
— | ||
|
08398
|
08398
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.71 |
||
|
08398B
|
08398B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.03 |
||
|
08398C
|
08398C
MF247249 BOLTWasher assembled,8x16 |
MF247249 |
from US $1.65 |
||
|
08398D
|
08398D
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
from US $1.31 |
||
|
08398F
|
08398F
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.31 |
