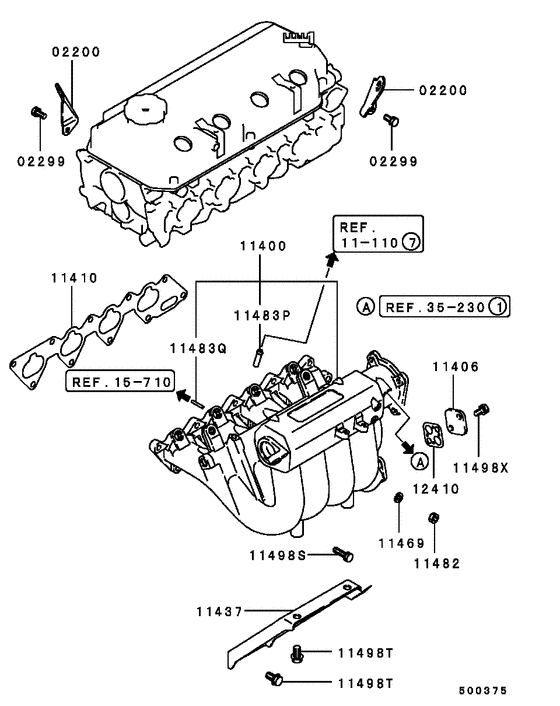

Inlet manifold (DOHC) Diagram Mitsubishi GALANT
- Year
- 1994 - 1996
- Sales region
- Japan
- Note
- VISAGE-S/TOURING(9508-)(DOHC),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- VISAGE-S/TOURIN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200
|
02200
MD183997
ENGINE HANGER
|
MD183997 |
— | ||
| replacement | |||||
|
02200
|
02200
MD196781 ENGINE HANGER |
MD196781 |
US $7.66 |
||
|
02200
|
02200
MD196781 ENGINE HANGER |
MD196781 |
US $7.66 |
||
|
02299
|
02299
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
02299
|
02299
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
11400
|
11400
MD192868 MANIFOLD, INLET |
MD192868 |
US $467.38 |
||
|
11400
|
11400
MD315483 MANIFOLD, INLET |
MD315483 |
US $384.38 |
||
|
11406
|
11406
MD103510 COVER, INLET MANIFOLD |
MD103510 |
US $27.36 |
||
|
11410
|
11410
MD180024 GASKET, INLET MANIFOLD |
MD180024 |
US $11.84 |
||
|
11410
|
11410
MD188529 GASKET, INLET MANIFOLD |
MD188529 |
US $14.36 |
||
|
11437
|
11437
MD173273 STAY, INLET MANIFOLD |
MD173273 |
US $49.58 |
||
|
11437
|
11437
MD197096 STAY, INLET MANIFOLD |
MD197096 |
US $79.18 |
||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11482
|
11482
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
11482
|
11482
MF430151 NUT, RR AXLEJam,8 |
MF430151 |
US $2.05 |
||
|
11483P
|
11483P
MD024599 NIPPLE, ROCKER COVER8 |
MD024599 |
US $5.03 |
||
|
11483P
|
11483P
MD102444 NIPPLE, ROCKER COVERD=8 |
MD102444 |
US $2.60 |
||
|
11483Q
|
11483Q
MD008484 NIPPLE, INLET MANIFOLD4 |
MD008484 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11498S
|
11498S
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
11498T
|
11498T
MF140056 BOLT, ENG BREATHERFlange,10x16 |
MF140056 |
US $1.37 |
||
|
11498X
|
11498X
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12410
|
12410
MD183535 GASKET, EGR VALVE |
MD183535 |
US $2.46 |
||
|
11 110
|
Rocker cover
11 110
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
