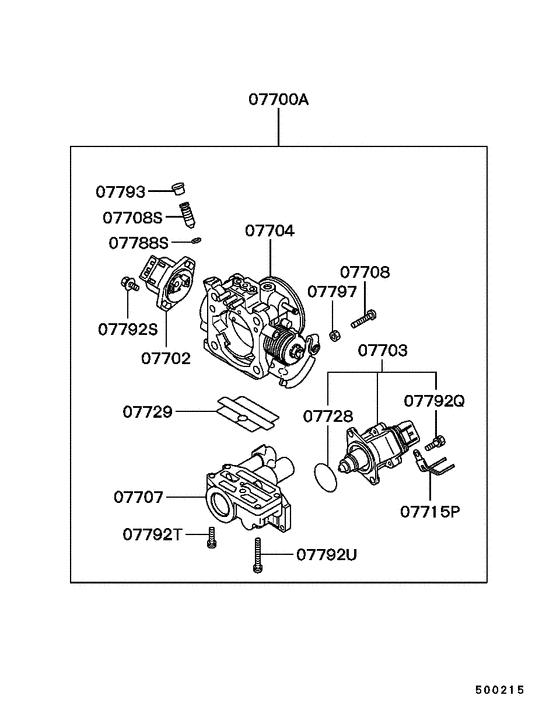

Injector & throttle body (DOHC (INNER PARTS)) Diagram Mitsubishi GALANT
- Year
- 1994 - 1995
- Sales region
- Japan
- Note
- VISAGE TOURING(DOHC),5FM/T(-9507)
- drive
- 2WD
- transmission
- 5FM/T
- grade
- VISAGE TOURING
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07700A
|
07700A
MD315484 Throttle Body AssyAc54-071 |
MD315484 |
US $1,256.53 |
||
|
07702
|
07702
MD614488 SENSOR, THROTTLE BODY THROTTLE |
MD614488 |
US $293.38 |
||
|
07703
|
07703
MD614368
SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL
|
MD614368 |
— | ||
| replacement | |||||
|
07703
|
07703
MD628051 SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL |
MD628051 |
US $411.01 |
||
|
07704
|
07704
MD614730 BODY, THROTTLE BODY MIXING |
MD614730 |
US $599.87 |
||
|
07707
|
07707
MD614559 VALVE, FAST IDLE AIR |
MD614559 |
US $320.42 |
||
|
07708
|
07708
MD614304 ADJUSTING SCREW, THROTTLE BODY SPEED |
MD614304 |
US $4.79 |
||
|
07708S
|
07708S
MD614948 ADJUSTING SCREW, THROTTLE BODY SPEED |
MD614948 |
from US $3.53 |
||
|
07715P
|
07715P
MD614246 CLIP, THROTTLE BODY |
MD614246 |
US $4.38 |
||
|
07728
|
07728
MD614417 O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO |
MD614417 |
from US $7.14 |
||
|
07729
|
07729
MD614406 O-RING, THROTTLE BODY FAST IDLE AIR VALVE |
MD614406 |
from US $12.58 |
||
|
07788S
|
07788S
MD608806 O-RING, THROTTLE BODY INR |
MD608806 |
from US $3.74 |
||
|
07792Q
|
07792Q
MD614285
SCREW, THROTTLE BODY INR
|
MD614285 |
— | ||
|
07792S
|
07792S
MD614528 SCREW, THROTTLE BODY INR |
MD614528 |
US $4.38 |
||
|
07792T
|
07792T
MF350051 SCREW, CARB INR |
MF350051 |
US $3.01 |
||
|
07792U
|
07792U
MD614416 SCREW, THROTTLE BODY INR |
MD614416 |
US $6.29 |
||
|
07793
|
07793
MD614532 CAP, THROTTLE BODY INR |
MD614532 |
US $12.45 |
||
|
07797
|
07797
MD614305 NUT, THROTTLE BODY |
MD614305 |
US $2.74 |
||
