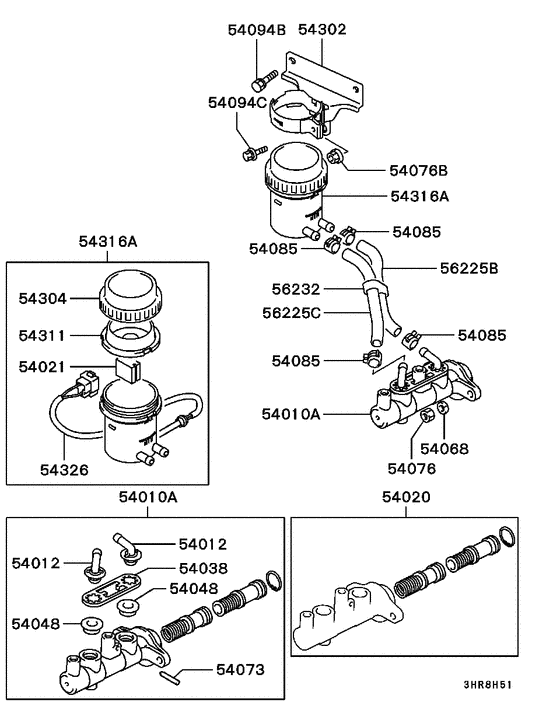

Brake master cylinder (EXC.ABS) Diagram Mitsubishi GALANT
- Year
- 1993 - 1998
- Sales region
- MMNA/MMNA
- Note
- S/DE(SOHC),5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- S/DE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54010A
|
54010A
MB895065
CYLINDER ASSY,BRAKE MASTER
|
MB895065 |
— | ||
|
54010A
|
54010A
MB928692
CYLINDER ASSY,BRAKE MASTER
|
MB928692 |
— | ||
|
54010A
|
54010A
MR235350
CYLINDER ASSY,BRAKE MASTER
|
MR235350 |
— | ||
|
54012
|
54012
MB950162 COLLAR, BRAKE M/CYL |
MB950162 |
US $22.94 |
||
|
54012
|
54012
MR128727
COLLAR,BRAKE M/CYL
|
MR128727 |
— | ||
|
54020
|
54020
MR128752 CYLINDER KIT, BRAKE MASTER15/16; |
MR128752 |
US $129.50 |
||
|
54020
|
54020
MR235360
CYLINDER KIT,BRAKE MASTER
|
MR235360 |
— | ||
|
54020
|
54020
MR307460 CYLINDER KIT, BRAKE MASTER1; |
MR307460 |
US $134.68 |
||
|
54021
|
54021
MB151326
FLOAT, BRAKE FLUID RESERVOIR
|
MB151326 |
— | ||
|
54021
|
54021
MB316237 FLOAT, BRAKE FLUID RESERVOIR |
MB316237 |
US $10.21 |
||
|
54038
|
54038
MR128728 RETAINER, BRAKE M/CYL UNION |
MR128728 |
US $13.47 |
||
|
54048
|
54048
MR128726 SEAL, BRAKE M/CYL TO FLUID RESERVOIR |
MR128726 |
US $7.55 |
||
|
54048
|
54048
MR235356
SEAL,BRAKE M/CYL TO FLUID RESERVOIR
|
MR235356 |
— | ||
|
54068
|
54068
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
54073
|
54073
MB950159 PIN, BRAKE M/CYL |
MB950159 |
US $3.40 |
||
|
54073
|
54073
MR128729 PIN, BRAKE M/CYL |
MR128729 |
US $8.44 |
||
|
54076
|
54076
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
54076B
|
54076B
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54076B
|
54076B
MS440518 NUT, ENG OIL COOLERWasher assembled,8 |
MS440518 |
from US $0.82 |
||
|
54085
|
54085
MB058362 CLIP, FUEL VAPOR CONTROL LINE13.2 |
MB058362 |
US $3.28 |
||
|
54094B
|
54094B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
54094B
|
54094B
MF240651 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x16 |
MF240651 |
US $3.15 |
||
|
54094B
|
54094B
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
54094C
|
54094C
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
54094C
|
54094C
MF244224 BOLT, A/C PIPINGWasher assembled,6x16 |
MF244224 |
US $3.28 |
||
|
54302
|
54302
MB895041
BRACKET,BRAKE FLUID RESERVOIR
|
MB895041 |
— | ||
|
54304
|
54304
MB895812
CAP, BRAKE FLUID RESERVOIR
|
MB895812 |
— | ||
| replacement | |||||
|
54304
|
54304
MB895999 CAP, BRAKE FLUID RESERVOIR |
MB895999 |
from US $10.26 |
||
|
54304
|
54304
MB895999 CAP, BRAKE FLUID RESERVOIR |
MB895999 |
from US $10.26 |
||
|
54311
|
54311
MB895813 DIAPHRAGM, BRAKE FLUID RESERVOIR |
MB895813 |
from US $11.91 |
||
|
54316A
|
54316A
MB534534 RESERVOIR ASSY, BRAKE FLUID |
MB534534 |
US $80.71 |
||
|
54316A
|
54316A
MB534535
RESERVOIR ASSY, BRAKE FLUID
|
MB534535 |
— | ||
|
54316A
|
54316A
MB928052
RESERVOIR ASSY,BRAKE FLUID
|
MB928052 |
— | ||
|
54316A
|
54316A
MR128096
RESERVOIR ASSY,BRAKE FLUID
|
MR128096 |
— | ||
|
54326
|
54326
MB618382 SWITCH, BRAKE FLUID LEVEL INDICATOR |
MB618382 |
US $39.96 |
||
|
54326
|
54326
MB699916
SWITCH, BRAKE FLUID LEVEL INDICATOR
|
MB699916 |
— | ||
|
56225B
|
56225B
MB082024 HOSE, CLUTCH FLUID RESERVOIR9x1100 |
MB082024 |
from US $8 |
||
|
56225B
|
56225B
MB895038
HOSE,BRAKE M/CYL FLUID RESERVOIR
|
MB895038 |
— | ||
|
56225B
|
56225B
MR128621
HOSE,BRAKE M/CYL FLUID RESERVOIR
|
MR128621 |
— | ||
|
56225C
|
56225C
MB082024 HOSE, CLUTCH FLUID RESERVOIR9x1100 |
MB082024 |
from US $8 |
||
|
56225C
|
56225C
MB895037
HOSE,BRAKE M/CYL FLUID RESERVOIR
|
MB895037 |
— | ||
|
56225C
|
56225C
MR128620
HOSE,BRAKE M/CYL FLUID RESERVOIR
|
MR128620 |
— | ||
|
56232
|
56232
MB044859 PAD, BRAKE FLUID RESERVOIR HOSE |
MB044859 |
US $8.76 |
||
