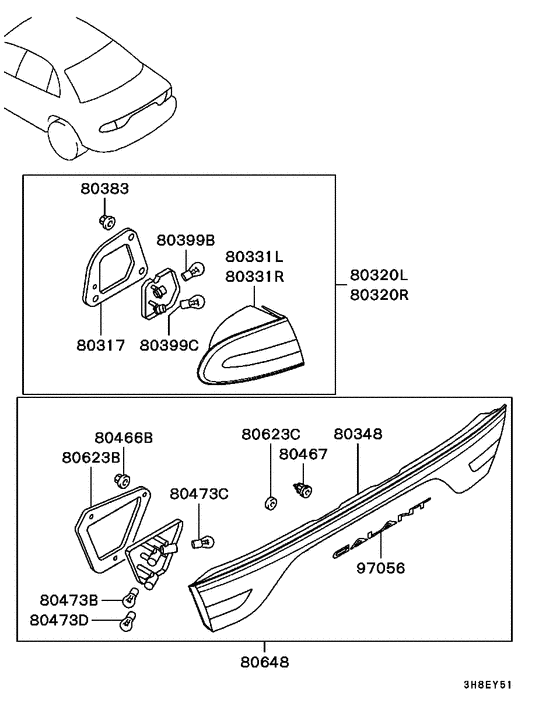

Rear exterior lamp (COMBINATION LAMP(-'96MODEL)) Diagram Mitsubishi GALANT
- Year
- 1993 - 1998
- Sales region
- MMNA/MMNA
- Note
- S/DE(SOHC),5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- S/DE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80317
|
80317
MB944315 GASKET, RR COMBINATION LAMP |
MB944315 |
US $10.80 |
||
|
80320L
|
80320L
MR124299
LAMP KIT,COMBINATION,RR LH
|
MR124299 |
— | ||
|
80320L
|
80320L
MR296361
LAMP KIT,COMBINATION,RR LH
|
MR296361 |
— | ||
|
80320R
|
80320R
MR124300
LAMP KIT,COMBINATION,RR RH
|
MR124300 |
— | ||
|
80320R
|
80320R
MR296362
LAMP KIT,COMBINATION,RR RH
|
MR296362 |
— | ||
|
80331L
|
80331L
MB944301
LAMP UNIT,COMBINATION,RR LH
|
MB944301 |
— | ||
|
80331L
|
80331L
MR322933
LAMP UNIT,COMBINATION,RR LH
|
MR322933 |
— | ||
|
80331R
|
80331R
MB944302
LAMP UNIT,COMBINATION,RR RH
|
MB944302 |
— | ||
|
80331R
|
80331R
MR322934
LAMP UNIT,COMBINATION,RR RH
|
MR322934 |
— | ||
|
80348
|
80348
MB944305
LAMP UNIT,RR LID
|
MB944305 |
— | ||
|
80383
|
80383
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
80399B
|
80399B
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80399C
|
80399C
MS820944 BULB,HEADLAMP |
MS820944 |
US $3.26 |
||
|
80399C
|
80399C
MS820948
BULB,FR TURN SIGNAL LAMP
|
MS820948 |
— | ||
|
80466B
|
80466B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80467
|
80467
MB622930 GROMMET, FOG LAMP14 |
MB622930 |
US $4.92 |
||
|
80473B
|
80473B
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80473C
|
80473C
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80473D
|
80473D
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80623B
|
80623B
MB944316 GASKET, RR LID LAMP LENS |
MB944316 |
US $7.10 |
||
|
80623B
|
80623B
MR322921
GASKET,RR LID LAMP LENS
|
MR322921 |
— | ||
|
80623C
|
80623C
MB859085 GASKET, RR COMBINATION LAMP |
MB859085 |
US $2.52 |
||
|
80648
|
80648
MR124301
LAMP KIT,RR LID
|
MR124301 |
— | ||
|
97056
|
97056
MR300506
MARK,GALANT
|
MR300506 |
— |
