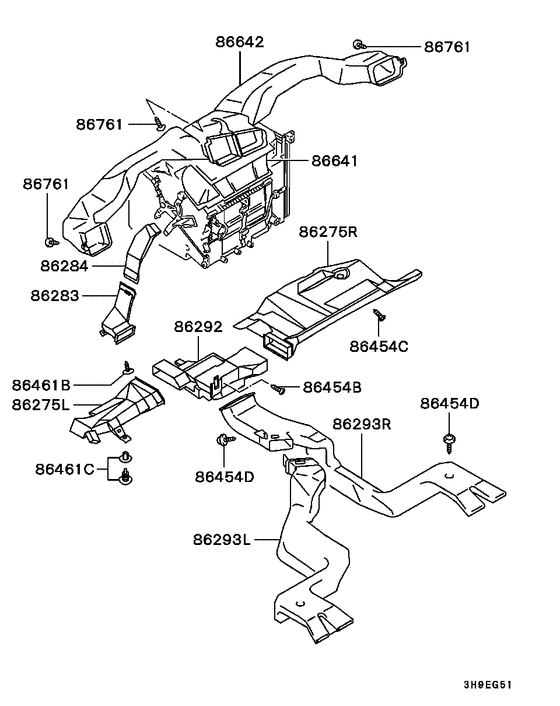

Ventilation & duct (DISTRIBUTION DUCT) Diagram Mitsubishi GALANT
- Year
- 1993 - 1998
- Sales region
- MMNA/MMNA
- Note
- S/DE(SOHC),5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- S/DE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86275L
|
86275L
MB813708
DUCT,FOOT HEATER,LH
|
MB813708 |
— | ||
|
86275R
|
86275R
MR189096
DUCT,FOOT HEATER,RH
|
MR189096 |
— | ||
|
86275R
|
86275R
MR189097
DUCT,FOOT HEATER,RH
|
MR189097 |
— | ||
|
86275R
|
86275R
MR360210
DUCT,FOOT HEATER,RH
|
MR360210 |
— | ||
|
86283
|
86283
MB917758
DUCT,LAP HEATER
|
MB917758 |
— | ||
|
86284
|
86284
MB813710
DUCT,LAP HEATER,CTR
|
MB813710 |
— | ||
|
86292
|
86292
MR175056
DUCT,RR HEATER,FR
|
MR175056 |
— | ||
|
86292
|
86292
MR360209
DUCT,RR HEATER,FR
|
MR360209 |
— | ||
|
86454B
|
86454B
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
86454C
|
86454C
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
86454D
|
86454D
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
86461B
|
86461B
MB189333 CLIP, SCUFF PLATE |
MB189333 |
US $2.46 |
||
|
86461C
|
86461C
MB963300 CLIP, HEADLINING |
MB963300 |
US $2.81 |
||
|
86641
|
86641
MB813698
DUCT,VENTILATOR,CTR
|
MB813698 |
— | ||
|
86641
|
86641
MB899362
DUCT,VENTILATOR,CTR
|
MB899362 |
— | ||
|
86641
|
86641
MR298691
DUCT,VENTILATOR,CTR
|
MR298691 |
— | ||
|
86642
|
86642
MB813702
DUCT,VENTILATOR AIR DISTRIBUTION
|
MB813702 |
— | ||
|
86761
|
86761
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
