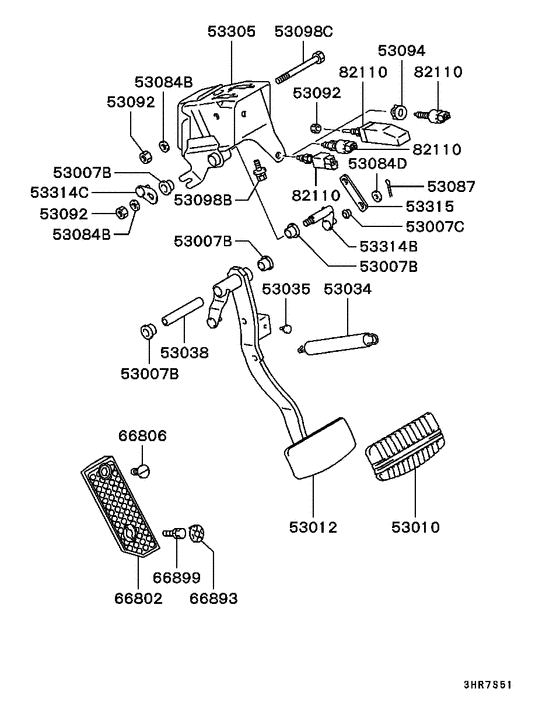

Brake & clutch pedal (A/T) Diagram Mitsubishi GALANT
- Year
- 1993 - 1994
- Sales region
- MMNA/MMNA
- Note
- GS(DOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53007B
|
53007B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
US $3.01 |
||
|
53007C
|
53007C
MB367301 BUSHING, BRAKE PEDAL8x8 |
MB367301 |
US $4.29 |
||
|
53010
|
53010
MB599609 PAD, BRAKE PEDAL61x132 |
MB599609 |
from US $4.43 |
||
|
53012
|
53012
MB891531
PEDAL,BRAKE
|
MB891531 |
— | ||
|
53012
|
53012
MR102746 PEDAL, BRAKE |
MR102746 |
US $84.36 |
||
|
53034
|
53034
MB012212 SPRING, BRAKE PEDAL RETURN |
MB012212 |
US $5.88 |
||
|
53034
|
53034
MB534332 SPRING, BRAKE PEDAL RETURN |
MB534332 |
US $12.58 |
||
|
53035
|
53035
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
53035
|
53035
MB892029 STOPPER, CLUTCH PEDAL |
MB892029 |
US $5.62 |
||
|
53038
|
53038
MB891997 SPACER, CLUTCH PEDAL |
MB891997 |
US $8.76 |
||
|
53084B
|
53084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53084D
|
53084D
MS450035 WASHER, TIMING POWER TRAIN CASEPlain,8 |
MS450035 |
US $1.92 |
||
|
53087
|
53087
MF472026 PIN, BRAKE PEDALSplit,1.6x20 |
MF472026 |
US $1.04 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098B
|
53098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53098C
|
53098C
MB892115 BOLT, BRAKE PEDAL10x115 |
MB892115 |
US $6.96 |
||
|
53305
|
53305
MB948563
MEMBER,PEDAL SUPPORT
|
MB948563 |
— | ||
|
53305
|
53305
MR103693
MEMBER,PEDAL SUPPORT
|
MR103693 |
— | ||
|
53305
|
53305
MR103694 MEMBER, PEDAL SUPPORT |
MR103694 |
US $149.48 |
||
|
53314B
|
53314B
MB891527 LEVER, BRAKE PEDAL SHIFT LOCK |
MB891527 |
US $16.28 |
||
|
53314C
|
53314C
MB599328 LEVER, BRAKE PEDAL SHIFT LOCK |
MB599328 |
US $6.36 |
||
|
53315
|
53315
MB599327 LINK, BRAKE PEDAL SHIFT LOCK LEVER |
MB599327 |
US $7.99 |
||
|
66802
|
66802
MB946501
FOOTREST
|
MB946501 |
— | ||
|
66806
|
66806
MB662196 CLIP, FOOTREST6 |
MB662196 |
US $3.28 |
||
|
66893
|
66893
MB946502 CAP, FOOTREST |
MB946502 |
US $6.70 |
||
|
66899
|
66899
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82110
|
82110
MB596608 SWITCH, STOP LAMP |
MB596608 |
from US $59.20 |
||
|
82110
|
82110
MB863946 SWITCH, STOP LAMP |
MB863946 |
US $135.42 |
