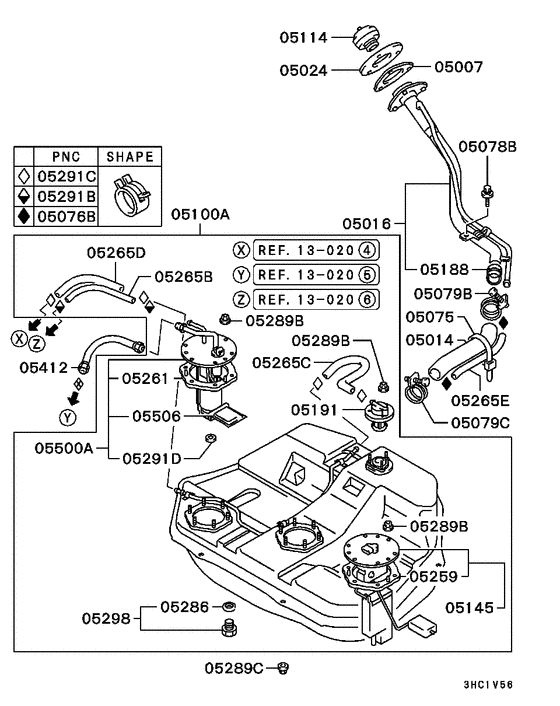

Fuel tank (GAUGE SEPARATE TYPE(W/O SENSOR)) Diagram Mitsubishi GALANT
- Year
- 1993 - 1994
- Sales region
- MMNA/MMNA
- Note
- GS(DOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MR100452
HOSE, FUEL FILLER
|
MR100452 |
— | ||
|
05014
|
05014
MR134402
HOSE,FUEL FILLER
|
MR134402 |
— | ||
|
05016
|
05016
MR100449 NECK,FUEL FILLER |
MR100449 |
US $112.48 |
||
|
05016
|
05016
MR134401 NECK,FUEL FILLER |
MR134401 |
US $285.64 |
||
|
05024
|
05024
MB504932 PLATE, FUEL FILLER NECK REINF |
MB504932 |
US $8.62 |
||
|
05075
|
05075
MB249340 BAND, FUEL TANK PROTECTORL=219.5 |
MB249340 |
US $2.74 |
||
|
05076B
|
05076B
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05078B
|
05078B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
05079B
|
05079B
MF661123 CLAMP, AIR CLEANER48 |
MF661123 |
US $5.75 |
||
|
05079C
|
05079C
MF661123 CLAMP, AIR CLEANER48 |
MF661123 |
US $5.75 |
||
|
05100A
|
05100A
MB927013
FUEL TANK ASSY
|
MB927013 |
— | ||
|
05100A
|
05100A
MR134867
FUEL TANK ASSY
|
MR134867 |
— | ||
|
05114
|
05114
MB504900
CAP, FUEL TANK
|
MB504900 |
— | ||
|
05114
|
05114
MR342184
CAP,FUEL TANK
|
MR342184 |
— | ||
|
05145
|
05145
MB863958
GAUGE UNIT, FUEL TANK
|
MB863958 |
— | ||
|
05145
|
05145
MR178743
GAUGE UNIT, FUEL TANK
|
MR178743 |
— | ||
|
05145
|
05145
MR241078 GAUGE UNIT, FUEL TANK |
MR241078 |
from US $158.69 |
||
|
05188
|
05188
MB867389 VALVE, FUEL FILLER NECK |
MB867389 |
US $9.99 |
||
|
05191
|
05191
MB595490
VALVE, FUEL TANK SAFETY
|
MB595490 |
— | ||
| replacement | |||||
|
05191
|
05191
MR526922 VALVE, FUEL TANK SAFETY |
MR526922 |
from US $51.05 |
||
|
05259
|
05259
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05261
|
05261
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05265B
|
05265B
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05265C
|
05265C
MB866268
HOSE, FUEL TANK
|
MB866268 |
— | ||
|
05265D
|
05265D
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265E
|
05265E
MR100453
HOSE, FUEL TANK
|
MR100453 |
— | ||
|
05265E
|
05265E
MR271454
HOSE,FUEL TANK
|
MR271454 |
— | ||
|
05286
|
05286
MR100054 GASKET, FUEL TANK8 |
MR100054 |
from US $1.13 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
05289C
|
05289C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
05291B
|
05291B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291D
|
05291D
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05298
|
05298
1715A135 PLUG, FUEL TANK8 |
1715A135 |
from US $2.63 |
||
|
05412
|
05412
MB433988
HOSE, FUEL FILTER HIGH PRESSURE
|
MB433988 |
— | ||
| replacement | |||||
|
05412
|
05412
MR161794 HOSE, FUEL HIGH PRESSURE |
MR161794 |
US $84.82 |
||
|
05412
|
05412
MR134863
HOSE,FUEL HIGH PRESSURE
|
MR134863 |
— | ||
|
05412
|
05412
MR266834
HOSE, FUEL HIGH PRESSURE
|
MR266834 |
— | ||
|
05500A
|
05500A
MR134868
FUEL PUMP ASSY
|
MR134868 |
— | ||
|
05506
|
05506
MB890047 FILTER, FUEL PUMP |
MB890047 |
from US $23.79 |
||
|
05506
|
05506
MB890617 FILTER, FUEL PUMP |
MB890617 |
US $59.20 |
||
|
