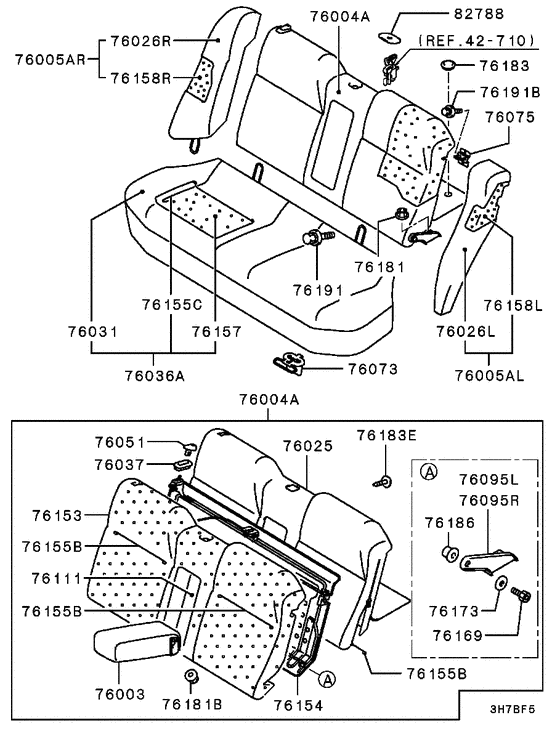

Rear seat (TRUNK THROUGH) Diagram Mitsubishi GALANT
- Year
- 1993 - 1994
- Sales region
- MMNA/MMNA
- Note
- GS(DOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76003
|
76003
MR139992
ARMREST,RR SEAT
|
MR139992 |
— | ||
|
76004A
|
76004A
MR711759
BACK ASSY,RR SEAT
|
MR711759 |
— | ||
|
76005AL
|
76005AL
MR711791
BACK ASSY,RR SEAT SIDE,LH
|
MR711791 |
— | ||
|
76005AR
|
76005AR
MR711796
BACK ASSY,RR SEAT SIDE,RH
|
MR711796 |
— | ||
|
76025
|
76025
MR718913
COVER,RR SEAT BACK
|
MR718913 |
— | ||
|
76026L
|
76026L
MR711801
COVER,RR SEAT SIDE BACK,LH
|
MR711801 |
— | ||
|
76026R
|
76026R
MR711806
COVER,RR SEAT SIDE BACK,RH
|
MR711806 |
— | ||
|
76031
|
76031
MR711783
COVER,RR SEAT CUSHION
|
MR711783 |
— | ||
|
76036A
|
76036A
MR711776
CUSHION ASSY,RR SEAT
|
MR711776 |
— | ||
|
76037
|
76037
MR177522
GARNISH,RR SEAT FOLDING KNOB
|
MR177522 |
— | ||
|
76051
|
76051
MR177519
KNOB,RR SEAT FOLDING
|
MR177519 |
— | ||
|
76073
|
76073
MB873947 STOPPER, RR SEAT |
MB873947 |
from US $2.03 |
||
|
76075
|
76075
MB874878 STRIKER, RR SEAT |
MB874878 |
US $17.76 |
||
|
76095L
|
76095L
MB940437
HINGE,RR SEAT SIDE,LH
|
MB940437 |
— | ||
|
76095R
|
76095R
MB940438
HINGE,RR SEAT SIDE,RH
|
MB940438 |
— | ||
|
76111
|
76111
MR718908
BOARD,RR SEAT BACK ARMREST
|
MR718908 |
— | ||
|
76153
|
76153
MB940427
PAD,RR SEAT BACK
|
MB940427 |
— | ||
|
76154
|
76154
MB940430
FRAME,RR SEAT BACK
|
MB940430 |
— | ||
|
76155B
|
76155B
MR139589
WIRE,RR SEAT TRIMMING
|
MR139589 |
— | ||
|
76155B
|
76155B
MR139590 WIRE, RR SEAT TRIMMING2.0x320 |
MR139590 |
US $2.52 |
||
|
76155B
|
76155B
MR139591 WIRE, RR SEAT TRIMMING2.0x100 |
MR139591 |
US $1.92 |
||
|
76155C
|
76155C
MR139586 WIRE, RR SEAT TRIMMING2.0x340 |
MR139586 |
US $2.52 |
||
|
76155C
|
76155C
MR139601
WIRE, RR SEAT TRIMMING
|
MR139601 |
— | ||
|
76155C
|
76155C
MR139602 WIRE, RR SEAT TRIMMING2.0x220 |
MR139602 |
US $2.22 |
||
|
76155C
|
76155C
MR139603
WIRE,RR SEAT TRIMMING
|
MR139603 |
— | ||
|
76157
|
76157
MR139597
PAD,RR SEAT CUSHION
|
MR139597 |
— | ||
|
76158L
|
76158L
MR139581
PAD,RR SEAT SIDE BACK,LH
|
MR139581 |
— | ||
|
76158R
|
76158R
MR139582
PAD,RR SEAT SIDE BACK,RH
|
MR139582 |
— | ||
|
76169
|
76169
MR140261
SCREW, RR SEAT
|
MR140261 |
— | ||
|
76173
|
76173
MF450271 WASHER, FUEL LINEPlain,6 |
MF450271 |
US $2.60 |
||
|
76181
|
76181
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
76181B
|
76181B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
76183
|
76183
MB147332 CLIP, GUARD BAR5.9 |
MB147332 |
from US $1.38 |
||
|
76183E
|
76183E
MR726497 CLIP,3RD SEAT |
MR726497 |
US $3.55 |
||
|
76186
|
76186
MR139592
BUSHING,RR SEAT
|
MR139592 |
— | ||
|
76191
|
76191
MU240146 BOLT, RR SEATWasher assembled,8x25 |
MU240146 |
US $2.07 |
||
|
76191B
|
76191B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82788
|
82788
MR706084
GARNISH,RR SEAT BACK LOCK CYLINDER
|
MR706084 |
— | ||
|
42 710
|
Lock cylinder & key
42 710
|
||||
