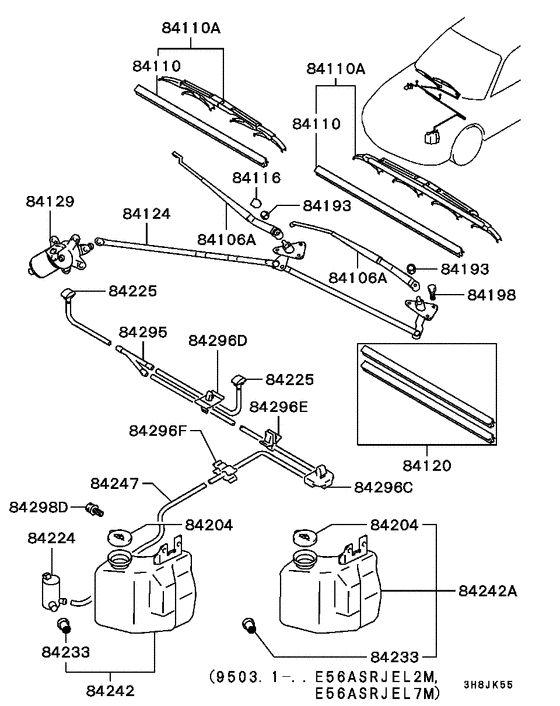

Windshield wiper & washer Diagram Mitsubishi GALANT
- Year
- 1993 - 1994
- Sales region
- MMNA/MMNA
- Note
- GS(DOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84106A
|
84106A
MR108823
ARM ASSY,WINDSHIELD WIPER
|
MR108823 |
— | ||
|
84106A
|
84106A
MR108827
ARM ASSY,WINDSHIELD WIPER
|
MR108827 |
— | ||
|
84110
|
84110
MB622852 BLADE, WINDSHIELD WIPER (475 mm)475 |
MB622852 |
US $15.05 |
||
|
84110
|
84110
MB623002 BLADE, WINDSHIELD WIPER |
MB623002 |
from US $8.42 |
||
|
84110A
|
84110A
MB622957
BLADE ASSY,WINDSHIELD WIPER
|
MB622957 |
— | ||
|
84110A
|
84110A
MR108825
BLADE ASSY,WINDSHIELD WIPER
|
MR108825 |
— | ||
|
84110A
|
84110A
MR155141 BLADE ASSY, RR WINDOW WIPER475 |
MR155141 |
US $48.84 |
||
|
84116
|
84116
MB821132 COVER, WINDSHIELD WIPER ARM HEAD |
MB821132 |
from US $2.83 |
||
|
84120
|
84120
MR124433
BLADE SET,WINDSHIELD WIPER
|
MR124433 |
— | ||
|
84124
|
84124
MB848436
LINK,WINDSHIELD WIPER
|
MB848436 |
— | ||
|
84129
|
84129
MB848431
MOTOR,WINDSHIELD WIPER
|
MB848431 |
— | ||
|
84193
|
84193
MS440074 NUT, PTO GEARSHIFT LINKCap,8 |
MS440074 |
US $4.38 |
||
|
84198
|
84198
MB400550 BOLT, FUEL LINEWasher assembled,6x16 |
MB400550 |
from US $1.68 |
||
|
84198
|
84198
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
84204
|
84204
MR108177
CAP,WINDSHIELD WASHER TANK FILLER
|
MR108177 |
— | ||
|
84224
|
84224
MB286961 MOTOR, WINDSHIELD WASHER |
MB286961 |
US $69.83 |
||
|
84225
|
84225
MB848562
NOZZLE, WINDSHIELD WASHER
|
MB848562 |
— | ||
|
84233
|
84233
MR221989
GASKET,WINDSHIELD WASHER TANK INLET
|
MR221989 |
— | ||
|
84242
|
84242
MR108176
TANK,WINDSHIELD WASHER
|
MR108176 |
— | ||
|
84247
|
84247
MB140830 TUBE, BODY WIRINGRubber,4x10000 |
MB140830 |
US $45.14 |
||
|
84295
|
84295
MB623192 JOINT, WINDSHIELD WASHER |
MB623192 |
from US $1.15 |
||
|
84296C
|
84296C
MB529507 CLIP, WINDSHIELD WASHER7x3 |
MB529507 |
US $4.24 |
||
|
84296D
|
84296D
MU481137 CLIP, WINDSHIELD WASHER6x2 |
MU481137 |
US $7.39 |
||
|
84296E
|
84296E
MU481009 CLIP, WINDSHIELD WASHER8 |
MU481009 |
US $2.60 |
||
|
84296F
|
84296F
MB344337
CLIP, FUEL TANK
|
MB344337 |
— | ||
|
84298D
|
84298D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
84298D
|
84298D
MS240180 BOLT, FR BUMPERWasher assembled,8x20 |
MS240180 |
from US $1.31 |
