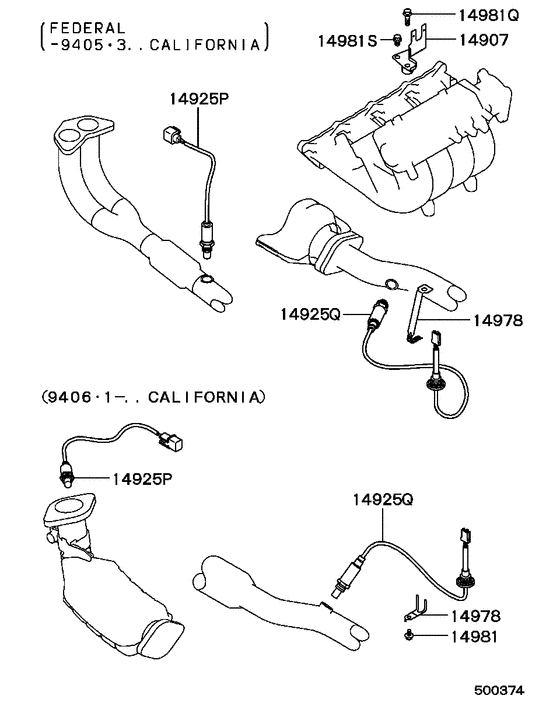

Electrical control (SOHC (OXYGEN SENSOR ETC.)) Diagram Mitsubishi GALANT
- Year
- 1995 - 1996
- Sales region
- MMNA/MMNA
- Note
- S(SOHC),4FA/T OKAZAKI-FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14907
|
14907
MD303243
BRACKET,EGR TEMPERATURE CONNECTOR
|
MD303243 |
— | ||
|
14925P
|
14925P
MD198529
SENSOR,ENG CONTROL OXYGEN
|
MD198529 |
— | ||
|
14925Q
|
14925Q
MD198535
SENSOR,ENG CONTROL OXYGEN
|
MD198535 |
— | ||
|
14978
|
14978
MD196749
CLIP,OXYGEN SENSOR
|
MD196749 |
— | ||
|
14981
|
14981
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
14981
|
14981
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
14981Q
|
14981Q
MF140027 BOLT, RESISTORFlange,8x25 |
MF140027 |
from US $0.84 |
||
|
14981S
|
14981S
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
