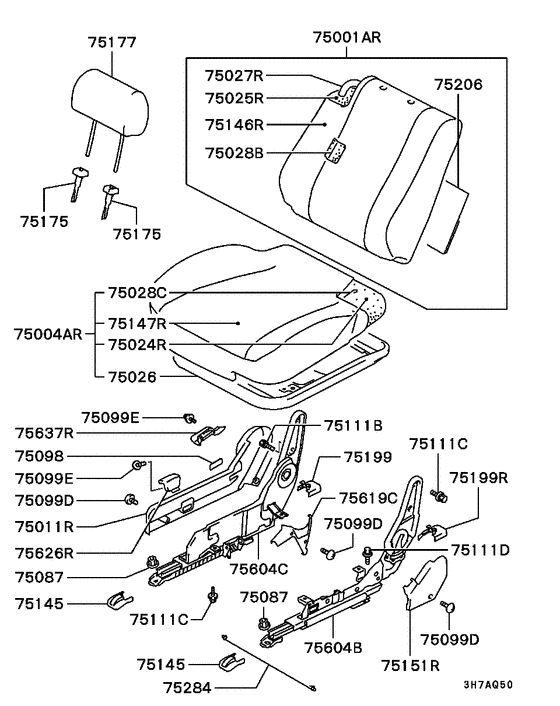

Front seat (RH -'96MODEL) Diagram Mitsubishi GALANT
- Year
- 1995 - 1996
- Sales region
- MMNA/MMNA
- Note
- S(SOHC),4FA/T OKAZAKI-FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR731797
BACK ASSY,FR SEAT,RH
|
MR731797 |
— | ||
|
75004AR
|
75004AR
MR731782
CUSHION ASSY,FR SEAT,RH
|
MR731782 |
— | ||
|
75004AR
|
75004AR
MR759233
CUSHION ASSY,FR SEAT,RH
|
MR759233 |
— | ||
|
75011R
|
75011R
MR733954
SHIELD,FR SEAT CUSHION,RH
|
MR733954 |
— | ||
|
75011R
|
75011R
MR733955
SHIELD,FR SEAT CUSHION,RH
|
MR733955 |
— | ||
|
75024R
|
75024R
MR140832
PAD,FR SEAT CUSHION,RH
|
MR140832 |
— | ||
|
75025R
|
75025R
MR140838
PAD,FR SEAT BACK,RH
|
MR140838 |
— | ||
|
75026
|
75026
MB940402
FRAME,FR SEAT CUSHION
|
MB940402 |
— | ||
|
75027R
|
75027R
MB940420
FRAME,FR SEAT BACK,RH
|
MB940420 |
— | ||
|
75028B
|
75028B
MR139601
WIRE, RR SEAT TRIMMING
|
MR139601 |
— | ||
|
75028B
|
75028B
MR140188
WIRE, FR SEAT TRIMMING
|
MR140188 |
— | ||
|
75028C
|
75028C
MR139601
WIRE, RR SEAT TRIMMING
|
MR139601 |
— | ||
|
75028C
|
75028C
MR140189 WIRE, FR SEAT TRIMMING2.0x400 |
MR140189 |
US $2.07 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75098
|
75098
MR733956
CAP,FR SEAT
|
MR733956 |
— | ||
|
75098
|
75098
MR733957
CAP,FR SEAT
|
MR733957 |
— | ||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099E
|
75099E
MF350983 SCREW, FR SEATWasher assembled,4x8 |
MF350983 |
US $1.33 |
||
|
75099E
|
75099E
MR306987
SCREW,FR SEAT
|
MR306987 |
— | ||
|
75111B
|
75111B
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $0.90 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
75111C
|
75111C
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
75111D
|
75111D
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75145
|
75145
MB963116 COVER, FR SEAT ANCHOR |
MB963116 |
US $6.07 |
||
|
75145
|
75145
MB976753 COVER, FR SEAT ANCHOR |
MB976753 |
US $5.77 |
||
|
75145
|
75145
MR766136
COVER,FR SEAT ANCHOR
|
MR766136 |
— | ||
|
75145
|
75145
MR766137
COVER,FR SEAT ANCHOR
|
MR766137 |
— | ||
|
75146R
|
75146R
MR731817
COVER,FR SEAT BACK,RH
|
MR731817 |
— | ||
|
75147R
|
75147R
MR731810
COVER,FR SEAT CUSHION,RH
|
MR731810 |
— | ||
|
75147R
|
75147R
MR759243
COVER,FR SEAT CUSHION,RH
|
MR759243 |
— | ||
|
75151R
|
75151R
MB783278 COVER, FR SEAT HINGE, RH |
MB783278 |
US $13.62 |
||
|
75175
|
75175
MR177501
GUIDE,FR SEAT HEADREST
|
MR177501 |
— | ||
|
75175
|
75175
MR177502
GUIDE,FR SEAT HEADREST
|
MR177502 |
— | ||
|
75175
|
75175
MR177504
GUIDE,FR SEAT HEADREST
|
MR177504 |
— | ||
|
75175
|
75175
MR177505
GUIDE,FR SEAT HEADREST
|
MR177505 |
— | ||
|
75175
|
75175
MR766198
GUIDE,FR SEAT HEADREST
|
MR766198 |
— | ||
|
75175
|
75175
MR766199
GUIDE,FR SEAT HEADREST
|
MR766199 |
— | ||
|
75175
|
75175
MR766200
GUIDE,FR SEAT HEADREST
|
MR766200 |
— | ||
|
75175
|
75175
MR766201
GUIDE,FR SEAT HEADREST
|
MR766201 |
— | ||
|
75177
|
75177
MR731892
HEADREST,FR SEAT
|
MR731892 |
— | ||
|
75199
|
75199
MB963117 COVER, FR SEAT ANCHOR, RR |
MB963117 |
US $6.36 |
||
|
75199
|
75199
MB976755 COVER, FR SEAT ANCHOR, RR |
MB976755 |
US $5.77 |
||
|
75199
|
75199
MR763064
COVER,FR SEAT ANCHOR,RR
|
MR763064 |
— | ||
|
75199
|
75199
MR766138
COVER,FR SEAT ANCHOR,RR
|
MR766138 |
— | ||
|
75199R
|
75199R
MB902875 COVER, FR SEAT ANCHOR, RR RH |
MB902875 |
US $5.77 |
||
|
75199R
|
75199R
MR722001 COVER, FR SEAT ANCHOR, RR RH |
MR722001 |
US $5.77 |
||
|
75199R
|
75199R
MR766145
COVER,FR SEAT ANCHOR,RR RH
|
MR766145 |
— | ||
|
75199R
|
75199R
MR766146
COVER,FR SEAT ANCHOR,RR RH
|
MR766146 |
— | ||
|
75284
|
75284
MR140829
WIRE,FR SEAT
|
MR140829 |
— | ||
|
75604B
|
75604B
MB940400
ADJUSTER,FR SEAT SLIDE
|
MB940400 |
— | ||
|
75604C
|
75604C
MB916498 ADJUSTER, FR SEAT SLIDE |
MB916498 |
US $141.34 |
||
|
75626R
|
75626R
MR177516
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR177516 |
— | ||
|
75626R
|
75626R
MR177517
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR177517 |
— | ||
|
75626R
|
75626R
MR766208
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR766208 |
— | ||
|
75626R
|
75626R
MR766209
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR766209 |
— | ||
|
75637R
|
75637R
MR774375
LEVER,FR SEAT RECLINING ADJUSTER,RH
|
MR774375 |
— | ||
|
75637R
|
75637R
MR774376
LEVER,FR SEAT RECLINING ADJUSTER,RH
|
MR774376 |
— |
