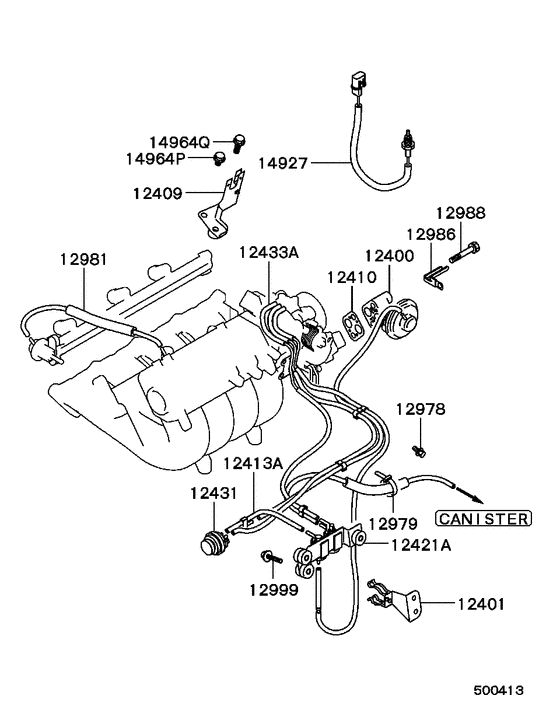

Emission control (-9706.3 WITHOUT FCC) Diagram Mitsubishi GALANT
- Year
- 1995 - 1996
- Sales region
- MMNA/MMNA
- Note
- S(SOHC),4FA/T OKAZAKI-CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD188857
VALVE,EGR
|
MD188857 |
— | ||
|
12400
|
12400
MD193660
VALVE,EGR
|
MD193660 |
— | ||
|
12401
|
12401
MR127032
BRACKET,EMISSION CONTROL EQUIP
|
MR127032 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MR239763
HOSE ASSY,EMISSION VACUUM CONTROL
|
MR239763 |
— | ||
|
12421A
|
12421A
MR127233
VALVE ASSY,EMISSION SOLENOID
|
MR127233 |
— | ||
|
12421A
|
12421A
MR160375
VALVE ASSY,EMISSION SOLENOID
|
MR160375 |
— | ||
|
12421A
|
12421A
MR187335
VALVE ASSY,EMISSION SOLENOID
|
MR187335 |
— | ||
|
12431
|
12431
MR126976 VALVE, EMISSION VACUUM CONTROL |
MR126976 |
US $75.48 |
||
|
12433A
|
12433A
MR127421
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR127421 |
— | ||
|
12433A
|
12433A
MR239909
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR239909 |
— | ||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12986
|
12986
MB043630 CLIP, CRUISE CONTROL EQUIP8.5-40/55 |
MB043630 |
US $2.96 |
||
| replacement | |||||
|
12986
|
12986
MB305867 CLIP, SPEEDOMETER CABLE8.5-50/65 |
MB305867 |
US $4.65 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $0.90 |
||
|
12999
|
12999
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
|
12999
|
12999
MS240581 BOLT, BRAKE FLUID LINEWasher assembled,6x16 |
MS240581 |
US $2.60 |
||
|
14927
|
14927
MD158749
SENSOR,EXHAUST HIGH TEMPERATURE
|
MD158749 |
— | ||
|
14964P
|
14964P
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
14964Q
|
14964Q
MF140027 BOLT, RESISTORFlange,8x25 |
MF140027 |
from US $0.84 |
||
