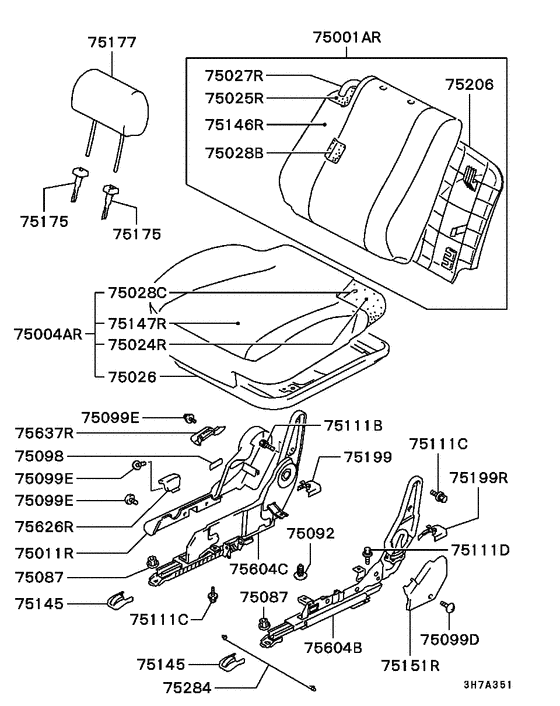

Front seat (RH '97MODEL-) Diagram Mitsubishi GALANT
- Year
- 1993 - 1998
- Sales region
- MMNA/MMNA
- Note
- S/DE(SOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- S/DE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR718880
BACK ASSY,FR SEAT,RH
|
MR718880 |
— | ||
|
75001AR
|
75001AR
MR718881
BACK ASSY,FR SEAT,RH
|
MR718881 |
— | ||
|
75001AR
|
75001AR
MR731797
BACK ASSY,FR SEAT,RH
|
MR731797 |
— | ||
|
75001AR
|
75001AR
MR749198
BACK ASSY,FR SEAT,RH
|
MR749198 |
— | ||
|
75001AR
|
75001AR
MR766157
BACK ASSY,FR SEAT,RH
|
MR766157 |
— | ||
|
75001AR
|
75001AR
MR766158
BACK ASSY,FR SEAT,RH
|
MR766158 |
— | ||
|
75004AR
|
75004AR
MR718866
CUSHION ASSY,FR SEAT,RH
|
MR718866 |
— | ||
|
75004AR
|
75004AR
MR718867
CUSHION ASSY,FR SEAT,RH
|
MR718867 |
— | ||
|
75004AR
|
75004AR
MR731782
CUSHION ASSY,FR SEAT,RH
|
MR731782 |
— | ||
|
75004AR
|
75004AR
MR731783
CUSHION ASSY,FR SEAT,RH
|
MR731783 |
— | ||
|
75004AR
|
75004AR
MR749191
CUSHION ASSY,FR SEAT,RH
|
MR749191 |
— | ||
|
75004AR
|
75004AR
MR759233
CUSHION ASSY,FR SEAT,RH
|
MR759233 |
— | ||
|
75004AR
|
75004AR
MR766153
CUSHION ASSY,FR SEAT,RH
|
MR766153 |
— | ||
|
75004AR
|
75004AR
MR766154
CUSHION ASSY,FR SEAT,RH
|
MR766154 |
— | ||
|
75011R
|
75011R
MR177980
SHIELD,FR SEAT CUSHION,RH
|
MR177980 |
— | ||
|
75011R
|
75011R
MR733954
SHIELD,FR SEAT CUSHION,RH
|
MR733954 |
— | ||
|
75011R
|
75011R
MR733955
SHIELD,FR SEAT CUSHION,RH
|
MR733955 |
— | ||
|
75011R
|
75011R
MR749265
SHIELD,FR SEAT CUSHION,RH
|
MR749265 |
— | ||
|
75011R
|
75011R
MR766232
SHIELD,FR SEAT CUSHION,RH
|
MR766232 |
— | ||
|
75011R
|
75011R
MR766233
SHIELD,FR SEAT CUSHION,RH
|
MR766233 |
— | ||
|
75024R
|
75024R
MR140832
PAD,FR SEAT CUSHION,RH
|
MR140832 |
— | ||
|
75025R
|
75025R
MR140838
PAD,FR SEAT BACK,RH
|
MR140838 |
— | ||
|
75026
|
75026
MB940402
FRAME,FR SEAT CUSHION
|
MB940402 |
— | ||
|
75027R
|
75027R
MB940420
FRAME,FR SEAT BACK,RH
|
MB940420 |
— | ||
|
75028B
|
75028B
MR139601
WIRE, RR SEAT TRIMMING
|
MR139601 |
— | ||
|
75028B
|
75028B
MR140188
WIRE, FR SEAT TRIMMING
|
MR140188 |
— | ||
|
75028C
|
75028C
MR139601
WIRE, RR SEAT TRIMMING
|
MR139601 |
— | ||
|
75028C
|
75028C
MR140189 WIRE, FR SEAT TRIMMING2.0x400 |
MR140189 |
US $2.07 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75092
|
75092
MR726497 CLIP,3RD SEAT |
MR726497 |
US $3.55 |
||
|
75098
|
75098
MR177981
CAP,FR SEAT
|
MR177981 |
— | ||
|
75098
|
75098
MR733956
CAP,FR SEAT
|
MR733956 |
— | ||
|
75098
|
75098
MR733957
CAP,FR SEAT
|
MR733957 |
— | ||
|
75098
|
75098
MR749266
CAP,FR SEAT
|
MR749266 |
— | ||
|
75098
|
75098
MR766234
CAP,FR SEAT
|
MR766234 |
— | ||
|
75098
|
75098
MR766235
CAP,FR SEAT
|
MR766235 |
— | ||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099E
|
75099E
MF350983 SCREW, FR SEATWasher assembled,4x8 |
MF350983 |
US $1.33 |
||
|
75099E
|
75099E
MR306987
SCREW,FR SEAT
|
MR306987 |
— | ||
|
75111B
|
75111B
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $0.90 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
75111C
|
75111C
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
75111D
|
75111D
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75145
|
75145
MB720760 COVER, FR SEAT ANCHOR |
MB720760 |
US $4.59 |
||
|
75145
|
75145
MB963116 COVER, FR SEAT ANCHOR |
MB963116 |
US $6.07 |
||
|
75145
|
75145
MB976753 COVER, FR SEAT ANCHOR |
MB976753 |
US $5.77 |
||
|
75145
|
75145
MR766136
COVER,FR SEAT ANCHOR
|
MR766136 |
— | ||
|
75145
|
75145
MR766137
COVER,FR SEAT ANCHOR
|
MR766137 |
— | ||
|
75146R
|
75146R
MR718902
COVER,FR SEAT BACK,RH
|
MR718902 |
— | ||
|
75146R
|
75146R
MR718903
COVER,FR SEAT BACK,RH
|
MR718903 |
— | ||
|
75146R
|
75146R
MR731817
COVER,FR SEAT BACK,RH
|
MR731817 |
— | ||
|
75146R
|
75146R
MR749212
COVER,FR SEAT BACK,RH
|
MR749212 |
— | ||
|
75146R
|
75146R
MR763314
COVER,FR SEAT BACK,RH
|
MR763314 |
— | ||
|
75146R
|
75146R
MR766164
COVER,FR SEAT BACK,RH
|
MR766164 |
— | ||
|
75147R
|
75147R
MR718894
COVER,FR SEAT CUSHION,RH
|
MR718894 |
— | ||
|
75147R
|
75147R
MR718895
COVER,FR SEAT CUSHION,RH
|
MR718895 |
— | ||
|
75147R
|
75147R
MR731810
COVER,FR SEAT CUSHION,RH
|
MR731810 |
— | ||
|
75147R
|
75147R
MR731811
COVER,FR SEAT CUSHION,RH
|
MR731811 |
— | ||
|
75147R
|
75147R
MR749205
COVER,FR SEAT CUSHION,RH
|
MR749205 |
— | ||
|
75147R
|
75147R
MR759243
COVER,FR SEAT CUSHION,RH
|
MR759243 |
— | ||
|
75147R
|
75147R
MR766161
COVER,FR SEAT CUSHION,RH
|
MR766161 |
— | ||
|
75147R
|
75147R
MR766162
COVER,FR SEAT CUSHION,RH
|
MR766162 |
— | ||
|
75151R
|
75151R
MB783278 COVER, FR SEAT HINGE, RH |
MB783278 |
US $13.62 |
||
|
75175
|
75175
MR177500
GUIDE,FR SEAT HEADREST
|
MR177500 |
— | ||
|
75175
|
75175
MR177501
GUIDE,FR SEAT HEADREST
|
MR177501 |
— | ||
|
75175
|
75175
MR177502
GUIDE,FR SEAT HEADREST
|
MR177502 |
— | ||
|
75175
|
75175
MR177503
GUIDE,FR SEAT HEADREST
|
MR177503 |
— | ||
|
75175
|
75175
MR177504
GUIDE,FR SEAT HEADREST
|
MR177504 |
— | ||
|
75175
|
75175
MR177505
GUIDE,FR SEAT HEADREST
|
MR177505 |
— | ||
|
75175
|
75175
MR749245
GUIDE,FR SEAT HEADREST
|
MR749245 |
— | ||
|
75175
|
75175
MR749246
GUIDE,FR SEAT HEADREST
|
MR749246 |
— | ||
|
75175
|
75175
MR766198
GUIDE,FR SEAT HEADREST
|
MR766198 |
— | ||
|
75175
|
75175
MR766199
GUIDE,FR SEAT HEADREST
|
MR766199 |
— | ||
|
75175
|
75175
MR766200
GUIDE,FR SEAT HEADREST
|
MR766200 |
— | ||
|
75175
|
75175
MR766201
GUIDE,FR SEAT HEADREST
|
MR766201 |
— | ||
|
75177
|
75177
MR711762
HEADREST,FR SEAT
|
MR711762 |
— | ||
|
75177
|
75177
MR711763
HEADREST,FR SEAT
|
MR711763 |
— | ||
|
75177
|
75177
MR731892
HEADREST,FR SEAT
|
MR731892 |
— | ||
|
75177
|
75177
MR749261
HEADREST,FR SEAT
|
MR749261 |
— | ||
|
75177
|
75177
MR766120
HEADREST,FR SEAT
|
MR766120 |
— | ||
|
75177
|
75177
MR766121
HEADREST,FR SEAT
|
MR766121 |
— | ||
|
75199
|
75199
MB720761 COVER, FR SEAT ANCHOR, RR |
MB720761 |
US $4.59 |
||
|
75199
|
75199
MB963117 COVER, FR SEAT ANCHOR, RR |
MB963117 |
US $6.36 |
||
|
75199
|
75199
MB976755 COVER, FR SEAT ANCHOR, RR |
MB976755 |
US $5.77 |
||
|
75199
|
75199
MR763064
COVER,FR SEAT ANCHOR,RR
|
MR763064 |
— | ||
|
75199
|
75199
MR766138
COVER,FR SEAT ANCHOR,RR
|
MR766138 |
— | ||
|
75199R
|
75199R
MB902875 COVER, FR SEAT ANCHOR, RR RH |
MB902875 |
US $5.77 |
||
|
75199R
|
75199R
MB967909 COVER, FR SEAT ANCHOR, RR RH |
MB967909 |
US $6.81 |
||
|
75199R
|
75199R
MR722001 COVER, FR SEAT ANCHOR, RR RH |
MR722001 |
US $5.77 |
||
|
75199R
|
75199R
MR766145
COVER,FR SEAT ANCHOR,RR RH
|
MR766145 |
— | ||
|
75199R
|
75199R
MR766146
COVER,FR SEAT ANCHOR,RR RH
|
MR766146 |
— | ||
|
75284
|
75284
MR140829
WIRE,FR SEAT
|
MR140829 |
— | ||
|
75604B
|
75604B
MB940400
ADJUSTER,FR SEAT SLIDE
|
MB940400 |
— | ||
|
75604C
|
75604C
MB916498 ADJUSTER, FR SEAT SLIDE |
MB916498 |
US $141.34 |
||
|
75604C
|
75604C
MR139090
ADJUSTER,FR SEAT SLIDE
|
MR139090 |
— | ||
|
75626R
|
75626R
MR177515
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR177515 |
— | ||
|
75626R
|
75626R
MR177516
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR177516 |
— | ||
|
75626R
|
75626R
MR177517
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR177517 |
— | ||
|
75626R
|
75626R
MR749250
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR749250 |
— | ||
|
75626R
|
75626R
MR766208
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR766208 |
— | ||
|
75626R
|
75626R
MR766209
KNOB,FR SEAT SLIDE ADJUSTER,RH
|
MR766209 |
— | ||
|
75637R
|
75637R
MR774375
LEVER,FR SEAT RECLINING ADJUSTER,RH
|
MR774375 |
— | ||
|
75637R
|
75637R
MR774376
LEVER,FR SEAT RECLINING ADJUSTER,RH
|
MR774376 |
— |
