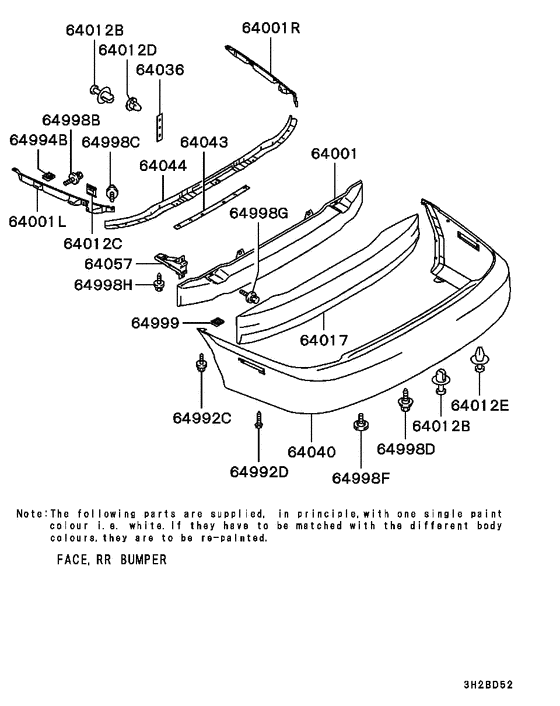

Rear bumper & support Diagram Mitsubishi GALANT
- Year
- 1993 - 1998
- Sales region
- MMNA/MMNA
- Note
- LS(SOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64001
|
64001
MB887547
REINFORCEMENT,RR BUMPER
|
MB887547 |
— | ||
|
64001L
|
64001L
MB888875
REINFORCEMENT,RR BUMPER,LH
|
MB888875 |
— | ||
|
64001R
|
64001R
MB888876
REINFORCEMENT,RR BUMPER,RH
|
MB888876 |
— | ||
|
64012B
|
64012B
MB888869
CLIP, FR BUMPER
|
MB888869 |
— | ||
|
64012B
|
64012B
MR138807 CLIP, FR BUMPER8x25.5 |
MR138807 |
from US $1.76 |
||
|
64012C
|
64012C
MB325299 CLIP, FR BUMPER0.3 |
MB325299 |
US $4.24 |
||
|
64012D
|
64012D
MB406894 CLIP, FR BUMPER8 |
MB406894 |
US $2.74 |
||
|
64012E
|
64012E
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.48 |
||
|
64017
|
64017
MB887549
CORE,RR BUMPER
|
MB887549 |
— | ||
|
64036
|
64036
MB934538
PLATE,RR BUMPER FACE SUPPORT
|
MB934538 |
— | ||
|
64040
|
64040
MB959479
FACE,RR BUMPER
|
MB959479 |
— | ||
|
64043
|
64043
MB888343 PLATE, RR BUMPER, LWR |
MB888343 |
US $38.99 |
||
|
64044
|
64044
MB888317
PLATE,RR BUMPER,UPR
|
MB888317 |
— | ||
|
64057
|
64057
MB913817 STAY, RR BUMPER |
MB913817 |
US $150.96 |
||
|
64992C
|
64992C
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
64992D
|
64992D
MF453045 SCREW, FUEL FILLER LID LOCKINGWasher assembled,6x12 |
MF453045 |
US $2.19 |
||
|
64994B
|
64994B
MR118546
NUT,RR BUMPER
|
MR118546 |
— | ||
|
64998B
|
64998B
MB612553 BOLT, RR BUMPERWasher assembled,6x16 |
MB612553 |
from US $1.74 |
||
|
64998C
|
64998C
MS240179 BOLT, FR BUMPERWasher assembled,6x16 |
MS240179 |
from US $0.88 |
||
|
64998D
|
64998D
MU140009 BOLT, FR BUMPERFlange,6x20 |
MU140009 |
from US $1.23 |
||
|
64998F
|
64998F
MB344632 BOLT, FR BUMPERFlange,6x14 |
MB344632 |
US $4.79 |
||
|
64998F
|
64998F
MS240155 BOLT, WINDSHIELDWasher assembled,6x16 |
MS240155 |
from US $0.99 |
||
|
64998F
|
64998F
MU101019 BOLT, FR BUMPERShoulder,6x18 |
MU101019 |
US $5.06 |
||
|
64998G
|
64998G
MS240127 BOLT, STEERING COLUMNWasher assembled,8x30 |
MS240127 |
from US $0.92 |
||
|
64998G
|
64998G
MS240176 BOLT, FR BUMPERWasher assembled,8x30 |
MS240176 |
from US $1.05 |
||
|
64998H
|
64998H
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
64998H
|
64998H
MU240077 BOLT,RR BUMPER |
MU240077 |
US $3.40 |
||
|
64998H
|
64998H
MU240156 BOLT, FR BUMPERWasher assembled,10x25 |
MU240156 |
US $3.70 |
||
|
64999
|
64999
MB481588 GROMMET, FR BUMPERScrew .,6 |
MB481588 |
from US $2.07 |
